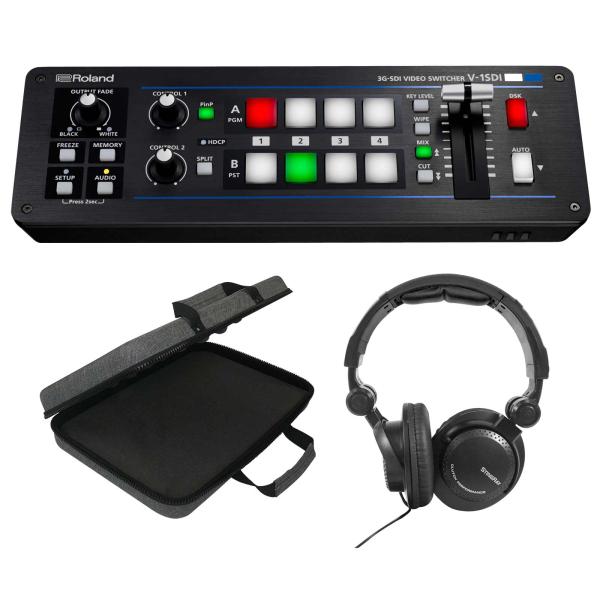

Roland V-1SDI 3G-SDI Video Switcher with DJ Headphones Package
Reg.
$1,479.89
Now
$1,292.40
You save
$187.49
Reg.
You save
Backordered
Expected October 31, 2026
Key Highlights
- Professional, studio-quality performance.
- Wide frequency response for critical monitoring.
- Comfortable padded headband and earpads.
- Collapsible earcups.
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|
V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players.
Compact and portable, the V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.
With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.
Roland V-1SDI 3G-SDI Video Switcher Features:
- Support for SDI and HDMI cameras, smartphones, tablet computers and PCs etc.
- Easy to operate with hardware controls.
- Compact size.
- Supports up to Full HD 1080p.
- 3 x 3G-SDI and 2 x HDMI* inputs.
- 2 x 3G-SDI and 1 x HDMI* output.
- Quad input multi-viewer with source labelling and audio metering.
- Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
- Full 14 channel audio mixer included.
- Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection.
The Clutch Performance Foldable DJ Headphone mixes comfort, quality, and design to make it one of our most popular dual cup headphones. Includes comfort cushion ear pads, durable frame and pivot points, and a sleek stealth matte black finish. The Stingray will impress you with bass performance and clear crisp highs through the closed-back design. The adjustable head band and pivot cups will adapt for a snug fit for sound isolation and a true listening experience during the playback of music. When not in use, easily fold and store your Stingray Headphones for the next experience.
Video
Video Processing:
4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors
SDI INPUT 1--3: BNC x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI INPUT 3--4: Type A (19 pins) x 2
* HDCP Supported
* INPUT 3: SDI or HDMI selected.
Output Connectors
SDI OUT PGM: BNC x 1
SDI OUT PVW: BNC x 1
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI OUT MULTI-VIEW: Type A (19 pins) x 1
* HDCP Supported
Input Formats
SDI INPUT 1-3 Conforms to SMPTE 296M, SMPTE 274M
HDMI INPUT 3
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p)
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
HDMI INPUT 4
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* 1920 x 1200/60 Hz: Reduced blanking.
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
Output formats
SDI OUT(PGM/PVW) Conforms to SMPTE 296M, 274M
HDMI OUT MULTI-VIEW
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i SMPTE 274M(FORMAT switch = 1080i)
1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080p)
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types)
Composition: PinP, SPLIT, QUAD, DSK (Luminance Key, Chroma Key)
Audio
Audio Processing
Sampling rate: 24 bits/48 kHz
input Connectors
Digital: SDI INPUT 1--3 (BNC) x 3 SMPTE 299M
HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2
Analog: AUDIO IN (RCA phono type)
MIC (Stereo mini type, plug-in power supported)
Output Connectors
Digital: SDI OUT PGM: BNC x 1 SMPTE 299M
SDI OUT PVW: BNC x 1 SMPTE 299M
HDMI OUT MULTI-VIEW: Type A (19 pins) x 1
Analog: AUDIO OUT (RCA phono type)
PHONES (Stereo mini type)
Input Level
AUDIO IN: -10 dBu (Maximum: +8 dBu)
MIC: -41-- -13 dBu (Maximum: -1 dBu)
Input Impedance
AUDIO IN: 15 k ohms
MIC: 10 k ohms
Output Level
AUDIO OUT: -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
AUDIO OUT: 1 k ohm
PHONES: 10 ohms
Audio Effects
EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
Others
Other Connectors
USB: B Type (for remote control from PC)
RS-232: DB-9 type
Other Functions
MEMORY (8 types)
FREEZE (input video captured)
OUTPUT FADE (Audio, Video: WHITE or BLACK)
Power Supply
AC Adaptor
Current Draw
2.1 A
Power Consumption
25 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
313 (W) x 108 (D) x 59 (H) mm
12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inches
Weight (excluding AC adaptor)
1.2 kg
2 lbs 10-2/5 oz
Accessories
Owner's manual
AC adaptor
Power cord
Cord hook
Clutch Stingray Performance DJ Headphone Specifications:
Type: Closed
Impedance: 32 (Omega Symbol) + 15%/at 1KHz
Rate: input power: 15mW
Max input power: 30mW
SPL: 115dB+3sB / at 1KHz
Distortion rate: No more than 5% at 1KHz
Driver: 50mm
Cord Length: 3m
Plug: 3.5mm
This Package Includes:
(1) Roland V-1SDI 3G-SDI Video Switcher
(1) Set of Clutch Stingray Performance Headphone
(1) 1/8" to 1/4" TRS Adapter
(1) Clutch CL-E171103GY Premium Multipurpose EVA Case with Cushion 17"W x 11"H x 3"L
