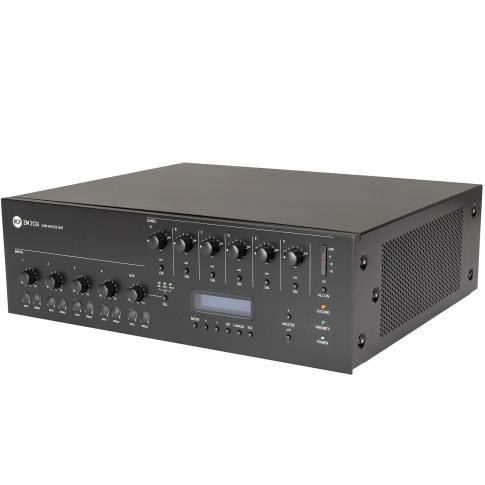

RCF ZM 2124 6 Zone Digital Mixer/Amplifier Master Unit
SKU
ZM2124
Item Backordered
Questions? Call 1-800-355-7746 or Chat below
Free Shipping on most orders with minimum purchase of $50 or more for a limited time.
Ground shipments only in the lower 48 contiguous United States.
Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.
Any questions, please call 1-800-355-7746 during normal business hours.
Offer subject to change or termination without notice. Not responsible for typographical errors.
The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.
I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700
I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100
RCF ZM 2124 Mixer/Amplifier Master Unit Features:
- Double-bus system architecture.
- System of announcements able to receive the signal of up to 6 devices with selective call connected in cascade, with aux input and general emergency input with priority on the primary bus.
- 4 inputs (2 microphones and 2 universal), 3 aux inputs selectable with independent volume and tone controls and configurable priority on the secondary bus.
- 240W constant voltage power amplifier, with VU-meter for output signal level and overload indicator.
- Input for an external auxiliary amplifier and output terminals to independently manage the primary and secondary buses.
- Volume attenuators and selectors with indicators, useful for sending or not sending the secondary bus program (eg music) to each of the 6 speaker output lines.
- Connection of up to eight ZE 2200 expansion units from 6 zones, thus enabling the creation of ad systems with over 50 zones.
- Remote control of the dedicated wall-mountable system, which allows managing the main controls available on the master unit.
- Priority indicator to signal the triggering of any system priority circuit.
- Selectable tone generator available for announcements.
RCF ZM 2124 Specifications:
System specifications
Number of zones managed: 54
Integrated amplifier: Yes
Max. Number of console: 6
Number of console buses: 1
Max. Number of units that can be connected: 9
Communication bus: Serial
Connection cables: FTP CAT 5
Amplifier specifications
Number of channels: 6
Power output (at 100 V): 240 W RMS
Frequency response (-3 dB): 50 Hz ÷ 20 kHz
Noise / signal speed ("A" weighted): > 75 dB dB
Distortion (THD + N) at rated power of 1 kHz: <1 %
Input section
Total number of entries: 9
Balanced: 6
Unbalanced: 3
Mono: 6
Stereo: 3
Mic inputs: 2
Mic connectors: XLR
Phantom Mic: 17.5 V DC
Line inputs: 2
Line connectors: RCA
Mic + Line Inputs: 2
Mic + Line Connectors: XLR
Phantom Mic + Line: 17.5 V DC
Paging inputs: 3
Paging connectors: RCA, RJ45
Paging command: Contact
Multi-purpose inputs (GPI): 10
Programmable GPIs: Yes
Input / Output Section
Signal output number: 1
Signal Output Connectors: XLR
Power output connectors: Euroblock
Multi-purpose exits (GPO): 10
Processing
Tone controls: Yes
Controls
Configuration: Front panel
Priority: Yes
Music on hold: Yes
Trill tone: Yes
Protections:
Cooling: Convection
Supply
Operating voltage: 220-240 / 115 V ~ 50 / 60HzV ~ Hz
Voltage selection: External
DC power: Yes
DC power value: 24 V
Power consumption: 720 W
Compliance with standards
CE marking: Yes
Physical specifications
Cabinet / case material: Metal
Color: Black
Rack mounting: 19", 3U
Dimensions
Depth: 365 mm / 14.37 inches
Height: 133 mm / 5.24 inches
Weight: 16.4 kg / 36.16 lbs
Width: 430 mm / 16.93 inches
Shipping informations
Packing depth: 490 mm / 19.29 inches
Packing height: 296 mm / 11.65 inches
Packaging Weight: 18.8 kg / 41.45 lbs
Packing width: 490 mm / 19.29 inches
(1) RCF ZM2124 6 Zone Digital Mixer/Amplifier Master Unit
