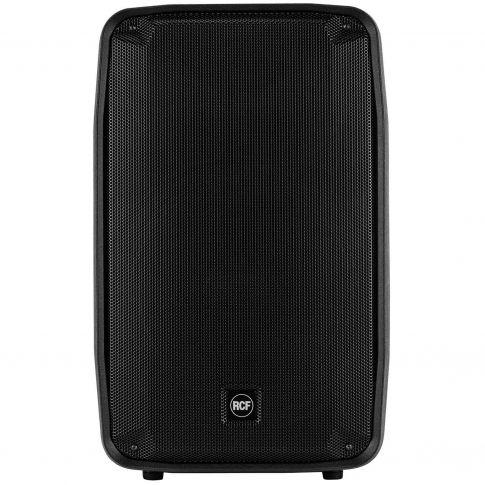

RCF HD35-A 1400W 2-way 15" Powered Speaker

SKU
HD35-A
$1,199.00
In Stock - Almost Gone

Most orders placed by 2pm ET ship same day (business days)

Only at IDJNOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

5000+ Reviews

6000+ Reviews

95%+5-star reviews

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

The titanium dome, 3.0" voice coil neodymium compression driver offers unique vocal clarity and sound projection on the HD 35-A. The 15" woofer offers an extremely linear response and a precise, deep low-frequency control. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalization, FiRPHASE, soft limiting, and speaker protection.The ND840 Compression Driver in pure Titanium with a 3" voice coil allows a crossover point at only 800 Hz. This allows a better impulse response, fast decay and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability. The voice coil features a high-temperature kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm's suspension has been designed following extensive studies aimed at minimizing distortion and extending low frequency range. The low-frequency transducer is a high-power 15" woofer with a 3.0" voice coil, delivering a punchy bass. Reproduction of the mid-bass frequencies is accurate, transparent and free from distortion.

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminum structure which not only stabilizes the amplifier during transportation but also helps the fan-less heat dissipation. All the D Line amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight. D LINE cabinets are molded with a special polypropylene composite material designed to dampen vibrations even at maximum volume settings. From molding to the final texture, D-LINE offers maximum reliability and strength for intensive use on the road. The advanced vented architecture offer high efficiency and low distortion. The speaker is equipped with a top handle and two side handles with rubber handgrips for greater portability. The multi-purpose cabinet shape will allow every D-LINE model to be used in the standard configuration as well as in stage monitor mode. Two M10 and three M6 threaded inserts available for optional mounting hardware. This makes the speakers perfect for use in mounted or flown situations. When used on top of a SUB Series the HD speaker becomes an incredibly powerful PA system.

RCF HD35-A Speaker Features:

  • 132 dB Max SPL.
  • 1400 Watts 2-way peak power.
  • DSP Processing with FiRPHASE.
  • 800 Hz crossover point for perfect vocal reproduction.
  • 1.4" Titanium Compression Driver, 3.0" v.c. Neodimium.
  • 15" Woofer, high power.
  • 90°x60°, wide dispersion constant directivity horn.
  • Silent Fanless Class-D Amplifier.

RCF HD35-A Specifications:
Acoustical specifications
Frequency Response: 45 Hz ÷ 20000 Hz
Max SPL @ 1m: 132 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 60°

Transducers
Compression Driver: 1.4", 3.0" v.c
Woofer: 15", 3.0" v.c

Input/Output section
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu

Processor section
Crossover frequencies: 800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, Mic/Line

Power section
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: Powercon IN/OUT

Standard compliance
CE marking: Yes

Physical specifications
Cabinet/Case Material: PP Composite
Hardware: 1 x M10 top, 1 x M10 bottom, 2 x M10 side
Handles: 1 Top, 2 Side
Pole mount/Cap: Yes
Grille: Steel
Color: Black

Size
Height: 714 mm / 28.11 inches
Width: 442 mm / 17.4 inches
Depth: 397 mm / 15.63 inches
Weight: 22 kg / 48.5 lbs

Shipping information
Package Height: 750 mm / 29.53 inches
Package Width: 440 mm / 17.32 inches
Package Depth: 480 mm / 18.9 inches
Package Weight: 24.5 kg / 54.01 lbs

Each HD35-A Retail Box Includes:
(1) RCF HD35-A 1400W 2-way 15" Powered Speaker

Ratings & Reviews

Be the first to review this product
