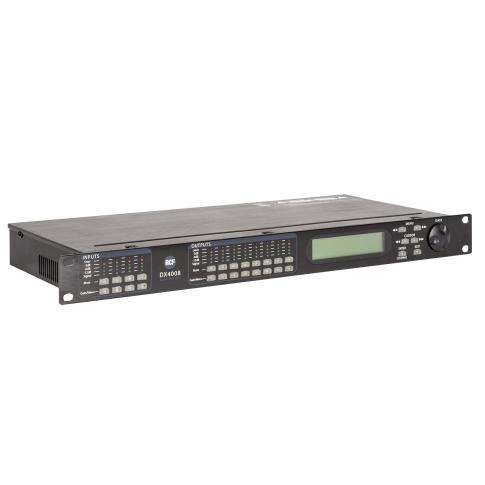

RCF DX-4008 Digital Speaker Processor (4 IN / 8 OUT)
SKU
DX-4008
Item Backordered
Questions? Call 1-800-355-7746 or Chat below
Free Shipping on most orders with minimum purchase of $50 or more for a limited time.
Ground shipments only in the lower 48 contiguous United States.
Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.
Any questions, please call 1-800-355-7746 during normal business hours.
Offer subject to change or termination without notice. Not responsible for typographical errors.
The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.
I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700
I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100
RCF DX-4008 Digital Speaker Processor Features:
- The DX 4008 is a complete 4 input - 8 output digital loudspeaker management system designed for the touring or fixed sound installation markets.
- Sampling rate can be set to 96kHz.
- Precise frequency control is achieved with its 1 Hz resolution.
- Inputs and outputs can be routed in multiple configuration to meet any requirements.
- The DX 4008 is shipped with a special PC Graphic User Interface (GUI) application - XLink.
- XLink gives the user an option to control the DX 4008 unit from a remote PC via the RS232 serial communication link.
- The GUI application makes much easier control and monitor the device, allowing the user to get the whole picture on one screen.
- Programs can be recalled and stored from/to PC's hard drive, thus expanding the storage to become virtually limitless.
- 32-bit (40-bit extended) floating point DSP.
- High Performance 24-bit A/D Converters.
- 1 Hz Frequency Resolution.
- 6 Parametric Equalizers for each Input and Output.
- Multiple Crossover types with Full Function Limiters.
- Precise Level, Polarity and Delay.
- Software upgrade via PC.
- Individual Channel Buttons with Linking capability.
- 4-Line x 26 Character Backlit LCD Display.
- Full 5-segment LED's on every Input and Output.
- Storage of up to 30 Program Setups.
- Multiple Levels of Security Locks.
- RS-232 Interface for PC Control and Configuration.
RCF DX-4008 Specifications:
Audio performance
Common Mode Rejection Ratio (50 Hz to 10 kHz): >60 dB
Crosstalk: <-100 dB
Distortion (THD+N) @ 1 kHz nominal power: <0.001 %
Dynamic range: >115 dB
Frequency Response (-3dB): 20 Hz ÷ 20 kHz
Digital audio performance
A/D - D/A converters (bit): 24
Propagation delay (ms): 3
Resolution (dB): 40
Sampling rate (kHz): 96
Input section
Total number of inputs: 4
Balanced: 4
Mono: 4
Line inputs: 4
Line connectors: XLR
Output section
Signal output number: 8
Signal output connectors: XLR
Processing
DSP: Yes
EQ Filters: Yes
Delay: Yes
Tone controls: Yes
High-pass filter: 20 ÷ 20000 Hz
Crossover: 20 ÷ 20000 Hz
Controls
Configuration: Front panel, PC Software
Number of programs/presets: 30
Protocols for system integration: ASCII
Protections
Cooling: Convection
Fuses: Yes
Power requirement
Operating voltage: 220-240/115 V~ 50/60Hz
Voltage selection: External
Power consumption (W): 20 W
Standard compliance
CE marking: Yes
Physical specifications
Cabinet/Case Material: Metal
Color: Black
Rack mounting: 19", 1U
Size
Depth: 203 mm / 7.99 inches
Height: 44 mm / 1.73 inches
Weight: 2.96 kg / 6.53 lbs
Width: 483 mm / 19.02 inches
Shipping information
Package Depth: 360 mm / 14.17 inches
Package Height: 80 mm / 3.15 inches
Package Weight: 4.36 kg / 9.61 lbs
Package Width: 615 mm / 24.21 inches
(1) RCF DX-4008 Digital Speaker Processor ( 4 IN / 8 OUT)
