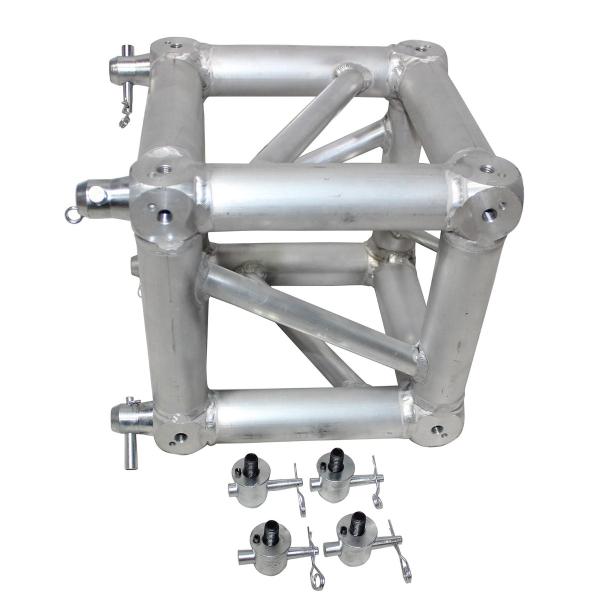

The ProX XT-JB6W-2W Square Truss Junction Block is a universal connecting point for F34 trusses, and it's equipped with connecting hardware for use with ProX XT F34 square truss components. It features 2" outer diameter tubing and 3/4" diagonal bracing. It has XT Series 3mm thick tube walls, this truss junction block is strong and can be used for many applications. It is built to the highest standards of safety and performance. 8 Half Conical couplers included, additional conical couplers can be added for more utility.
At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations. Always know your load weight for your equipment.
ProX 2 Way Square Truss Junction Block [XT-JB6W-2W] Features:
- Tolerance Free Standard Conical connector.
- Main tube wall thickness of .11in.
- Manufactured in ProX's own factory.
- Material: EN-AWT6 6082 Aluminum.
- TUV Certified Aluminum Welding.
ProX XT-JB6W-2W Specifications
XT-SQ Series Dimensions:
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9.5kg per meter
Main Tube: 2in / 50mm
Wall Thickness: .11in / 3mm
Braces: .75in / 20mm
Exterior Dimensions & Weight:
11.45"H x 11.45"W x 11.45"L
Weight: 17.00 lbs
Shipping Dimensions & Weight:
Box 1 of 1: 12.00"H x 12.50"W x 12.50"L
Shipping Weight: 17.50 lbs
Suggested Shipping Method:
Parcel
UPC:
741459147365
The XT-JB6W-2W Box Includes:
(1) ProX XT-JB6W-2W 2 way Square Truss Junction Block
(1) Set of Connecting Hardware
