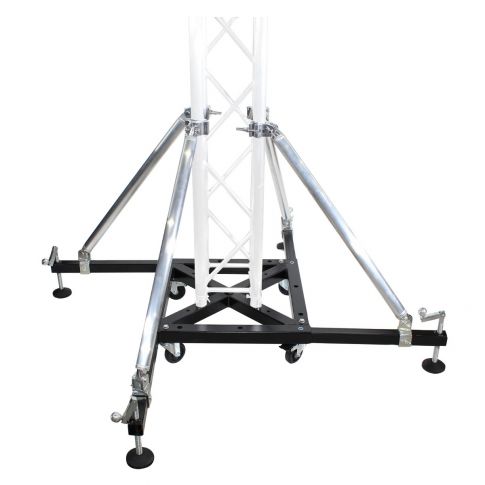

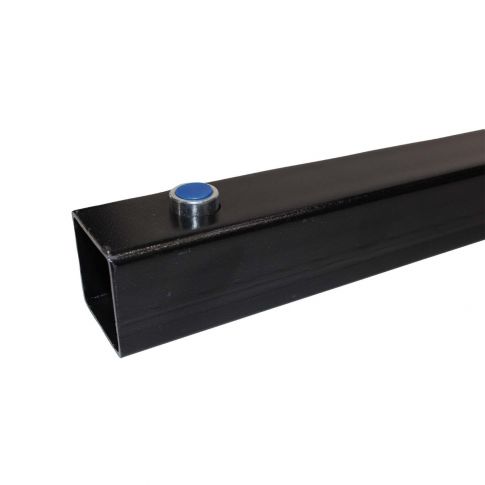

The ProX XT-GSBX PKG is a package of a four-legged outrigger truss base that fits both F34 and F44 truss, with four diagonal aluminum bracing tubes. Half Couplers are installed at the F34 position. The outriggers are adjustable to one of two positions with a push-button release, the bracing tubes can be adjusted to accommodate the two positions by placement on the vertical trussing in the appropriate positions. Truss is not included. In this package, you have everything you need for one complete leg in the building and flying a small to medium scale truss support for light to middle-level stage installations without lift hoist capability.
ProX Truss is one of the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's rugged yet lightweight trussing solution is perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations. All ProX Truss products are 100% compatible to connect to many other manufacturers using conical connectors, and are constructed to the highest safety ratings by certified welders.
ProX XT-GSBX-PKG Ground Support Base Package Features:
- Tolerance Free Standard Conical connector.
- Main tube wall thickness of .08in.
- Manufactured to Exacting Specifications in ProX's own factory.

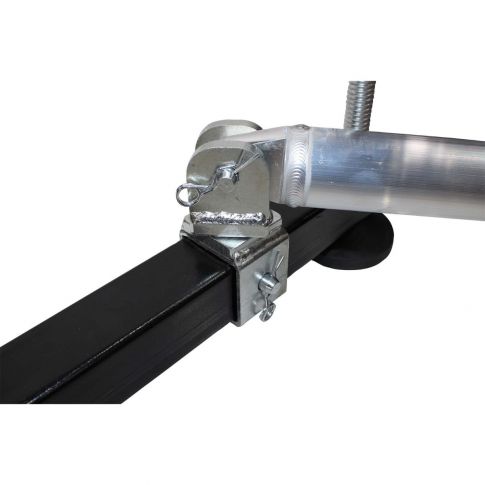

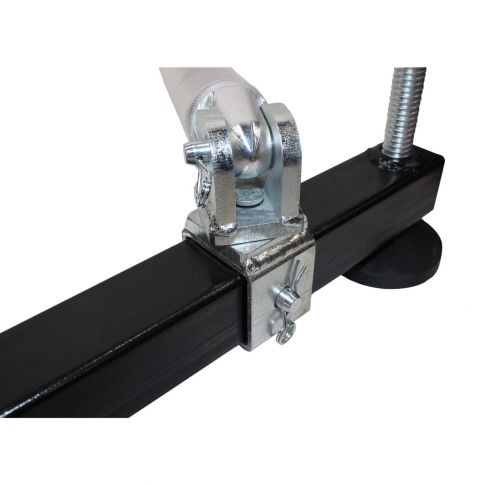

- 41" Aluminum Assist Tube with Clamp (EN-AWT6 6082 Aluminum.)

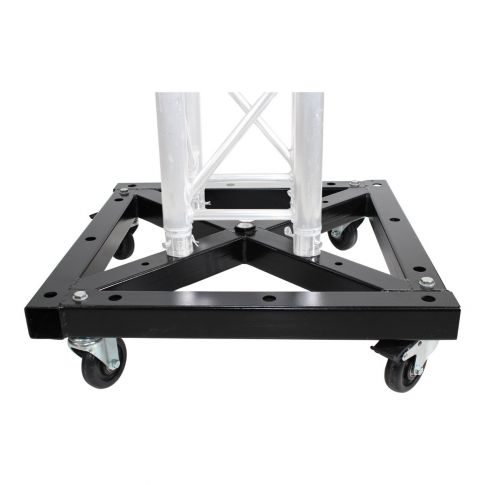

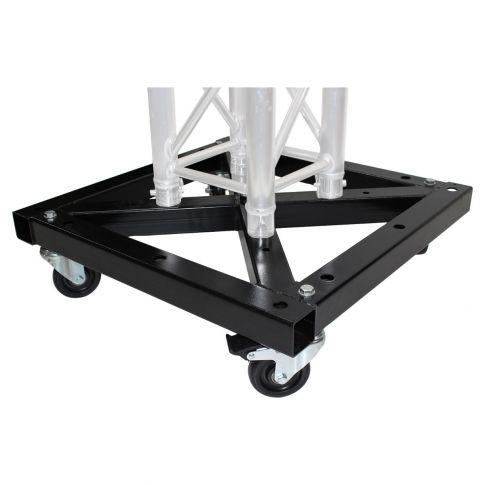

- 26" Black Steel Rigger Base, with extending outriggers and adjustable feet.
- Tolerance Free Standard Conical Connectors.
- Constructed to the highest safety ratings by certified welders.
- TUV Certified Aluminum/Steel Welding.
- ProX Truss products utilize industry-standard dimensions to be compatible to connect to/ and work with many other manufacturers' F34 trussing products with conical connectors.
ProX XT-GSBX-PKG Product Specifications:
XT-SQ Series Dimensions:
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9.5kg per meter
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm
To Fit:
F34/F44 Trussing
Suggested Shipping Method:
Parcel
UPC:
019372412113
Each XT-GSBX-PKG Retail Box Includes:

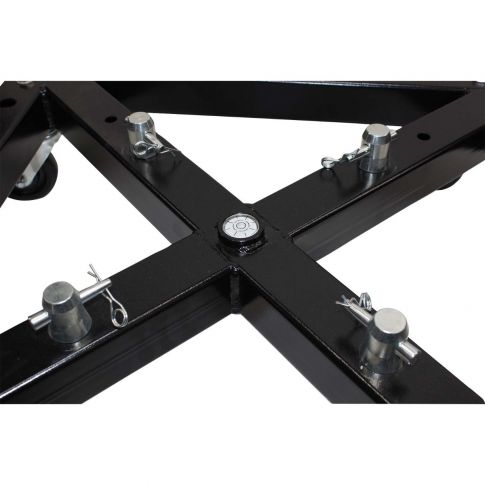

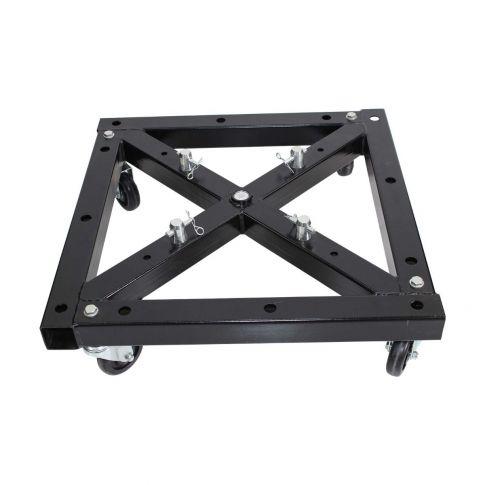

(1) ProX XT-GSBX 26" Black Steel Rigger Base, with extending outriggers and adjustable feet

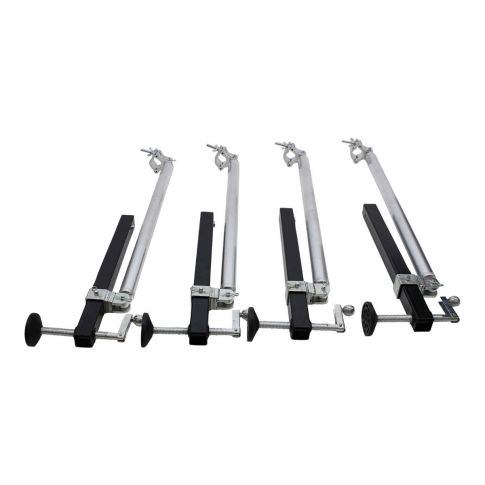

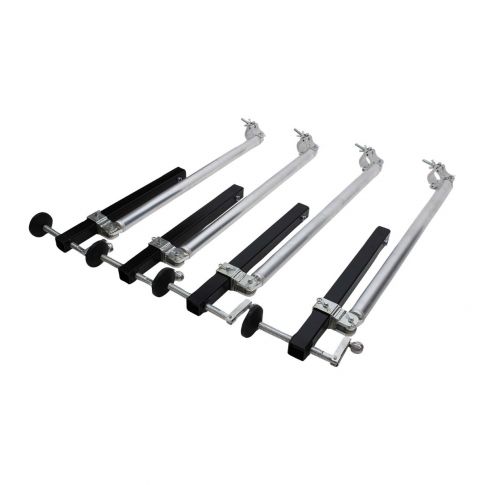

(4) ProX XT-GSOUTX 41" Outrigger Assist Tubes
(4) Truss Clamps
