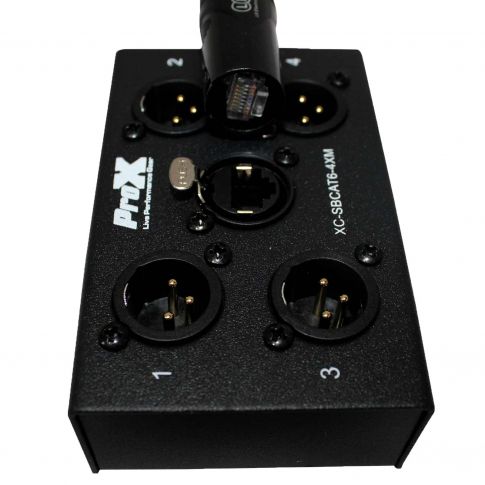

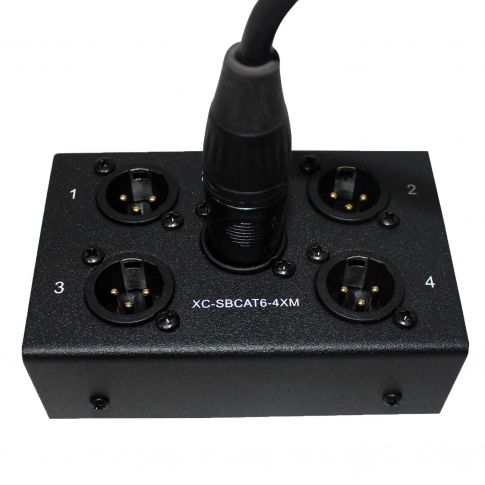

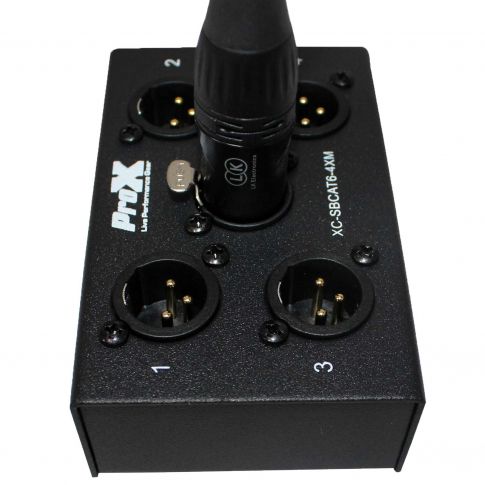

ProX XC-SBCAT6-4XM 4 Channel CAT-5/CAT-6 Portable XLR Snake Box with (4) XLR Male Connectors and Phantom Power Support
About This Product
The XC-SBCAT6-4XM XLR Snake Audio Snake is composed of a pair of metal boxes that are used to send up to four audio signals over a single run of CAT-5, CAT-5E or CAT-6 cables. They are low-cost and compact.
Designed to the highest professional standards, the PBE-202 Audio Snake has a wide, flat frequency response.
You can mix and match Mic/Line, Line or AES/EBU configurations, making the audio snake a very versatile and high quality means of transporting analogue or digital audio. The Audio Snake has been factory tested over CAT-5 UTP.
ProX XC-SBCAT6-4XM 4 Channel XLR Male over CAT-5/CAT-6 Portable Snake Box Features:
- Analogue or digital audio.
- Mic / Line / AES audio all on same cable.
- Supports 48V Phantom power (needs STP Screened CAT-x cable.
- No Ground Loops.
- Add second unit to increase the number of channels.
- Rugged 'road-ready' construction.
- RoHS Compliant.
Bandwidth: 20 Hz to 20 Khz
Crosstalk: Better than -95 dB at 20 KHz
PBE-202S Sending end - 4x Female XLR to Ethercon RJ45 jack
PBE-202R Receiving end - Ethercon RJ45 to 4x Male XLR
Dimensions: 4.2" x 2.8" x 1.8" (107mm x 70mm x 45mm)
Weight: .88 LBs (0.4 Kg)
(1) ProX XC-SBCAT6-4XM 4 Channel XLR Male over CAT-5/CAT-6 Portable Snake Box
