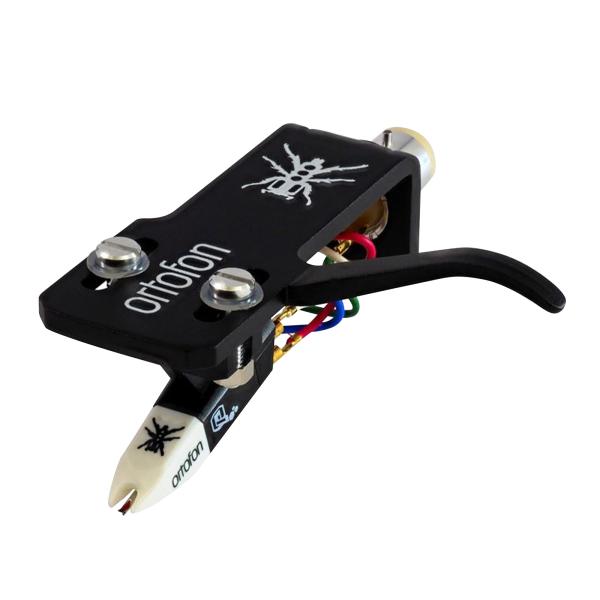

Ortofon Q.Bert Pre Mounted Cartridge on SH-4 Black Headshell
$175.99
Reg.
You save
Backordered
Expected June 30, 2026
Key Highlights
- Universal mount fitting a wide range of S-shaped tonearms.
- Ultra high output.
- Low wear characteristics.
- Q.Bert neon printed logo on the top of the headshell.Add your content...
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|
The OM Q.Bert on the SH-4 Black headshell is a practical and convenient solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm.
- Universal mount fitting a wide range of S-shaped tonearms.
- Ultra high output.
- Low wear characteristics.
- Q.Bert neon printed logo on the top of the headshell.Add your content...
Ortofon Q.Bert Pre Mount Specifications:
Output voltage at 1000Hz, 5cm/second: 11 mV
Channel balance at 1kHz: 1.5 dB
Channel separation at 1kHz: 22 dB
Frequency range at -3dB: 20-18.000 Hz
Tracking ability at 315 Hz at recommmended tracking force: 980 μm
Compliance, dynamic lateral: 12 μm/m N
Stylus type: Spherical
Stylus tip radius: R 18 μm
Tracking force range: 2 - 4 g
Tracking force recommended: 3 g
Tracking angle: 20°
Internal impedance, DC resistance: 1.680 Ohm
Internal inductance: 920 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-400 pF
OM cartridge weight including extra weight: 5 g
Replacement stylus unit: Q.Bert
Each OM-QBERT-PREMOUNT Retail Box Includes:
(1) Ortofon Q.Bert Pre Mounted Cartridge on SH-4 Black Headshell
