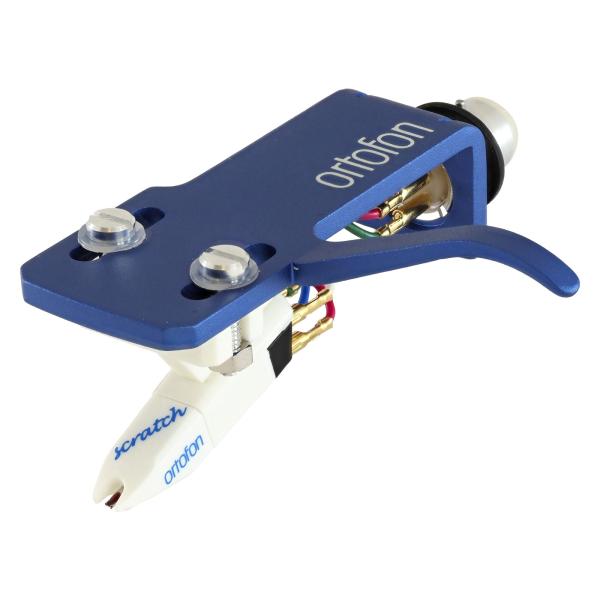

Ortofon OM Scratch Pre Mounted Replacement Cartridge with SH-4 Headshell (white)
Questions? Call 1-800-355-7746 or Chat below
The OM Scratch White on the SH-4 Blue headshell is a practical and convenient solution for customers who wish direct and easy mounting and replacement on their S-shaped tonearm.
Ortofon OM Scratch Pre Mounted Replacement Cartridge (white) Features:
- Universal mount fitting a wide range of S-shaped tonearms.
- Correct Baerwald alignment with the major part of tonearms with universal mount.
- Spherical stylus minimizes scratching.
- Increased tracking ability.
- Reinforced rubber suspension.
- High output and maximum scratch performance guaranteed.
Ortofon OM Scratch Pre Mounted Specifications:
Stylus Type: Spherical
Tracking Force: 4.0 g (40 mN)
Output Voltage: 7 mV
Frequency Range: 20-15.000 Hz
Output voltage at 1000Hz, 5cm/sec. - 7 mV
Channel balance at 1kHz - 1.5 dB
Channel separation at 1kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-20.000 Hz
Frequency response - 20-15.000 Hz 3dB/-2dB
Tracking ability at 315 Hz at recommmended tracking force - 80 μm
Compliance, dynamic lateral - 6 μm/m N
Stylus type - Spherical
Stylus tip radius - R 18 μm
Tracking force range - 3.0-5.0 g (30-50 mN)
Tracking force recommended - 4.0 g (40 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
OM cartridge weight - 5 g
OM pre-mounted on SH-4 weight including screws - 14.5 g
Replacement stylus unit - Scratch White
Each OM Scratch Pre Mounted Retail Box Includes:
(1) Ortofon OM Scratch Pre Mounted Replacement Cartridge with SH-4 Headshell (white)
