Mackie 402VLZ4 4-channel Ultra Compact Mixer
SKU
402VLZ4
Special Price $110.49 Regular Price $129.99
In Stock - Almost Gone
Most orders placed by 2pm ET ship same day (business days)
Only at IDJNOW

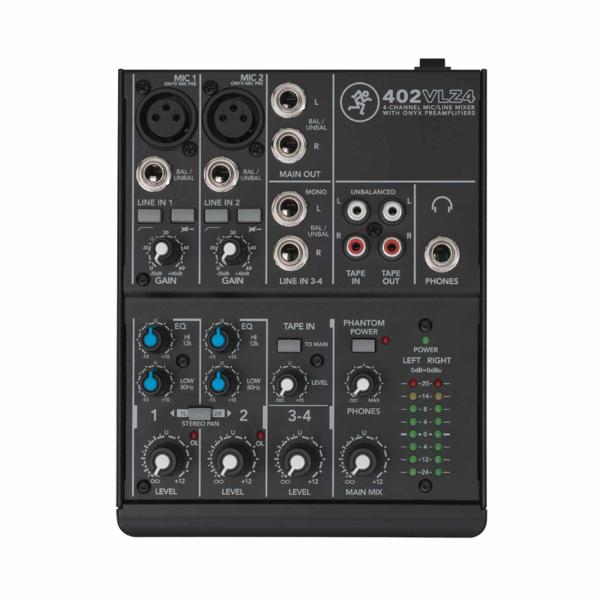

Mackie 402VLZ4 4-channel Ultra Compact Mixer
The 4-channel 402VLZ4 features Mackie's flagship Onyx mic preamps in an ultra-compact design that is an industry-leading performer ideal for professional low-input applications. From every input to every output, the Mackie 402VLZ4 is designed to provide the highest headroom and lowest noise possible for maximum signal integrity. Plus, it is truly "Built-Like-A-Tank" with a ridiculously rugged solid steel chassis plus high-contrast controls for ultimate tactile control. And with features like instrument level inputs, phantom power and level metering, the 402VLZ4 is the premium mixer choice for anybody who's big on performance, but light on inputs.
Mackie 402VLZ4 Features:
- 4-channel mixer featuring Mackie signature high-headroom/low-noise design
- 2 boutique-quality Onyx mic preamps
- Ultra-wide 60dB gain range
- 128.5 dB dynamic range
- +22 dBu line input handling
- Extended frequency response
- Distortion under 0.0007% (20Hz – 50kHz)
- Improved RF rejection perfect for broadcast applications
- Phantom power for condenser mics
- 4 high-headroom line inputs
- Selectable instrument inputs on first two channels – no DI box needed
- 2-band EQ (80Hz, 12kHz)
- 18 dB/oct 100Hz low-cut filter on mic input channels
- High-resolution 8-segment stereo meters
- Sealed rotary controls resist dust and grime
- “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
Mackie 402VLZ4 Specifications
| Noise | Main Mix Noise: Main Mix Knob Down, Channel Level Knobs Down: -103 dBu Main Mix Knob at Unity, Channel Level Knobs Down: -98 dBu Main Mix Knob at Unity, Channel Level Knobs at Unity: -92 dBu Signal-to-Noise Ratio, ref. +4 dBu 102 dB (20 Hz to 20 kHz bandwidth, 1/4" main out, channels 1-2 gain at unity, channel EQs flat, stereo-pan button in) |
| Total Harmonic Distortion (THD) | 20 Hz to 80 kHz Bandwidth: <0.005% 20 Hz to 20 kHz Bandwidth: <0.003% (1 kHz @ 35 dB gain) |
| Crosstalk / Attenuation | Main Mix Knob Down: -70 dBu Channel Level Knob Down: -94 dBu (1 kHz relative to +10 dBu, 20 Hz to 20 kHz bandwidth, microphone in, 1/4" main out, gain at unity) |
| Frequency Response | Microphone Input to Main Output (Gain at Unity): +0, -1 dB, 20 Hz to 50 kHz +0, -3 dB, <10 Hz to >100 kHz |
| Equivalent Input Noise | 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz Microphone in to main out, maximum gain |
| Common Mode Rejection Ratio | Better than -70 dB at 1 kHz |
| Maximum Level | Microphone In: +21 dBu Tape In: +24 dBu All Other Inputs: +22 dBu All Other Outputs: +22 dBu |
| Impedance | Microphone In: 2.55 kΩ Instrument Input: 1 MΩ All Other Inputs: 10 kΩ or greater Tape Out: 1 kΩ Phones Out: 60 Ω All Other Outputs: 120 Ω |
| Equalizer | High Shelving: ±15 dB at 12 kHz Low Shelving: ±15 dB at 80 Hz |
| Power Consumption | 8 W, 100 to 120 VAC, 50 to 60 Hz |
| Power Supply | External AC Connector: 2-Pin IEC 250 VAC |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Dimensions | 7.3 x 5.8 x 1.6" (186.0 x 147.0 x 41.0 mm) |
| Weight | 3.0 lb (1.4 kg) with power supply 2.5 lb (1.1 kg) without power supply |
The Mackie 402VLZ4 Box Includes:
(1) Mackie 402VLZ4 4-channel Ultra Compact Mixer
(1) Power Cord
(1) Owner's Manual
