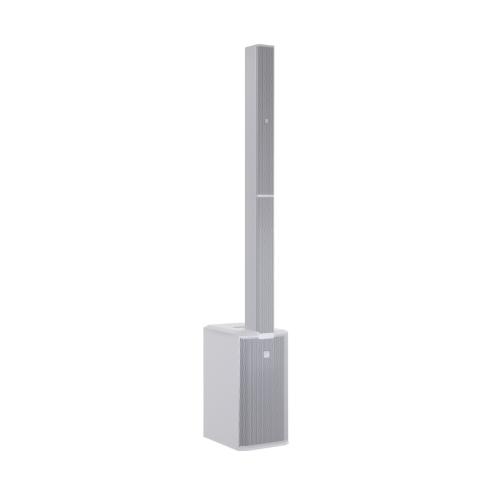

LD Systems MAUI 11 G3 W Portable Cardioid Powered Column PA System - White

SKU
LDS-MAUI11G3W(US)
$1,499.99

In Stock - Almost Gone

Most orders placed by 2pm ET ship same day (business days)

Only at IDJNOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

5000+ Reviews

6000+ Reviews

95%+5-star reviews

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

Compact, powerful and easy to use - a column PA remains the perfect companion for DJs, singer-songwriters and smaller bands. The LD Systems MAUI series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set. The MAUI 11 G3 delivers a huge, powerful and precise sound featuring 700 W RMS power (1,400 W peak), suitable for all applications: as a main PA for concerts, a sound system for mobile DJs or a public address system at weddings, corporate events and many more. With its sleek and elegant design, the MAUI 11 G3 looks very appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 6 x 3.5" midrange drivers and 2 x 1" tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the curved waveguide ahead of the tweeters carries the high frequencies even to the very rear audience areas.

The LD Systems engineers also took great care of the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 25° dispersion field. The columns of the MAUI 11 G3 are designed as cardioid units. This allows for controlled low-mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound. Equipped with two 8" woofers in a larger chassis and two bass reflex ports, the MAUI 11 G3 subwoofer delivers a clear, tight and punchy low end down to 39 Hz. By using a second subwoofer, the bass range can also be driven in cardioid configuration at the push of a button. In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road. The MAUI 11 G3 is a real sound machine, yet also convinces with its smart features in the day-to-day life of DJs, musicians and technicians. Thanks to Bluetooth 5.0 and AAC coding, the column PA becomes even more versatile. Transport is as easy as usual, while the enhanced, hidden multi-pin connections between the elements provide increased stability during assembly. There's nothing that can knock the MAUI off its feet so easily.

LD Systems MAUI 11 G3 W Portable Column PA System Features:

  • Powerful bass reproduction with 2 x 8" subwoofer.
  • Balanced mids thanks to 6 x 3.5" full-range speakers.
  • Precise and silky highs with 2 x 1" high-frequency drivers.
  • Cardioid column for controlled low-mid and midrange sound dispersion.
  • BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion.
  • Optimised bass-reflex design improves bass response and reduces air flow noise.
  • Can be combined with an additional subwoofer for increased low end or for cardioid subwoofer setups.
  • Dynx DSP for distortion-free sound even at maximum volume.
  • AAC coding for HD Bluetooth 5.0 streaming.
  • Automatic setup detection for quick and easy operation.
  • Fast and simple assembly without stands or cables.
  • Rugged birch plywood subwoofer housing with durable polyurea-coating.
  • Lightweight, powder-coated aluminium column housing.

LD Systems MAUI 11 G3 W Product Specifications:
General
Product type PA Complete Systems
Type Active
Color White (RAL 9003)
Max. SPL (Peak) 125 dB
Frequency response 39 Hz - 20 kHz
Dispersion (H x V) 120° x 30°
Overall height 2052 mm
Weight 30,7 kg
Key features Bluetooth Audio Streaming, DSP-based Signal Processing, Excellent Dispersion Behavior, Mono/Stereo Operation, Cardioid Column

Subwoofer
Low/mid woofer dimensions 2 x 8"
Woofer dimensions 2 x 203 mm
Woofer magnet Ferrite
Woofer brand Custom Made
Woofer voice coil 2"
Woofer voice coil 50,8 mm
Cabinet construction Bass Reflex
Cabinet material 15 mm Birch Plywood
Cabinet surface Polyurea
Subwoofer dimensions (W x H x d) 305 x 607 x 403 mm
Subwoofer weight 20,5 kg

Mid/Hi System
Midrange size 6 x 3,5"
Midrange size 6 x 89 mm
Midrange magnet Ferrite
Midrange brand Custom Made
Midrange voice coil 0.75"
Midrange voice coil 19 mm
Tweeter dimensions 2 x 0,5"
Tweeter dimensions 2 x 12,7 mm
Tweeter magnet Neodym
Tweeter brand Custom Made
Tweeter voice coil 1"
Tweeter voice coil 25,4 mm
Horn CD Waveguide
Loudspeaker inputs 1
Speaker input connections Custom Made Multipin
Cabinet construction mid/high Passive Cardioid
Mid/Hi system cabinet material Aluminum
Mid/Hi system cabinet material surface Powder Coated Aluminum
Mid/Hi system width 103 mm
Mid/Hi system height 1460 mm
Mid/Hi system depth 135 mm
Mid/hi system weight 10,2 kg

Amplifier module (integrated in subwoofer)
Amplifier Class D
Amplifier output system (RMS) 700 W
Protection circuits DC Protection, Multiband Limiter, Short Circuit, Thermal Overload
Cooling Convection
Controls Bluetooth HOLD TO LINK-Switch, Cardioid On/Off, Main Level, Power On/Off, Sub Level
Indicators Bluetooth, Cardioid On/Off, Limit, Power, Protect (fuse active), Signal, Follower Mode, Subwoofer Mode
Power connector IEC Power Cable (included)
Operating voltage 100 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC, 50 - 60 Hz
Fuse T3.15AL250V
Power consumption 300 W
Operating temperature 0 - 40 °C
Humidity range <80% (non condensing)
Line inputs 2
Line input connectors Combo XLR/TRS
Line outputs 1 Sub OUT, 2x THRU
Line output connectors XLR male
Loudspeaker outputs 1
Speaker output connections Custom Made Multipin
Bluetooth-profile A2DP
Bluetooth-audio-decoder AAC, SBC

DSP characteristics
Bit depth AD/DA converter 24 Bit
Internal sampling frequency 48 kHz

Each MAUI 11 G3 W Retail Box Includes:

(1) LD Systems MAUI 11 G3 W Portable Cardioid Powered Column PA System - White
