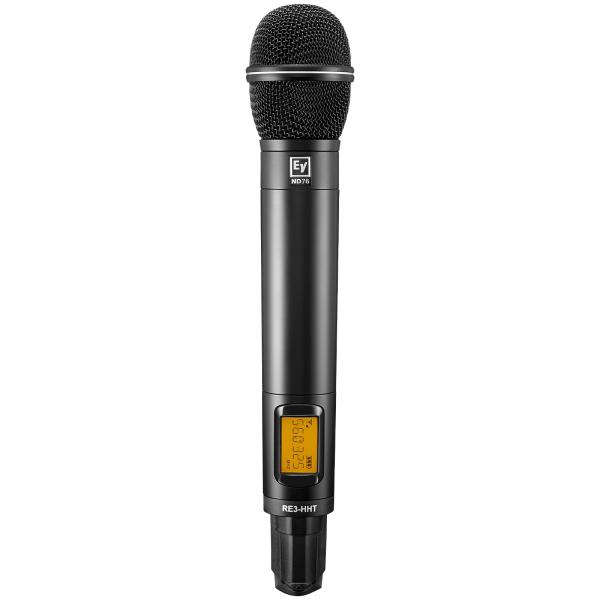

Electro-Voice UHF Wireless Transmitter Featuring ND76 Dynamic Cardioid Microphone (5L Band)
SKU
RE3-HHT76-5L
$365.00
Item Backordered
Expected November 30, 2024
Only at IDJNOW
The RE3-HHT is a lightweight, yet robust UHF handheld transmitter body. It is ideally-suited for professional performance and presentation applications. Due to its commonly-used 1.25" diameter, 28 UN-2A thread pitch microphone head coupling, it accepts mic heads using this common coupling convention. Although primarily intended to accept the ND and RE Series heads developed for RE3 listed in the accessories section of this data sheet, the RE3-HHT will adapt other microphone heads using the 1.25" diameter, 28 UN-2A thread pitch coupling scheme.
The ND76 is a robust, high-performance, large-diaphragm dynamic cardioid vocal microphone. Designed to be a workhorse for excellent all-around voice applications, the ND76 capsule is precisely tuned to deliver crisp, clear, and balanced vocal presence, as well as superior isolation from sound on the stage.
Electro-Voice UHF Wireless Transmitter with ND76 Microphone Features:
- Robust metal body.
- Sync function for easy frequency setup.
- Selectable low and high output power (band specific.)
- Up to 36 MHz tuning bandwidth (band specific.)
- Common threaded coupling allows microphone head interchangeable.
- Excellent all-around vocal performance.
- Crisp, clear and balanced.
- Large-diaphragm dynamic capsule.
- Creates a rich and detailed frequency response.
- Shock-mounted capsule minimizes handling noise.
- Low frequency bumps and thumps won't get into the PA.
- Humbucking coil guards against line hum.
- Use with confidence near speaker cabinets and EMF-generating equipment racks.
- Memraflex grille resists denting.
- Durable tight-mesh grilles withstand extraordinarily rough treatment.
Electro-Voice RE3-HHT76-5L Specifications:
5L Band Details
Bandwidth limits (MHz): 488 – 524
Tuning bandwidth: 36 MHz
Selectable frequencies: 1440
Transmit output power (mW): 10 and 50
Coverage: Global
RE3-HHT Handheld Transmitter
Frequency Oscillation Mode: Phase-locked loop (PLL)
Sync Frequency: Ultrasonic
Display By: LCD + LED
Function Controls: Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock.
RF Stability: <±10kHz@Fc
Modulation Frequency Shift: Wideband FM \ ±48kHz deviation
Harmonic Radiation: <-50dBc
Battery: 2 x AA alkaline battery or NiMH rechargeable battery
Charging Contacts: Yes
Microphone Coupling: 1.25" diameter, 28 UN-2A thread pitch
Microphone Electrical Contact: 3-ring/3-pin
Finish: Black polyurethane paint
Dimensions (without head): Height: 7.52 inch (191mm)
Width at threaded end: 1.46 inch (37mm)
Width at control cover: 0.856 inch (22mm)
Net Weight: (without head): 12.2oz [346 grams]
Gross Weight (without head): 16.9oz [480 grams]
ND76 Dynamic Cardioid Vocal Microphone
Weight Net: 11.39oz (323g)
Height: 7.19" (182.5mm)
Audio Frequency Response: 70 – 17,000
Case Material: Die cast zinc
Connector Type: 3-pin XLR
Diameter (Max): 1.99" (50.5mm)
Element: Dynamic
Family: ND Series
Finish: Black polyurethane paint
Impedance, Low-Z balanced: 350Ω
Maximum SPL: > 140dB
Mic Type: Handheld
Open Circuit Voltage: 2.4mV/Pascal
Polar Pattern: Cardioid
Power Requirement: Passive
Shipping Weight: 21.09oz (598g)
Wired/Wireless: Wired
(1) RE3-HHT Handheld Transmitter
(1) ND76-RC3 microphone head
(1) Microphone stand adapter
(2) AA batteries
(1) Engineering Data Sheet
(1) Warranty card
(1) Declaration of conformity
