Electro-Voice ND86 Dynamic Supercardioid Vocal Microphone
About This Product
The ND86 is a robust, high-performance, large-diaphragm dynamic supercardioid vocal microphone. Designed for excellent acoustic control in even the largest of venues, the ND86 capsule is precisely tuned to deliver present, smooth, and detailed sound, as well as superior isolation from sound on the stage.
Excellent acoustic control in even the largest of venues.
Reduction of low-frequency room tone through high-pass filtering and boosts & cuts in key high-mid frequencies separate the voice from the stage wash.
Large-diaphragm dynamic capsule.
Creates a rich and detailed frequency response.
Shock-mounted capsule minimizes handling noise.
Low frequency bumps and thumps won’t get into the PA
Humbucking coil guards against line hum.
Use with confidence near speaker cabinets and EMF-generating equipment racks.
Memraflex grille resists denting.
Durable tight-mesh grilles withstand extraordinarily rough treatment.
ND SERIES: YOUR SOUND STARTS HERE
The successor to the renowned n/dym series, the new nd series expands the previous product offering with four vocal and four instrument models for live performance and studio applications. Each ND Series model is equipped with features that are unique to both its price point and its particular application – all designed to offer superior sound quality, acoustic control and robustness. At the heart of the new dynamic models is a new large-diaphragm capsule design which takes the technology of the original N/Dym capsule to new levels of sonic performance. Vocalists can select a specific ND Series model to provide optimal results according to singing style and stage volume. Sound engineers and musicians will benefit from an easy set-up due to innovative mechanical solutions that solve typical instrument mic placement challenges.
Electro-Voice ND86 Specifications
|Audio Frequency Response||70 – 17,000|
|Case Material||Die cast zinc|
|Connector Type||3-pin XLR|
|Diameter (Max)||1.99" (50.5 mm)|
|Finish||Black polyurethane paint|
|Impedance, Low-Z balanced||350 Ω|
|Maximum SPL||> 140 dB|
|Open Circuit Voltage||2.4 mV/Pascal|
|Shipping Weight||21.2 oz (601 g)|
|Height||7.19" (182.5 mm)|
|Weight Net||11.5 oz (326 g)|

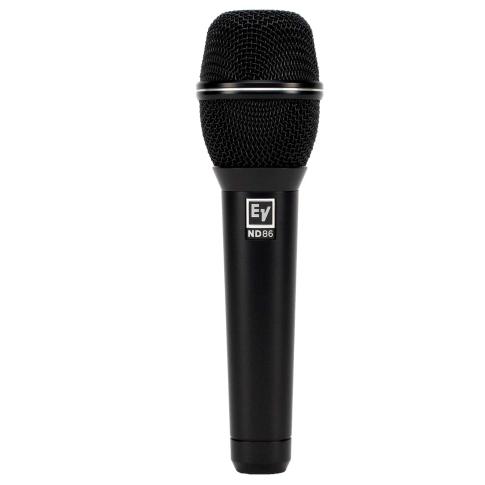

(1) Electro-Voice ND86 Dynamic Supercardioid Vocal Microphone
