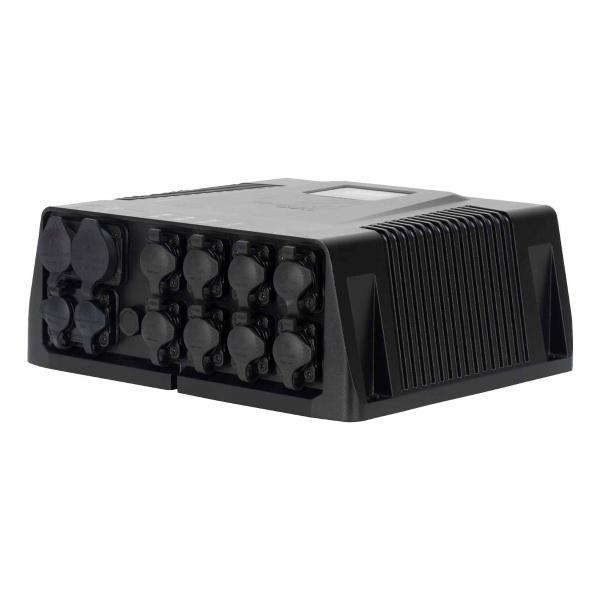

PRISMA DRIVER 8IP is an easy to use 48VDC, IP65 protected, driver system which provides individual DMX-512 control including variable delayed time dimming modes for up to (8) PRISMA MINI UV LED series fixtures including the PRISMA MINI PAR 20, PRISMA MINI PAR 45 and the PRISMA MINI BAR 20. Includes 8x 4pin Connection Kits.
Elation Professional PRISMA DRIVER 8IP IP65 Driver Features:
- Rugged IP65 housing.
- Easy keyhole slots for wall and surface mounting.
- Multiple DMX control modes.
- Onboard 4 button touch control panel.
- 8x 4pin locking output sockets.
- DMX 5pin locking XLR in/out and locking power in/out.
- Includes 8x 4pin Connection Kits.
Elation Professional PRISMA DRIVER 8IP Product Specifications:
Construction:
Rugged IP65 Housing
Easy Keyhole Slots for Wall/Surface Mounting
Control:
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support
Connections:
8x 4pin locking output sockets (8 PRISMA MINI fixtures max)
Includes 8x 4pin Connection Kits
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In/Out
With Wired Digital Communication Network
Size/Weight:
Length: 9.0 in. (227.8mm)
Width: 10.4 in. (264mm)
Height: 4.2 in. (105.9mm)
Weight: 8.05 lbs. (3.65 kg)
Electrical:
AC90-240V, 50-60Hz
48VDC 8.3A
167W Max Power Consumption
Thermal:
Maximum Temperature (Ambient): 113° F (45° C)
Minimum Temperature (Ambient): 14° F (-10° C)
Approvals/Ratings:
CE | cETLus *Pending | IP65 (Temporary outdoor use only)
Each PRISMA DRIVER 8IP Retail Box Includes:
(1) Elation Professional PRISMA DRIVER 8IP 48VDC, IP65 Protected Driver System
(1) Twist-locking power cable
(8) 4-pin connectors
