Be the first to review this product
Expected March 31, 2025

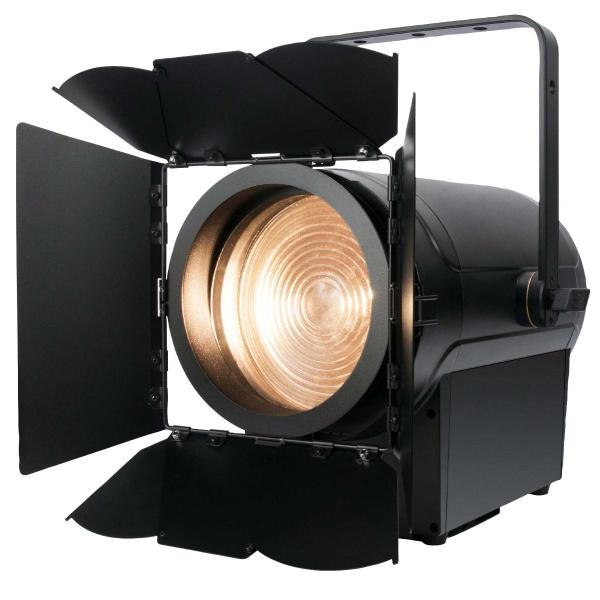

KL FRESNEL 8 is a 350W 3,000K >96CRI Warm White LED fresnel, producing over 14,000 total lumen output, on par with compatible tungsten halogen models. Features include manual and DMX control, 11° to 57° wide motorized zoom, manual and DMX controlled dimmer, shutter, and zoom, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included), and a 3 clamp position adjustable mounting yoke.
Elation Professional KL FRESNEL 8 Warm White Fresnel Features:
- 350W 3,000K >96CRI Warm White LED Engine.
- 14,000+ Total Lumen Output.
- Output On Par with Tungsten Halogen Models.
- 11° to 57° Wide Motorized Zoom.
- Manual and DMX Controlled Dimmer, Shutter, and Zoom.
- Dimmer and Zoom Rotary Dials.
- Smooth 16-bit Selectable Dimming Modes and Curves.
- LED Refresh Rate Adjustment.
- Flicker Free Operation for TV and FILM.
- RDM (Remote Device Management).
- Gel Frame and Rotating Barn Doors (included).
- 3 Clamp Position Adjustable Mounting Yoke.
Elation Professional KL FRESNEL 8 Product Specifications:
Source:
350W >96CRI 3,000K Warm White LED
50,000 Hour Average LED Life
May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data:
14,000+ Total Lumen Output
43,673 LUX 4,057 FC @6.6' (2m) (Min Zoom / Full ON)
4,169 LUX 387 FC @6.6' (2m) (Max Zoom / Full ON)
Zoom Range 11° - 57°
Beam Angle 10.8° - 56.8°
Field Angle 16.6° - 75.5°
Effects:
Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
Color:
Warm White 3,000K
Control/Connections:
Manual and DMX Controlled Dimmer, Shutter and Zoom
Dimmer and Zoom Rotary Dials
(5) DMX Channel Modes (2 / 3 / 3 / 6 / 7)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking In/Out Power Connection
With Wired Digital Communication Network
Size/Weight:
Length: 23.95" (608.4mm)
Width: 12.89" (327.5mm)
Vertical Height: 17.95" (456mm)
Weight: 28.0 lbs. (12.7kg)
Electrical/Thermal:
AC 100-240V - 50/60Hz
430W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
Power Linking: 3Pcs @ 110V / 6Pcs @ 240V
Approvals/Ratings:
CE | cETLus | IP20
Each KL FRESNEL 8 Retail Box Includes:
(1) Elation Professional KL FRESNEL 8 350W 3,000K >96CRI Warm White LED Fresnel
(1) Gel Frame and Rotating Barn Doors
(1) IP65 Locking Power Cable
