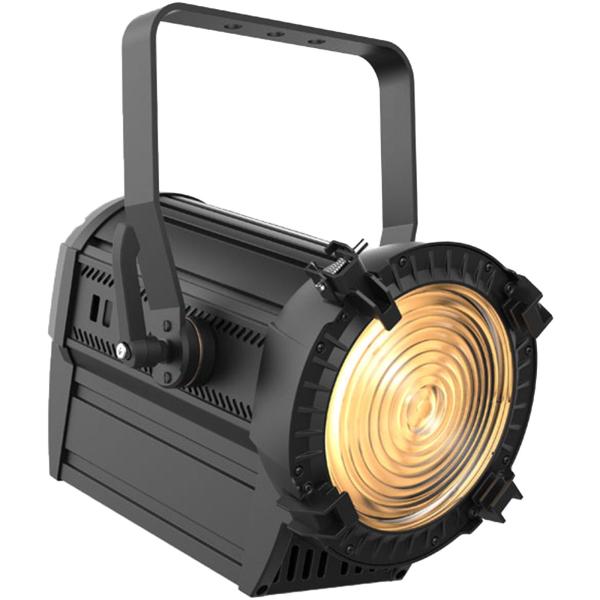

Chauvet Professional Ovation FD-205WW LED Fresnel Wash Light
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Ovation FD-205WW is a powerful LED Fresnel wash utilizing data and power sensors that make it possible to run it on both conventional dimming power systems and constant power rigs. A massive zoom range of 20° to 72° and a beautifully soft, warm white wash with high CRI make it an ideal LED replacement for aging incandescent eight-inch Fresnels. The proprietary motorized zoom is easily accessed by the rotary knob on the back of the fixture even when the fixture is run via a traditional dimming system. Enjoy the benefits of LED lighting without being held back by previous investments made in major dimming systems.
Chauvet Professional Ovation FD-205WW LED Fresnel Wash Light Features:
- Works perfectly on conventional dimmers or constant power with DMX.
- Auto-senses what kind of system (dimmers or constant power with DMX) and responds appropriately.
- Superior low end dimming regardless of power supplied (conventional dimmer/constant power with DMX.)
- Perfect fixture for the retrofit market, utilizes existing infrastructure flawlessly.
- Motorized zoom feature available in Dimmer, SENS or DMX modes.
- 16-bit dimming resolution (DMX mode) for smooth fades.
- Soft and even field of light.
- Virtually silent operation for use in any situation.
- Simple and complex DMX channel profiles for programming versatility.
- Warm white Fresnel-style lighting fixture.
- Motorized zoom angle between 20° to 72°, manually or via DMX.
Chauvet Professional Ovation FD-205WW Specifications:
Optical:
Light Source 1 LEDs (WW) 230 W, (2.5 A), 3069 K, 50,000 hours life expectancy
Color Temperature (at full): 3069 K
CRI: 96
Beam Angle: 11° to 53°
Field Angle: 20° to 72°
Zoom Angle: 20° to 72°
Lumens (20°): 6,414
Lumens (72°): 9,047
Illuminance (20°): 5,678 lux @ 5 m
Illuminance (72°): 450 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects:
Dimmer: Electronic or External Dimmer Rack
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 18 Hz
Dim Modes: 5
Dim Curves: 4
Construction / Physical:
Dimensions: 16.22 x 11.18 x 10.28 in (412 x 284 x 261 mm)
Weight: 14 lb (6.4 kg)
Exterior Color: Black
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
Connections:
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control:
Control Protocol: DMX, RDM, Dimmer
DMX Channels: 1, 2 or 5
Modes/Personalities: 3 personalities (UNO, DOS, STD-P)
Electrical:
Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
Power Linking: 8 units @ 120 V; 16 units @ 230 V
Power and Current: 182 W, 1.52 A @ 120 V, 60 Hz
Power and Current: 188 W, .819 A @ 230 V, 50 Hz
Breaker Size: T3.15 A, 250 V
Certifications / Qualifications:
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Each Ovation FD-205WW Retail Box Includes:
(1) Chauvet Professional Ovation FD-205WW LED Fresnel Wash Light
(1) Neutrik powerCON power cord
(1) Gel frame (7.5 in/190.5 mm accessories)
(1) Quick Reference Guide
