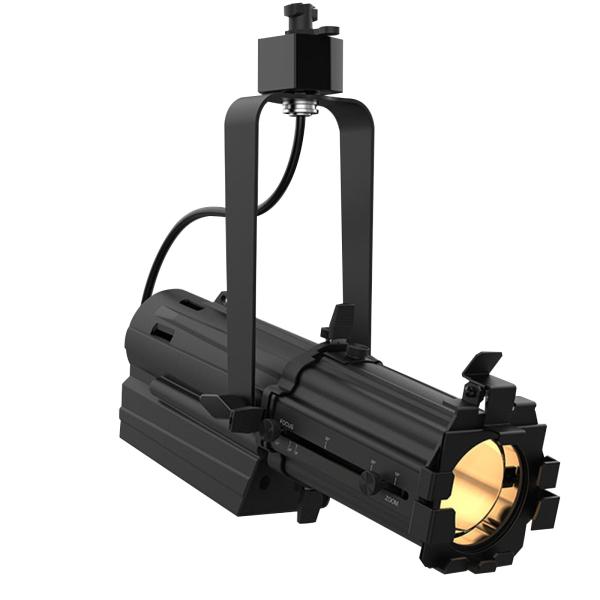

Chauvet Professional Ovation ETD-40WW Compact 40W Warm White LED Ellipsoidal Lighting Fixture

SKU
OVATIONETD40WW
$473.00

We'll let you know once this product is back in stock. Simply add your email address and click the "Notify Me" button. As soon as we have more you will receive a notification.

Item Backordered

Questions? Call 1-800-355-7746 or Chat below

Only at IDJNOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

5000+ Reviews

5000+ Reviews

90%+5-star reviews

30-Day Returns

30-Day Returns

Don't Like it? Return it.

Ovation ETD-40WW is a best-in-class track-mountable 40W warm white LED ellipsoidal. This compact LED fixture has tremendous output with high CRI and creates a hard-edged beam for precise gobo projection. Designed for architectural and retail installations, this luminaire is equipped with fantastic zooming optics that provide a beam angle from 19° to 36° and can be adjusted with framing shutters to highlight desired areas.

Chauvet Ovation ETD-40WW Ellipsoidal Features:

  • Compact LED ellipsoidal shines a hard-edged beam, perfect for gobo projection.
  • Track-mountable to readily available track lighting rails.
  • Tremendous output with high CRI.
  • Highlight areas by altering the projected beam with framing shutters.
  • Uses standard size E glass or metal gobos.
  • Zooming optics provide a beam angle from 19° to 36°.

Chauvet Ovation ETD-40WW Specifications:
Optical
Light Source: 1 LEDs (WW) 40 W, (600 mA), 50,000 hours life expectancy.
Color Temperature (at full): 3255 K
CRI: 93
TLCI: 92.2 Beam Angle (w/19-36° lens)(19°): 16°
Beam Angle (w/19-36° lens)(26°): 17°
Beam Angle (w/19-36° lens)(36°): 18°
Field Angle (w/19-36° lens)(19°): 19°
Field Angle (w/19-36° lens)(26°): 25°
Field Angle (w/19-36° lens)(36°): 33°
Lumens (w/19-36° lens)(19°): 1,327
Lumens (w/19-36° lens)(26°): 1,260
Lumens (w/19-36° lens)(36°): 1,050
Illuminance (w/19-36° lens)(19°): 784 lux @ 5 m
Illuminance (w/19-36° lens)(26°): 526 lux @ 5 m
Illuminance (w/19-36° lens)(36°): 352 lux @ 5 m

Dynamic Effects
Dimmer: Electronic
Focus: Manual

Construction / Physical
Dimensions: 14.82 x 5.09 x 5.18 in (376.5 x 129.3 x 131.64 mm)
Weight: 3.4 lb (1.6 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Gobo Size (Optional): Gobo size: 37.5 mm (outside), 20 mm (image, glass), 25 mm (image, steel), 1 mm (max. thickness)

Connections
Power Connection: Track Type H
Cable Length (power): 1.17 ft (0.36 m)

Electrical
Input Voltage: 120 VAC, 60 Hz
Input Voltage: 230 VAC, 50 Hz
Power and Current: 37 W, 0.291 A @ 120 V, 60 Hz
Power and Current: 39 W, 0.17 A @ 230 V, 50 Hz

Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Each Ovation ETD-40WW Retail Box Includes:
(1) Chauvet Professional Ovation ETD-40WW Compact 40W Warm White LED Ellipsoidal Lighting Fixture
(1) Track Adaptor
(1) Gobo holder size: 37.5 mm (outside), 20 mm (image, glass), 25 mm (image, steel), 1 mm (max. thickness)
(1) Gel frame (2.75 in/70 mm accessories)
