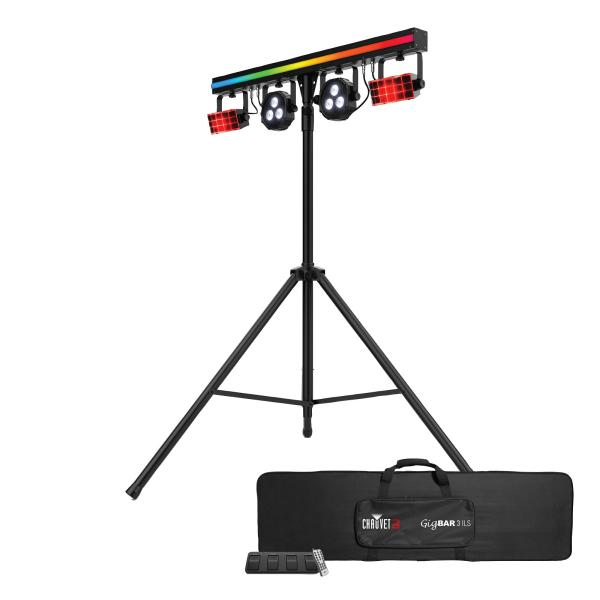

Chauvet DJ GigBAR 3 ILS 3-in-1 Effect Lighting System
$599.99
Reg.
You save
More on the Way
Expected November 30, 2026
Key Highlights
- 3-in-1 light that includes a pair of LED derbies, LED pars, and an LED strip, all mounted on one bar.
- Built-in LED strip adds pizazz and eye-candy effects to mobile entertainment setups.
- ILS compatibility for use in the ILS ecosystem.
- Create the ultimate light show by mounting up to 4 additional fixtures to the top of the GigBar 3 ILS .
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|
Chauvet DJ GigBAR 3 ILS 3-in-1 Effect Lighting System Features:
- 3-in-1 light that includes a pair of LED derbies, LED pars, and an LED strip, all mounted on one bar.
- Built-in LED strip adds pizazz and eye-candy effects to mobile entertainment setups.
- ILS compatibility for use in the ILS ecosystem.
- Create the ultimate light show by mounting up to 4 additional fixtures to the top of the GigBar 3 ILS .
- Reversible tripod bracket allows for upside down mounting.
- Easy navigation and access all functions directly from the full-color LCD display.
- Get in and get out quickly with the included tripod, wireless footswitch, and FREE carry bags.
- Phenomenal, built-in, automated, and sound-activated programs that include all 3 effects to make one complete show.
- Easy control from the display, included RF Remote, wireless foot switch or DMX to take your gig to a higher level.
- Save time running cables and extension cords by power linking multiple units.
Chauvet DJ GigBAR 3 ILS Product Specifications:
DMX Channels: 2, 21, or 132
DMX Connectors: 3-pin XLR
Light Source (pars): 6 LEDs (quad-color RGB + UV) 3.7 W 1A), 50,000 hours life expectancy
Light Source (LED Strip): 74 LEDs (red, green, blue) 5 W (.03 A), 50,000 hours life expectancy
Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 3 W (.6 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Stand Height: 4.8 ft to 7.8 ft (1.5 to 2.4 m)
Tripod leg width: 3.9 ft (1.2 m)
Fits Tripod Size: 1.5 in (37.4 mm)
Beam Angle (pars): 13°
Field Angle (pars): 24°
Coverage Angle (Derby): 114°
Coverage angle: ( LED Strip ) 174°
Operating Frequency (D-Fi): 2.412 to 2.484 GHz
Cable Length: 9 ft (2.844 m)
Foot Switch Operating Frequency: 433 MHz
Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
Footswitch battery: 9V, 300mA
Illuminance (pars): 1,205 lux @ 2 m (per head)
Power Linking: 11 units 120 V; 18 units 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 47 W, .7A 120 V, 60 Hz
Power and Current: 45 W, .4 A 230 V, 50 Hz
Weight: 13.2 lbs. (6 kg)
Size: 41.2 x 3.7 x 10.7 in (1047 x 94.5 x 272 mm)
Optional Controllers: ILS Command, RF Remote
Approvals: CE, ROHS, FCC
