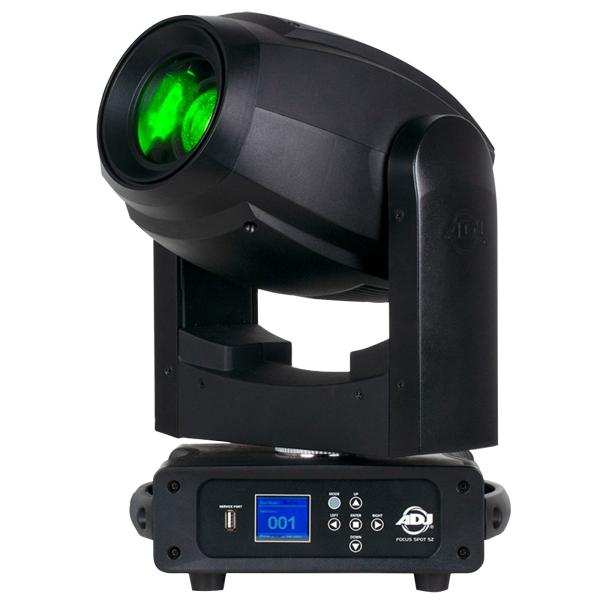

The Focus Spot 5Z has locking power In and out connectors to daisy chain the power, as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 5Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).
American DJ Focus Spot 5Z Moving Head Focus Spot Features:
- Motorized Focus.
- 2 Frost Filter to create wash effects.
- Motorized Zoom: 11 ~ 22-degrees.
- 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular.
- 0-100% smooth dimming.
- Various strobe speeds.
- USB firmware update port.
- 2 cooling fans.
American DJ Focus Spot 5Z Specifications:Light Source
200W Cool White LED Engine (50,000 hr.)
7 dichroic colors + white on tow separate wheels (includes CTO, CTB and UV filters)
6 aluminum GOBOs, 1 glass GOBO + open
All GOBOs are removable & rotatable
GOBO Shake Effect
Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)
Prism Wheel 1: Rotatable 5-facet Linear
Prism Wheel 2: Rotatable 6-facet Circular
Each Prism is indexable
Frost 1: Heavy frost for wash effect
Frost 2: Light frost creates lightly blurred edges for GOBO and Prism FX
2 DMX Channel Modes: 22/25 Channels
Color LCD display with 6-button function menu
Control Mode: DMX512 or internal programs
6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
0-100% smooth dimming
Various strobe speeds
USB firmware update port
With Wired Digital Communication Network
Pan: 630 degrees
Tilt: 270 degrees
DMX Connections: 5-pin XLR In/Out
Power Connections: PowerLock In/Out to daisy chain power
Multi-voltage operation: 90-240V, 50/60Hz
Max power consumption: 290W
Dimensions & Weight
Dimensions: 7.15" (L) x 10.97" (W) x 18" (H) (181.5 x 278.61 x 457.4mm)
Weight: 23 lbs. / 10 kg.
(1) American DJ Focus Spot 5Z 200 Watt Cool White LED Moving Head Focus Spot
(1) Omega Bracket
(1) 1.83M locking power cable
