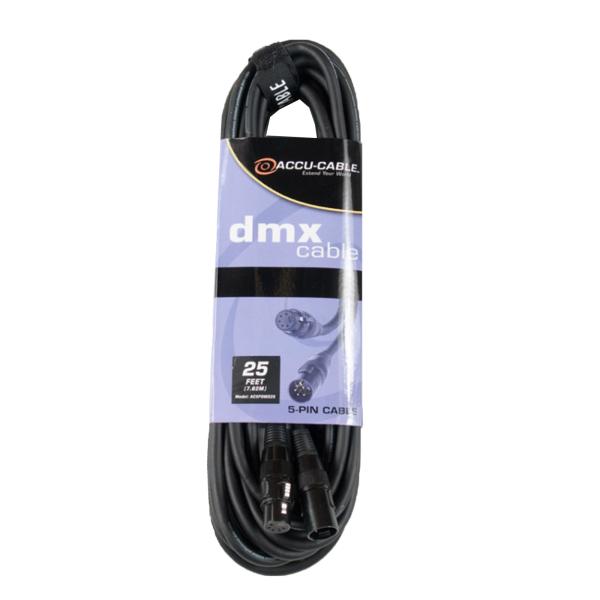

American DJ 25FT 5-Pin DMX Cable [AC5PDMX25]

American DJ 25FT 5-Pin DMX Cable [AC5PDMX25] Close-up 3

*Roll over image to zoom

*Click image to zoom

Gallery

Item#: AC5PDMX25

UPC: 819730011213

$29.95

Qty.

Questions? Contact Us.

Overview

About This Product

Quality cables from American DJ's Accu-Cable Brand are manufactured with quality components and are built to last.

22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

Tech Specs

American DJ / Accu-Cable DMX Cable Specifications

Physical Characteristics:
Conductor:

• Number of Pairs: 1
• Total Number of Conductors: 2
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper

Insulation:

• Insulation Material PE Polyethylene

Lay Length:

• Lay Length: 2.5"
• Direction: Left Hand Lay
• Twists: 4.8 per foot

Inner Jacket:

• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Black/White

Outer Shield:

• Outer Shield Trade Name: Duofoil
• Outer Shield Type: Tape/Braid

Outer Shield Material:

• Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

Outer Jacket:

• Outer Jacket Material: PVC-Polyvinyl Chloride

Overall Nominal Diameter:

• Overall Nominal Diameter: .229"
