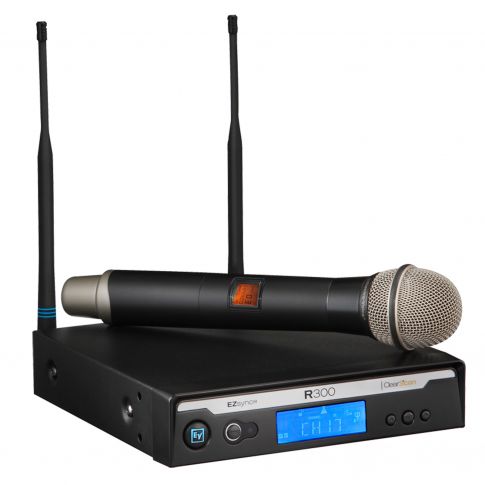

Electro-Voice R300-HD-A Handheld Wireless System with PL22 Dynamic Microphone
About This Product
Electro-Voice R300-HD-A Handheld Wireless System with PL22 Dynamic MicrophoneThe HT-300 metal handheld transmitter is made to withstand the rigors of daily use but still be comfortable in your hand. The PL22 dynamic microphone is the perfect all-around microphone for speaking engagements, singing and emcees. The cardioid pick up pattern rejects noise from the surroundings, helps to control audio feedback, and still allows an experienced vocalist to work the microphone. The receiver for the R300 system is equally at home on a table top or in a 19 inch equipment rack. Rack mount kits and front mount antenna cables are available for the R300 for a professional installation. For applications with up to 4 receivers in one rack, the APD4+ antenna splitter can provide antenna and power feeds.
Electro-Voice R300HD-A Features:• ClearScan automatically finds the clearest channel.
• EZsync one-step channel setup.
• PL22 cardioid dynamic microphone element.
• 14 hour battery life from two AA alkaline.
• Rugged metal transmitter.
• Metal receiver chassis with optional rack mount.
Electro-Voice R300-HD-A Specifications
|Antennas||Flexible TNC 1/2 Wave|
|Audio Frequency Response||80 Hz - 18kHz +/- 2dB|
|Battery Life||14 hours with (2) AA alkalines typical|
|Connector Type||1/4 inch unbalanced, 3-pin XLR balanced|
|Controls||on/off, Set, Up, Down, Sync|
|Distortion (@ 1 kHz, 40 kHz deviation)||less than 1.0, 0.4 typical %|
|Dynamic Range||greater than 95 dB|
|Element||PL22 Cardioid Dynamic|
|Number of Channels||32|
|Operating Temperature Range||5º - 45º C (41º - 113º F)|
|Power Requirement||12-16 VDC, 500 mA max|
|Receiver Type||Synthesized PLL|
|RF Frequency Range||16 MHz|
|RF Output||8 mW typical|
|RF Sensitivity (12 dB SINAD)||less than 1.0 uV|
|Signal-to-Noise Ratio (A-weighted)||greater than 100 dB|
|Squelch||Tone code plus Amplitude|
The R300-HD-A Box Includes:(1) HT-300 Handheld Transmitter
(1) PL22 dynamic microphone
