Electro-Voice EVID-C6.2 6.5" White Ceiling Speakers Four Package with 2x10 inch Black Subwoofer Cabinet

SKU #: COMSOUNDPACK1BK
Reg. $4,390.99
As low as $362/mo or 0% APR with Affirm Logo
Item Backordered

Expected May 31, 2025

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

The Electro-Voice EVID-C6.2 loudspeaker system is a complete two-way ceiling loudspeaker. The package consists of a bezel assembly, grille, rear enclosure, 6.5-inch coax two-way loudspeaker and internal line matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID-C6.2 loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The EVID-C6.2 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15W or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS.

The rear enclosure is constructed from zinc-plated, heavy gauge steel. The low profile enclosure makes it easy to mount in very tight spaces. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the EVID-C6.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.

Electro-Voice EVID-C6.2 6.5" White Ceiling Speakers Features:

  • Full bandwidth overload protection.
  • Front baffle wattage tap adjustment.
  • Includes tile bridge and mounting ring for easy installation.
  • UL1480A and CSA 22.2 205 certified.

The EVID-S10.1D subwoofer, from Electro-Voice, is a compact, high-performance, dual 10" (254 mm) woofer loudspeaker with outstanding performance for the most demanding professional and commercial sound applications. Designed and engineered for use in background and foreground music, and sound reinforcement applications, the EVID-S10.1D is the ideal solution for indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.

Ease of installation, and flexible options for mounting solutions and weather resistance, the EVID-S10.1D is the perfect solution for a wide variety of surface mount applications.

The EVID-S10.1D has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. The subwoofer is IP54 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt and moisture. For the toughest weather conditions, the IP rating of the EVIDS10.1D can be upgraded to IP65, using the included port plug accessory.

The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers.

Electro-Voice EVID-S10.1D 2x10" Black Subwoofer Cabinet Features:

  • Two 10 inch high-excursion woofers.
  • Carefully engineered for outdoor environments (IP54 and IP65), without compromising performance.
  • 400 W power handling provides for 120 dB maximum SPL (126 dB peak.)
  • 70/100 V transformer input panel accessory available.
  • Crossover input panel accessory available.

Electro-Voice EVID-C6.2 Product Specifications:
Frequency response 50 Hz - 20 kHz
Sensitivity (SPL 1 W/1 m) 90 dB
Coverage pattern 120° conical
Power handling (@ 8Ω) 75 W (with overload protection)
Rated Impedance 8 Ω
Recommended High-Pass frequency   60 Hz
Input configuration 8Ω; 70V/100V
70V/100V power taps 1.8 (70V only)/3.7/7.5/15/30 W
LF transducer 6.5 in (165 mm) high-compliance driver (weatherized cone)
HF transducer 1 in (25 mm) Ti-coated dome
Mounting system Integrated 4-point toggle anchors
Acoustic design Ported cabinet, two-way design, internally damped, w/passive crossover
Cabinet construction Steel enclosure and UL94V-0 rated baffle and bezel
Grille construction Powder-coated steel
Color White (paintable)
Cutout dimensions (diam.) 10.6 in. (269 mm)
Dimensions (depth x diam.) 7.0 in. x 11.8 in. (190 mm x 300 mm)
Net weight 10 lb (4.5 kg)
Included accessories Tile bridge, mounting ring
Safety agency ratings UL 1480
Safe for use in air handling spaces per UL 2043

Electro-Voice EVID-S10.1DB Specifications:
Frequency Responce (-10 dB)33 Hz – 500 Hz
Sensitivity94 dB
Max SPL120 dB
Coverage Angle (H x V)-
Power Handling400 W
Low ZYes
Nominal Impedance8 Ω
Input Transformer (70 V / 100 V)Optional Accessory
Transformer TapsOptional Accessory
LF TransducerTwo 10 in (254 mm)
HF Transducer-
ConnectorsTwo removable locking 4-pin connector (Euroblock) – Input and output Max. wire size 12AWG (2.5 mm
EnvironmentalIP-54 (per IEC60529) IP-65 with port covers (included)
ColorBlack (RAL 9004)
Dimensions (H x W x D)356 x 651 x 490 mm (14 x 25.6 x 19.3 in)
Net Weight17.9 Kg (39.5 lb)
Shipping Weight (pair)21.0 Kg (46.3 lb)
Included Hardware(2) Subwoofer feet, weather input cover, (2) IP-65 port covers
Packaged Quantity1

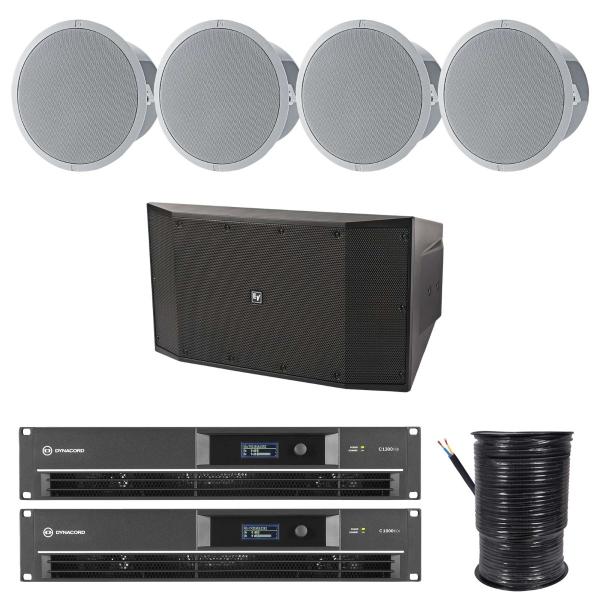

This Package Includes:

(4) Electro-Voice EVID-C6.2 6.5" White Ceiling Speakers
(2) Tile bridges
(2) Mounting rings
(1) Electro-Voice EVID-S10.1D F.01U.332.744 2x10" Black Subwoofer Cabinet
(2) Subwoofer Feet
(1) Weather Input Cover
(2) IP-65 Port Covers
(1) Dynacord C1300FDi DSP 2 x 650W Power Amplifier for Fixed Install Applications
(1) Dynacord C1800FDi DSP 2 x 950W Power Amplifier for Fixed Install Applications
(2) RMK15 Rear Rack Mount Kits
(1) 500FT 12 Gauge 2 Conductor Speaker Cable Spool
