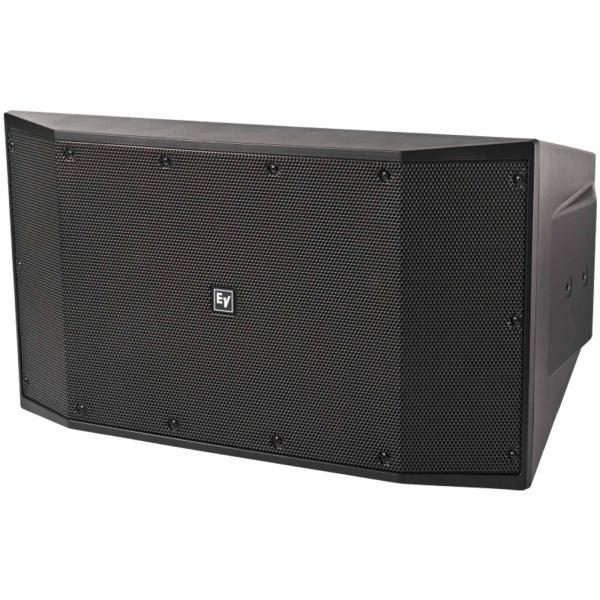

The EVID-S10.1D subwoofer, from Electro-Voice, is a compact, high-performance, dual 10" (254 mm) woofer loudspeaker with outstanding performance for the most demanding professional and commercial sound applications. Designed and engineered for use in background and foreground music, and sound reinforcement applications, the EVID-S10.1D is the ideal solution for indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.
Ease of installation, and flexible options for mounting solutions and weather resistance, the EVID-S10.1D is the perfect solution for a wide variety of surface mount applications.
The EVID-S10.1D has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. The subwoofer is IP54 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt and moisture. For the toughest weather conditions, the IP rating of the EVIDS10.1D can be upgraded to IP65, using the included port plug accessory.
The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers.
Electro-Voice EVID-S10.1D 2x10" Black Subwoofer Cabinet Features:
- Two 10 inch high-excursion woofers.
- Carefully engineered for outdoor environments (IP54 and IP65), without compromising performance.
- 400 W power handling provides for 120 dB maximum SPL (126 dB peak.)
- 70/100 V transformer input panel accessory available.
- Crossover input panel accessory available.
Electro-Voice EVID-S10.1DB Specifications:
Frequency Responce (-10 dB) | 33 Hz – 500 Hz |
Sensitivity | 94 dB |
Max SPL | 120 dB |
Coverage Angle (H x V) | - |
Power Handling | 400 W |
Low Z | Yes |
Nominal Impedance | 8 Ω |
Input Transformer (70 V / 100 V) | Optional Accessory |
Transformer Taps | Optional Accessory |
LF Transducer | Two 10 in (254 mm) |
HF Transducer | - |
Connectors | Two removable locking 4-pin connector (Euroblock) – Input and output Max. wire size 12AWG (2.5 mm |
Environmental | IP-54 (per IEC60529) IP-65 with port covers (included) |
Color | Black (RAL 9004) |
Dimensions (H x W x D) | 356 x 651 x 490 mm (14 x 25.6 x 19.3 in) |
Net Weight | 17.9 Kg (39.5 lb) |
Shipping Weight (pair) | 21.0 Kg (46.3 lb) |
Included Hardware | (2) Subwoofer feet, weather input cover, (2) IP-65 port covers |
Packaged Quantity | 1 |
Each EVID-S10.1DB Retail Box Includes:
(1) Electro-Voice EVID-S10.1D F.01U.332.744 2x10" Black Subwoofer Cabinet
(2) Subwoofer Feet
(1) Weather Input Cover
(2) IP-65 Port Covers
