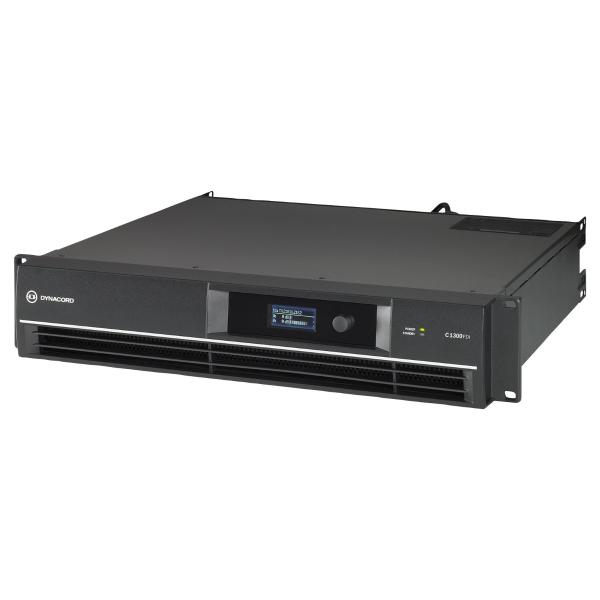

Dynacord C1300FDi DSP 2 x 650W Power Amplifier for Fixed Install Applications

Expected May 31, 2025
Only at IDJ NOW

Fast Shipping
Most products ship same-day

30-Day Price Protection
Find a lower price, you're covered.

5000+ Reviews
90%+5-star reviews

30-Day Returns
Don't Like it? Return it.
Dynacord C Series amplifiers are dedicated installation DSP amplifiers optimized for 24/7 operation. Besides low impedance operation (2 Ohms, 4 Ohms or 8 Ohms) C2800FDi can drive 70 V loudspeaker lines directly without output transformers. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. C Series amplifier utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of fixed install applications. For low cost of ownership a power saving standby mode is available. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
Dynacord C1300FDi DSP 2 x 650W Power Amplifier Features:
- Professional DSP amplifier for live and mobile application.
- Fully integrated professional speaker processing with FIR drive technology.
- Market-leading acoustic performance and rock solid reliability.
- Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0.
- Rock solid amplifier technology engineered in Germany.
- Extremely powerful, proven audio performance.
- Engineered for constant stability at 2 ohms.
- Low and high impedance outputs and remote GPIO control.
- Highly efficient standby power mode reduces running costs and power consumption up to 90%.
- Sophisticated protection circuitry always protects the amplifiers and connected loudspeakers.
- High-performance bulletproof voltage handling.
- On-board DSP includes multi-band PEQs, crossovers, limiters and delay per channel.
- True channel grouping control with extra DSP capabilities including GEQ..
- Intuitive, powerful control software makes configuration and real time control easy – up to 16 amp channels can be
- controlled and monitored simultaneously.
- FIR-Drive combines technologies to create a sophisticated loudspeaker correction and protection system yielding a level of unparalleled performance.
Dynacord C1300FDi Product Specifications:
Load Impedance | 2 Ω | 2.7 Ω | 4 Ω | 8 Ω |
Maximum Output Power, Single Channel | 2300 W | 2000 W | 1400 W | 700 W |
Maximum Output Power, Dual Channel | 2200 W | 1800 W | 1300 W | 650 W |
Maximum Output Power, Bridged | - | - | 4400 W | 2600 W |
Direct Drive Load Capability Dual Channel Bridged |
70 V Operation 2 x 1250 W (0.0 dB) Not recommended1 |
100 V Operation 2 x 1250 W (-3.0 dB) 1 x 1250 W (0.0 dB) |
||
Maximum RMS Voltage Swing THD = 1%, 1 kHz | 78.8 V | |||
Voltage Gain Ref.1 kHz | 32.0 dB | |||
THD at 900 W/4 Ω MBW = 80 kHz, 1kHz | < 0.05% | |||
IMD-SMPTE, 60 Hz, 7 kHz | < 0.1% | |||
DIM30,3.15 kHz, 15 kHz | < 0.05% | |||
Maximum Input Level | +21 dBu | |||
Crosstalk ref. 1 kHz, at 100W/4 Ω | < -80 dB | |||
Frequency Response, ref. 1 kHz | 10 Hz to 21 kHz (±1 dB) | |||
Input Impedance, Active Balanced | 20 k Ω | |||
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 Ω | >107 dB | |||
Output Noise, A-weighted | < -68 dBu | |||
Output Stage Topology | Class H | |||
Power Requirements | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) | |||
Power Consumption ⅛ Maximum Output Power @ 4 Ω | 700 W | |||
Mains Fuse | 240 V/230 V: T15AH; 120 V/100 V: T25AH | |||
Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay | |||
Cooling | Front-to-rear, 3-stage-fans | |||
Ambient Temperature Limits | +5°C to +40°C (40°F to +105°F) | |||
Safety Class | I | |||
Color | Black | |||
Weight | 16.2 kg (35.7 lb) | |||
Remote Power ON/GPIO | Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selection | |||
Signal Processing | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance | |||
Remote Control | SONICUE sound system software ** | |||
Accessories | RMK15 (rear rack mount kit) |
Each C1300FDi Retail Box Includes:
(1) Dynacord C1300FDi DSP 2 x 650W Power Amplifier for Fixed Install Applications
(1) RMK15 Rear Rack Mount Kit
