About This Product

Elation Professional SIXBAR 1000 Linear 12W 6-IN-1 RGBAW+UV LED Uplight

The new SIXBAR 1000 features (12) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield included, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

SIXBAR 1000Features:

  • 30° Beam Angle.
  • ArtNet and KlingNet Support.
  • RDM - Remote Device Management.
  • Individual LED Control.
  • Variable Dimming Curve Modes.
  • Multiple Unit Power Linking.
  • Rugged Die-Cast Aluminum Exterior.
  • Flicker Free Operation for TV and film.
Elation Professional SIXBAR 1000 Specifications



SOURCE
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life



PHOTOMETRIC DATA
8,500 LUX 790 FC @3.3’ (1m) (30° Full ON)
3,660 LUX 340 FC @6.6’ (2m) (30° Full ON)
2,040 LUX 190 FC @9.8’ (3m) (30° Full ON)
1,290 LUX 120 FC @13.1’ (4m) (30° Full ON)
878 LUX 82 FC @16.4’ (5m) (30° Full ON)



EFFECTS
Strobe and Chase Effects
Individual LED Control
Variable and Selectable Dimming Curves



CONTROL / CONNECTIONS
8 DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
4 Button Control Panel and LCD Menu Display
ArtNet + KlingNET Protocol Support
RDM (Remote Device Management)
(2) etherCON Ports
3pin and 5pin DMX In/Out
powerCON Power In/Out



SIZE / WEIGHT
Length: 35.4” (900mm)
Width: 8.1” (206.4mm) *with included glare shield
Vertical Height: 6.1” (155mm)
Weight: 16.0 lbs. (7.3 kg)



ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
145W Max Power Consumption
Power Linking: 6pcs @110V / 15pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm



APPROVALS / RATINGS
CE | cETLus | IP20



INSTALLATION
Rigging: Integrated Dual Rigging Brackets
Working Position: Any (360°)

The SIXBAR 1000 Box Includes:

SIXBAR 1000
powerCON Cable

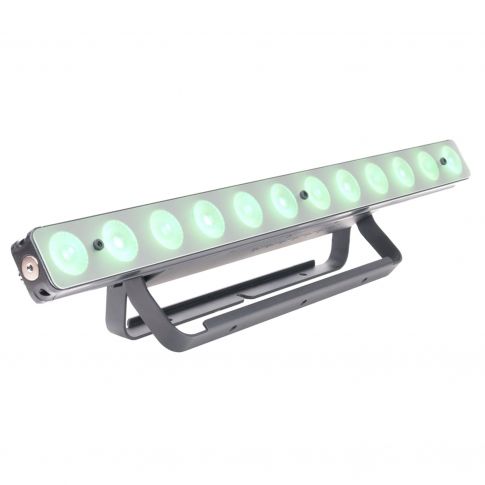

Frost Filter

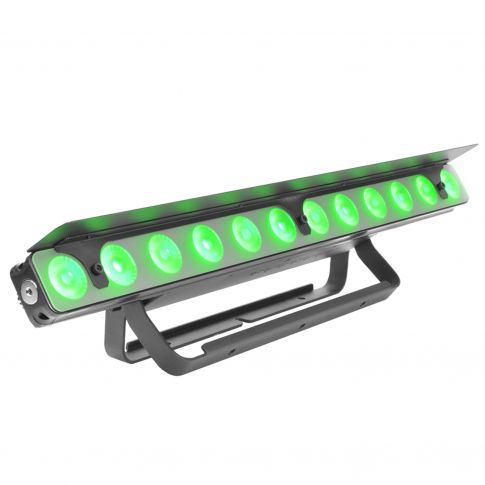

Glare Shield
