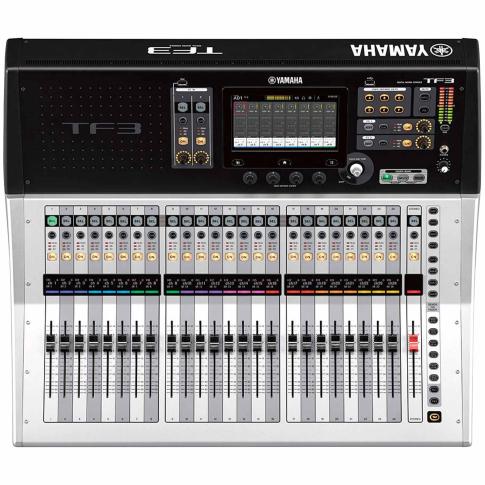

Yamaha TF3 Digital Mixer 24+1 Fader Audio Console


In Stock - Almost Gone

Most orders placed by 2pm ET ship the same day (business days only).

Free Shipping
Best Price + Plus
Check In-Store Availability

Free Shipping on most orders with minimum purchase of $50 or more for a limited time.

Ground shipments only in the lower 48 contiguous United States.

Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.

Any questions, please call 1-800-355-7746 during normal business hours.

Offer subject to change or termination without notice. Not responsible for typographical errors.

The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.

Learn More

1 800 355 7746


I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700


I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100

Ample input capacity and hands-on control in a compact console that can handle a wide range of applications.

Yamaha TF3 24+1 Fader Digital Audio Console Features:

  • 25 motor faders (24 channels + 1 master.)
  • 48 input mixing channels (40 mono + 2 stereo + 2 return.)
  • 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses.
  • 8 DCA groups with Roll-out.
  • 24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs.
  • 16 analog XLR outputs.
  • 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device.
  • 1 expansion slot for NY64-D audio interface card.

Yamaha TF3 24+1 Specifications:
Fader Configuration24 + 1 (Master)
Mixing CapacityInput Channels48 (40 mono + 2 stereo + 2 return)
Aux Buses20 (8 mono + 6 stereo)
Stereo Buses1
Sub Buses1
Input channel functions8 DCA Groups
I/OInputs24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
Outputs16 (XLR)
Expansion slots1
On-board processorsDSP8 Effects + 10 GEQ
USB34x34 USB Audio Interface, 2-track recording via USB Storage Device
General specifications
Sampling frequency rateInternal48 kHz
Signal delayLess than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
Total harmonic distortionLess than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise levelEquivalent input noise–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Residual output noise–85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements100–240 V 50/60 Hz
Power consumption110 W
DimensionsW716 mm (28.2in)
H225 mm (8.9in)
D599 mm (23.6in)
Net weight17.0 kg (37.5lb)
AccessoriesQuick Guide, Power Cord, CUBASE AI download information
OptionsExpansion Card, Foot Switch (FC5)
OthersOperating temperature range: 0–40 °C, Storage temperature range: -20–60 °C

Each TF3 24+1 Retail Box Includes:
(1) Yamaha TF3 24+1 Fader Digital Audio Console
(1) AC power cord
(1) Quick Guide
(1) Nuendo Live (DAW software)
