Yamaha Pro Audio STAGEPAS-1K-MKII 1100W Portable PA System with Dedicated Dolly Package

Expected May 31, 2025
Only at IDJ NOW

Fast Shipping
Most products ship same-day

30-Day Price Protection
Find a lower price, you're covered.

8000+ Reviews
95%+5-star reviews>

30-Day Returns
Don't Like it? Return most items.
More Practical. More Professional. More Powerful. The STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, delivering professional-level audio performance with a simple setup that enables aspiring artists to focus on their music and get the most out of their performances. Adding an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII boasts the same combination of lightweight cabinet design, professional mixing functions, and simple operability, that has elevated the STAGEPAS all-in-one package above all other portable PAs. By adopting a concert-quality mixer and speaker, we have raised the bar for portable PA by utilizing our unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.
Simple setup and control allow you to focus on your performance. The STAGEPAS 1K mkII comes equipped with a wealth of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE which allows you to adjust optimized compression settings like "Speech" or "Music" to match various applications. All adjustments can be done simply with one knob, making the perfect mix fast and easy without a complex workflow letting you focus on your performance. A 1100W amplifier drives the array speaker with 10 small-diameter 1.5-inch units, as well as a class-leading 12-inch subwoofer. The impressive 170° horizontal and 30° vertical coverage area delivers consistent performance over long distances, projecting uniform, high-quality sound from the front to the rear of the audience. Compact yet powerful package. Despite its lightweight and compact cabinet construction, the STAGEPAS 1K mkII features a high-output 1100 W amplifier powering a high-frequency array speaker system with 10 x 1.5-inch drivers and a large 12-inch subwoofer, producing best-in-class sound pressure levels of up to 125 dB SPL. An impressive 170° horizontal and 30° vertical coverage delivers clear, high-quality sound consistently throughout a wide listening area. The high-frequency speaker array is comprised of 10 x 1.5-inch small diameter speakers. By adopting a J-curve array configuration, the high-frequency unit achieves coverage of 170° horizontal and 30° vertical. With such a long, 10-driver array design the STAEGEPAS 1K mkII can deliver clear, high quality sound consistently over longer distances from the front to the rear of the audience.
Class-leading 12-inch "compact" subwoofer. The subwoofer features a 12-inch speaker unit which is hardly "compact," and actually the largest in its class. Despite housing a 12-inch speaker unit that is the largest in its class, the STAGEPAS 1K mkII boasts the smallest cabinet on the market for a subwoofer of this size and power. By incorporating Yamaha's own Twisted Flare Port™ technology to reduce port wind noise that can occur with compact bass-reflex subwoofers, the low-end output is maximized, producing very deep, powerful, distortion-free bass. Also at the top of its class for output power, the 1100W Class-D amplifier module is capable of delivering an impressive 125 dB SPL from the deceptively compact speaker cabinet. And just as importantly, we've leveraged Yamaha's decades-long experience as a manufacturer of professional audio products, and innovator of related technologies to ensure that with great power comes great stability, and that the STAGEPAS 1K mkII maintains the same accurate, superior-quality sound even at high output. Professional functionality with simple operation. Yamaha has been developing innovative digital mixers for professional engineers around the world for decades. the STAGEPAS 1K mkII's digital mixer incorporates that wealth of expertise, featuring an intuitive UI that makes it possible to dial in otherwise complex operations with a single knob, reducing setup time and streamlining system operation and allowing users to focus on their performance. With outstanding flexibility for a PA system of this size, the 5-channel digital mixer features three channels of mono microphone/line inputs and stereo inputs, with two of the mono input channels equipped with Hi-Z connectivity for direct input of acoustic-electric guitars and other instruments. In addition to Phone and 1/8-inch mini jacks, the stereo connections support playback with Bluetooth devices as well as a wide range of input sources from instruments to CDs, PCs and smartphones.
Yamaha Pro Audio STAGEPAS-1K-MKII PA System Features:
- 1100W power output.
- Biggest in the class 12-inch subwoofer for low frequency.
- 1.5-inch x10 slim line array speaker for high frequency.
- Digital mixer (3 mono mic/line + 1 stereo line.)
- Multi band comp "MODE" for master output.
- 1-knob EQ per channel.
- High resolution SPX digital reverb (4 types, parameter control.)
- Priority Ducker for stereo channel.
- 4 band PEQ per channel via remote control APP "STAGEPAS Controller."
- 2x Hi-Z (high impedance) inputs.
- Link out and monitor out.
- Dedicated cover included.
- Optional reverb foot switch (FC5.)
- Optional dolly (DL-SP1K) for more portability.
Yamaha Pro Audio STAGEPAS-1K-MKII Product Specifications:
Type | Powered subwoofer with a line array speaker | |
---|---|---|
Mixing capability | Mixing channels | 5 (Mono x3 + Stereo x1) |
Input channel functions | Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST | |
Output channel functions | MODE (SPEECH/MUSIC/CLUB) | |
I/O | Inputs | Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1 |
Outputs | Link out x1, Monitior out x1 | |
Bluetooth | Bluetooth Ver.5.0, A2DP (SBC, AAC) | |
Control and others | Reverb foot switch, STAGEPAS Controller (iOS/Android app) | |
On-board processors | DSP | SPX digital reverb (4 program, parameter control) |
Speaker type | Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed | |
Frequency range (-10dB) | 37 Hz - 20 kHz | |
Coverage area | H170゚ x V30゚ | |
Crossover | 240 Hz | |
Maximum output level (1m; on axis) | 125 dB SPL | |
Components | LF | Powered subwoofer: 12” (30 cm) Cone |
HF | Line array speaker: 1.5” (3.8 cm) Cone x 10 | |
Amplifier class | Class-D | |
Power rating | Dynamic | 1100 W |
Power consumption | 25 W (Idle), 91 W (1/8 power) | |
Power requirements | Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz | |
Handle | Top of powered subwoofer x1 | |
Dimensions (W x H x D) | System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each) | |
Weight | System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each) | |
Accessories | Power cord x 1, Cover x 1 | |
Options | Yamaha DL-SP1K (Dedicated dolly), FC5 (foot switch for reverb ON/OFF) |

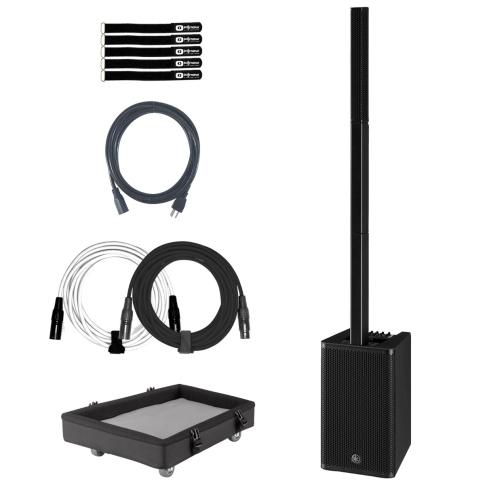

This Package Includes:
(1) Yamaha Pro Audio STAGEPAS-1K-MKII 1100W Portable PA System Subwoofer
(1) Yamaha Pro Audio STAGEPAS-1K-MKII 1100W Portable PA System Line array speaker
(1) Fitted cover
(2) Spacers
(1) Power cord
(1) Clutch 20' Sure-Fit XLR Female to XLR Male Microphone / Speaker Cable
(1) Clutch 20' White Sure-Fit XLR Female to XLR Male Microphone / Speaker Cable
(1) Clutch CL-EC16310 Black 10FT 16 Gauge AC Extension Cord
(1) Yamaha DL-SP1K Dolly for STAGEPAS 1K
(5) 8" Reusable Hook and Loop Cable Ties
