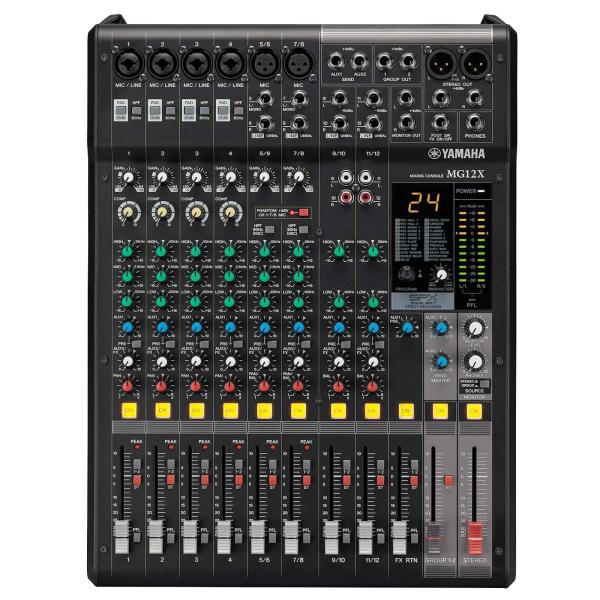

Yamaha Pro Audio MG12XCV 12-Input 4 Bus Mixer with Effects

SKU: MG12XCV
$404.99
Backordered

Expected June 30, 2026

Same Day
Shipping
Best Deal
Guarantee
Authorized
Dealer
Real Gear
Experts
Key Highlights
  • Rugged, Powder-coated steel chassis for superior durability.
  • Discrete Class-A microphone preamps .
  • Built-in SPX digital effects with 24 programs.
  • Switchable +48V Phantom power.
Get Expert Help Before You Buy

Get fast answers on setup, compatibility, and system matching.

✔ No pressure. Just real help.

|
Housed in a rugged steel chassis, the MG12X CV can accommodate up to 12 inputs and offers a balanced stereo output. Featuring D-Pre discrete Class A microphone preamplifiers for pristine sound, it includes Aux busses for the built-in SPX effect with 24 presets and another for monitoring. Four channels of single-knob compression are available. The MG12X can accept XLR, ¼" Phone and RCA type pin jack inputs, and offers XLR and Phone outputs. The MG12X offers faders, and lit channel on/off switches for easy visual indication of settings. A footswitch input allows hands free effect muting. The MG12X CV can be rack mounted witht the optional RK-MG12 Rack mount kit.

Yamaha Pro Audio MG12XCV Mixer Features:

  • Rugged, Powder-coated steel chassis for superior durability.
  • Discrete Class-A microphone preamps .
  • Built-in SPX digital effects with 24 programs.
  • Switchable +48V Phantom power.
  • Color coded controls offer easy operation.

Yamaha Pro Audio MG12XCV Product Specifications:
Frequency Response
Input to STEREO OUT		+0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min
Total harmonic distortion (THD+N)
Input to STEREO OUT		0.03 % @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min
Hum & Noise
(20 Hz to 20 kHz)		Equivalent Input Noise: -128 dBu (Mono Input Channel, Rs: 150 Ω, GAIN knob: Max)
Residual Input Noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk (1kHz)-78dB
Input ChannelsMono [MIC/LINE]: 4
Mono/Stereo [MIC/LINE]: 2
Stereo [LINE]: 2
Output ChannelsSTEREO OUT: 2
MONITOR OUT: 1
PHONES: 1
AUX SEND: 2
GROUP OUT: 2
BusSTEREO: 1
GROUP: 2
AUX SEND: 2 (incl. FX)
Input Channel FunctionPad (Mono): 26dB
HPF (Mono, Mono/Stereo): 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP (Mono): "1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec"
High: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ Mid: Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
Low: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
Peak LED (mono): LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter2x12 -segment LED meter [PEAK, +10, +6,+3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Internal Digital EffectSPX Algorithim: 24 programs
Phantom Power Voltage+48V
Power RequirementsAC 100 - 240 V, 50/60 Hz
Power Consumption22W
Dimensions (W x H x D)308 mm x 118 mm x 422 mm
(12.1" x 4.6" x 16.6")
Net Weight4.2 kg (9.3 lbs.)

Each MG12XCV Retail Box Includes:
(1) Yamaha Pro Audio MG12XCV 12-Input 4 Bus Mixer with Effects
