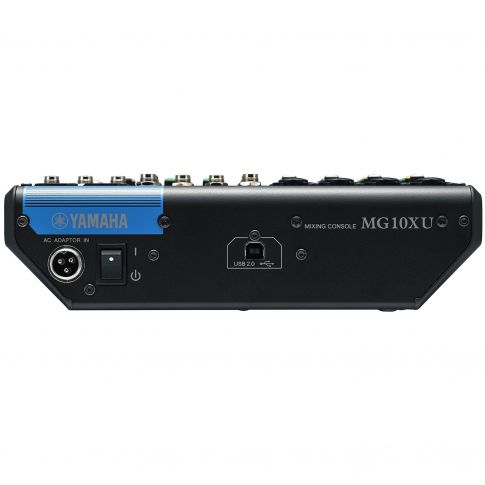

Yamaha MG10XU Specifications:
D-PRE (Discrete Class-A Mic Preamps)This is where it all starts. Everything you do as a sound engineer is dependent on the quality of your preamps, which determines the direction your mix will take, and ultimately how good it is going to sound. MG Series mixing consoles feature Yamaha's studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance. Delivering fat, natural sounding bass and smooth, soaring highs, with very low distortion, D-PRE preamps possess an impressively wide frequency range that allow them to handle signal from any audio source without overly amplifying any specific elements of the sound. Having such a pure sonic platform to build on will ultimately save you time and effort by eliminating the need for excessive EQing or additional effects processing in order to "fix" your mix.
High Quality Sound Op-ampThe head amp determines sound quality, and op-amp integrated circuits are one of the most important parts in the head amp circuit. MG Series mixers feature new, high-quality, custom made MG01 op-amps that we developed in cooperation with the semiconductor manufacturer. Although many other Op-amps prioritize electrical design and efficiency, we worked directly with the semiconductor manufacturer to focus on sound quality first. MG01 op-amps feature redesigned circuitry in which even the internal components and wiring have been optimized, and use materials such as high-quality silicon wafers and copper wire to achieve superb resolution.
Switchable Phantom Power & PAD SwitchWith phantom power, MG Series consoles allow you to take full advantage of the greater frequency response and high sound quality of condenser microphones. The input channel with PAD switch accepts MIC to line level of inputs, PAD Switch attenuates high input signals that often accompany mic'ed instruments during performance, avoiding the clipping that can seriously affect your mix.
When was the last time you heard guitar without EQ or a completely unprocessed vocal on one of your favorite songs? Probably never. Yamaha mixers are famous for their flat response and sonic purity, but it often takes more than a perfectly-captured instrumental performance or vocal to achieve a professional-sounding mix. Equipped with some of the same state-of-the-art functionality featured on Yamaha's high-end consoles, the MG Series gives you the tools you need to produce high quality sound that is uniquely your own.
1-knob CompressorsCompression plays an essential role in just about any recording or sound reinforcement environment by altering the level of dynamics of an audio signal when you need livelier guitars, punchier bass lines, a tighter snare, or a cleaner vocal sound. However, it can take countless hours to master the complexities of even the most basic outboard compression units and use them effectively. Originally a Yamaha innovation, 1-knob compressors are now an industry standard that gives you instant access to optimized compression settings via a single rotary control.
EQ and High-pass FiltersThere's nothing more useful than reliable equalization when you need nuanced management of your tone. The MG Series benefits from Yamaha's unparalleled experience in designing pro audio gear, featuring 3-band equalizers on all mono channels for precise control of your sound. High-pass filter allows you to eliminate unwanted low-frequency noise, for a smoother, cleaner mix.
AUX / Effect Sends / GroupMG Series mixers feature up to AUX sends for expanding your sound reinforcement or recording setup, allowing you to incorporate additional effects, output to external recording devices, or feed to an monitoring system. (except for MG06 / 06X) Master send controls are also provided. The MG06 / 06X, MG10 / 10XU / 10XUF and MG12XUK have a single stereo bus. All other models additionally feature one or two stereo group buses and outputs that can be used for convenient channel grouping. Assign switches for the stereo and group buses are located next to each channel fader.
A variety of input / output connectorsAll models feature high-quality Neutrik balanced XLR connectors on mono microphone/line channels and XLR equipped stereo channels. Each of the mono inputs is equipped with combo jack and accepts both MIC and LINE level signals. Two of the stereo inputs are equipped with XLR and two phone connectors with XLR accepting MIC level signals while two phone connectors accepting LINE level signals and can be used either mono or stereo. (except for MG10 / 10XU / 10XUF / 12XUK) The function of another two stereo channel vary depending on model: With MG20 / 20XU, XLR accepts MIC level signal and two RCA connectors accepts LINE level signals and can be used either mono or stereo. With MG12 / 12XU and MG16 / 16XU, two phone connectors accept LINE level signals as stereo. Additionally, each of the stereo channel features 2TR in (RCA connectors) and can be used as independent input from external audio sources such as CDs. MG10 / 10XU / 10XUF and MG12XUK are equipped with additional stereo channel with a pair of phone jack that accepts LINE levels. With XU models, any incoming source that are sent via USB can be assigned to one of the stereo channel. In addition to the main stereo outputs (XLR L/R, TRS phone L/R), MG Series mixing consoles are equipped with a comprehensive suite of output connectors, including GROUP OUT (TRS phone), AUX/FX OUT (TRS phone), MONITOR OUT (TRS phone L/R), and HEADPHONE OUT (stereo phone) connectors, allowing master outputs to be chosen to suit specific applications such as monitoring or mastering.
LED level meteringEasy-to-read LED level metering allows output levels to be monitored with precision.
For gigging, recording, and installed applications alike, your console can be subjected to a wide range of environmental conditions and hazards. Excessive humidity, unstable power supplies, and the rigors of road travel in general can take a serious toll on a mixing console, often causing expensive, time-consuming repairs, and reducing its lifespan. The MG Series has been redesigned with an emphasis on durability, incorporating practical features that offer greater flexibility while ensuring peak performance for many years to come.
Metal ChassisBuilt to last, MG Series mixers feature a rugged, impact-resistant, powder-coated metal chassis, offering an unrivaled level of durability. With a sleek design contoured for optimal convection cooling, the internal layout separates the power supply from the analog circuitry for superior noise reduction, and further extends the life of the components inside. To further ensure reliable performance, knob control placement above the surface of the chassis diverts any impact or pressure on the knobs to the chassis itself and not the circuit board or components underneath.
Internal Universal Power SupplyThanks to a highly-efficient internal universal power supply, MG Series consoles offer worry-free operation in any region around the globe—even in environments prone to potentially damaging power fluctuations. An internal power supply also simplifies rack mounting of the console for installed applications, eliminating the need for a bulky adapter or additional connections. (* MG12 / 16 / 20 / 12XU / 16XU / 20XU)
Optional Microphone stand Adapter "BMS10-A" available.
| Outline |
MG10XU |
| I/O |
Phantom power |
+48 V |
| Input Channels |
Mono[MIC/LINE] |
4 |
| Stereo[LINE] |
3 |
| Output Channels |
STEREO OUT |
2 |
| MONITOR OUT |
1 |
| PHONES |
1 |
| AUX SEND |
1 |
| Bus |
Stereo: 1, AUX: 1 |
| Input Channel Function |
PAD |
26 dB (Mono) |
| HPF |
80 Hz, 12 dB/oct (Mono) |
| COMP |
1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH |
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID |
Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking |
| EQ LOW |
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED |
LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter |
2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] |
| General specifications |
MG10 |
| Total harmonic distortion |
0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response |
+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Hum & noise level |
Equivalent input noise |
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise |
-102 dBu (STEREO OUT, STEREO LEVEL knob: Min) |
| Crosstalk |
-83 dB |
| Power requirements |
PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha |
| Power consumption |
22.9 W |
| Dimensions |
W |
244 mm (9.6") |
| H |
71 mm (2.8") |
| D |
294 mm (11.6") |
| Net weight |
1.9 kg (4.19 lbs.) |
| Accessories |
Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A |
| Others |
Operating Temperature: 0 to +40˚C |
| MG10XU Analog Input Characteristics |
|
| Input terminal |
PAD
26 dB |
GAIN Trim
Position |
Actual Load
Impedance |
For Use With
Nominal |
Input level |
Connector |
| Sensitivity *1 |
Nominal |
Max. before clip |
MIC/LINE
1 – 4 |
OFF |
+64 dB |
3kΩ |
50-600Ω
Mics/Lines |
-72 dBu
(0.195 mV) |
-60 dBu
(0.775 mV) |
-40 dBu
(7.75 mV) |
Combo
jack *2
(Balanced) |
| +20 dB |
-28 dBu
(30.9 mV) |
-16 dBu
(122.8 mV) |
+4 dBu
(1.228V) |
| ON |
+38 dB |
-46 dBu
(3.884 mV) |
-34 dBu
(15.46 mV) |
-14 dBu
(154.6 mV) |
| -6 dB |
-2 dBu
(615.6 mV) |
+10 dBu
(2.451 V) |
+30 dBu
(24.51 V) |
LINE
5/6, 7/8 |
– |
– |
10kΩ |
600Ω
Lines |
-22 dBu
(61.56 mV) |
-10 dBu
(245.1 mV) |
+10 dBu
(2.451 V) |
Phone jack *5 RCA Pin
(Unbalanced) |
| LINE 9/10 |
Phone jack *5
(Unbalanced) |
| MG10XU Analog Output Characteristics |
|
| Output Terminals |
Actual source
impedance |
For Use With
Nominal |
Output level |
Connector |
| Nominal |
Max. before clip |
| STEREO OUT [L, R] |
75Ω |
600Ω Lines
+20 dB |
+4 dBu
(1.228 V) |
+24 dBu
(12.28 V) |
XLR-3-32 *3
Phone jack *5
(Balanced) |
MONITOR OUT [L, R]
AUX SEND |
150Ω |
10kΩ Lines |
+4 dBu
(1.228 V) |
+20 dBu
(7.750 V) |
Phone jack *4
(Impedance Balanced) |
| PHONES |
110Ω |
40Ω Phones |
3mW + 3mW |
100mW + 100mW |
Stereo phone jack |
