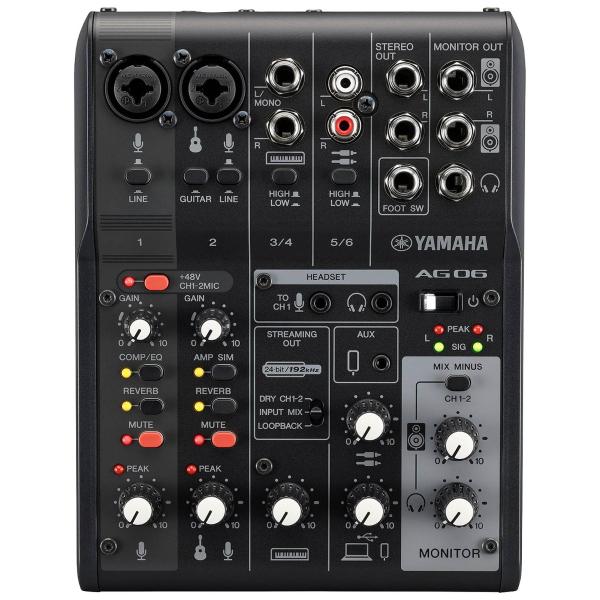

Yamaha Pro Audio AG06MK2-B Black 6-Channel Mixer/USB Interface for IOS/Mac/PC


We'll let you know once this product is back in stock. Simply add your email address and click the "Notify Me" button. As soon as we have more you will receive a notification.

Item Backordered

Questions? Call 1-800-355-7746 or Chat below

Only at IDJNOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

5000+ Reviews

5000+ Reviews

90%+5-star reviews

30-Day Returns

30-Day Returns

Don't Like it? Return it.

Two heads are better than one. The same can be said for microphone inputs, especially when it comes to live streaming. The AG06MK2 offers the same user-friendly configuration and operation that has become synonymous with the AG series, but also comes equipped with two phantom-powered mic inputs for condenser microphones. Combined with flexible connectivity, including an upgraded 4-pole mini I/O, the AG06MK2 opens a broader range of dialogue, interview, musical ensemble performance, or other streaming applications that the AG01 or AG03MK2 setups can’t cover.

The AG06MK2 allows you to connect two condenser microphones of your choice, as well as two stereo line inputs for instruments, and an upgraded 4-pole mini jack (TRRS) for smartphone input/output capability. Of course, it’s also possible to add audio from devices connected via USB in LOOPBACK mode as with previous AG models. This diverse range of connectivity makes it possible to use high-sensitivity microphones, along with each of the audio sources, for a variety of streaming applications such as podcasts with dialogue, interviews, vocal performances with an acoustic instrument, or even a live band. With a design similar to a mixing console, the AG06MK2 is equipped with a variety of physical controls that help you shape and manage the audio you stream to your audience. The newly added mute button allows you to cut your mic input at a moment's notice if your situation demands it, and can even be controlled using Yamaha’s FC5 dedicated foot switch (sold separately) which can also add reverb to your signal while keeping your hands free for other tasks. Sound quality can often be a deciding factor for whether someone will tune in to your live streaming content. With the adoption of USB-C, and the requisite improved internal circuitry, the AG06MK2 significantly elevates sound quality, giving your streaming a more professional edge.

Regardless of your particular streaming application, you’ll want to give it some depth and dimension, which adds a level of professionalism. The AG06MK2 comes equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style, and a 1-TOUCH amp simulator to add authenticity and punch to your guitar input. All these tools are processed by the internal DSP chip so there’s no delay, making it particularly valuable for live streaming when real-time accuracy is crucial. And when you want to capture pure, raw recordings through your preferred microphone and edit them later, you have the option to turn these effects off completely. AG Controller software allows users to easily and precisely check and configure the DSP audio processing inside the AG. Offering two modes of operation, "Simple" and "Detail," AG Controller gives users of varying music production experience detailed management of their audio from any Windows/Mac or iOS device connected to the AG06MK2 via USB. The sleek, slim, and compact body of the AG06MK2 can be placed on virtually any flat surface. By combining it with the optional BMS-10A adaptor, it can be installed on a microphone stand. It can also be connected to a mobile battery to configure a minimalistic, mobile streaming station anywhere.

Yamaha Pro Audio AG06MK2-B Black Mixer/Interface Features:

    • A 6-channel live streaming mixer with USB audio interface.
    • Two condenser microphones can be used simultaneously.
    • +48 V phantom power on CH1-2 input for condenser mics or Dl boxes.
    • Hi-Z input for guitars on CH2.
    • High resolution (24-bit, 192 kHz) 2-track audio recording and playback.
    • 4-pole mini input/output (TRRS) to support a wider range of streaming applications.
    • Flexible inputs and LOOPBACK function ideal for live streaming or recording.
    • Mute button for convenient live streaming.
    • Easy control and pro sound with 1-TOUCH effects (COMP/EQ, REVERB and Amp Simulator.)
    • AG Controller (Windows/Mac/iOS ) for precise parameter control.
    • Windows/Mac support by USB-C connection.
    • iOS connectivity via Apple camera adaptor (requires external USB power supply.)
    • Android supported by 4-pole mini input/output (TRRS.)
    • USB-C power input (5 V DC, 900 mA).
    • Cubase Al, WaveLab Cast, Cubasis LE and Rec'n'Share are available.

Yamaha Pro Audio AG06MK2-B Product Specifications:
Input Channels Mono[MIC/LINE] 2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
Stereo[LINE] 2 - L/R Stereo: Phone, RCA
Smartphone 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
Output Channels PHONES 2 - PHONES / HEADSET PHONES *Cannot be used simultaneously
Smartphone 1 - 4-pole mini input/output (TRRS)
Bus 1 Stereo
Functions MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
On-board processors DSP COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
USB USB Audio 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input 1 - Type-C, 5 V DC, 900 mA
Power requirements 5 V DC, 900 mA
Power consumption Max. 4.5 W
Dimensions W 152 mm (6.0")
H 63 mm (2.5")
D 201 mm (7.9")
Net weight 0.9 kg (2.0 lbs)
Included Accessories USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Others Operating Temperature: 0 to + 40 ℃

Each AG06MK2-B Retail Box Includes:

(1) Yamaha Pro Audio AG06MK2-B Black 6-Channel Mixer/USB Interface for IOS/Mac/PC
(1) USB cable (USB-C to USB-A), 1.5 m
(1) Safety Guide
(1) Quick Guide
(1) WaveLab Cast Download Information
(1) Cubase AI Download Information

Included Software
Cubase AI music production software
WaveLab Cast for audio production and editing
