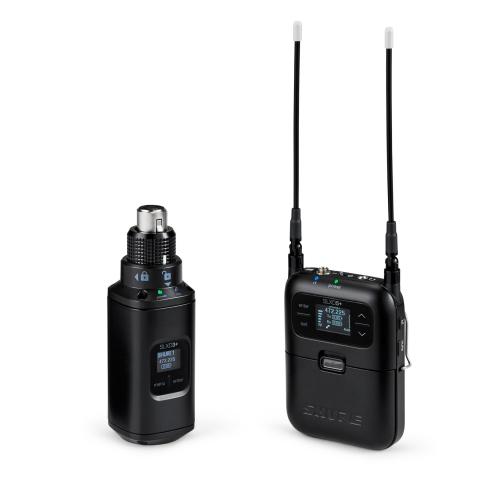

Shure SLXD35+-G57 Portable Digital 1-Channel Wireless System with Plug-On Transmitter (Frequency Band: G57)
Questions? Call 1-800-355-7746 or Chat below
The SLXD5+ single channel portable wireless receiver is at home on top of your camera or in an audio bag providing efficient long-range UHF transmission and easy-to-use setup features to deliver wireless excellence, wherever required. Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.
The SLXD5+ Portable Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package for use with digital cameras or in audio bag applications. Featuring pristine 24-bit digital audio clarity, a wide 138 MHz tuning range and easy-to-use setup features, the SLXD5+ is at home on top of your camera or in an audio bag. With a dedicated ShowLink Ease control link, the SLXD5+ stays in sync with SLX-D+ transmitters to manage interference, scan for new channels and update for clear transmission automatically. Coordinate and monitor large channel configurations with many sources using Multi-Mic Mode. Includes SLXD5+ Portable Wireless Receiver, zippered carrying pouch, non-conductive cold shoe mount adapter, two AA alkaline batteries, 18" locking 3.5 mm-to-XLR cable, locking 3.5mm audio extender cable.
Shure SLXD5+ Single Channel Portable Wireless Receiver Features:
- Single channel, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use.
- Transparent 24-bit digital audio quality with >118 dB dynamic range.
- Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage.
- Up to 11 simultaneous systems in 6 MHz TV bands.
- Up to 14 simultaneous systems in 8 MHz TV bands.
- Dual 1/8" outputs including a headphone monitor out and switchable line/mic output.
- Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference.
- With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver.
- Changing the transmitter frequency once open frequency is identified.
- Adjust transmitter gain.
- Automatically find and deploy new frequency to both receiver and transmitter upon interference.
- Lock and unlock transmitter controls.
- Transmitter firmware updates.
- Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls.
- Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth.
- Patented Shure Digital Feedback Reducer software is embedded in every SLX-D+ receiver, to automatically reduce unwanted audio feedback, should it ever occur.
- Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind.
- Up to 5.5 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.
The SLXD3+ bodypack transmitter unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering wireless excellence, wherever required, wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.
The SLXD3+ Wireless Plug-On Transmitter converts any XLR source, including dynamic and condenser microphones, for use as an SLX-D+ wireless transmitter - to send transparent, 24-bit digital audio to SLX- D+ wireless receivers via a rock-solid RF connection. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Featuring a patented locking ring for a secure, wobble-free connection, SLXD3+ transmitters stay in sync with SLX-D+ receivers, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device. Includes SLXD3+ Plug-On Transmitter, a pair of AA alkaline batteries, zippered carrying pouch and a leather protective sleeve with an integrated belt clip.
Shure SLXD3+=-G57 Plug-On Digital Wireless Transmitter Features:
- Convert any XLR source for use within SLX-D+ wireless systems.
- Provides +12-48 VDC phantom power for use with condenser microphones.
- Patented locking mechanism for secure, wobble-free connection.
- Transparent 24-bit digital audio quality with >118 dB dynamic range.
- Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage.
- Up to 11 simultaneous systems in 6 MHz TV bands.
- Up to 14 simultaneous systems in 8 MHz TV bands.
- Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference.
- With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver.
- Changing the transmitter frequency once open frequency is identified.
- Adjust power output level.
- Lock and unlock transmitter controls.
- Transmitter firmware updates.
- Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth.
- Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind.
- Up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.
Shure SLXD5+ Product Specifications:
General
Dimensions (H × W × D): 4.21 × 2.68 × 1.0 in (107 × 68 × 25.3 mm)
Weight: 1.8 lb (182 g)
Housing: Aluminum
Power Requirements Battery: Rechargeable Li-Ion or 1.5 V AA batteries
Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C
RF Input
Spurious Rejection: >75 dB Typical
Impedance: 50 Ω
Phantom Power Protection: Yes
Antenna Type 1/4 Wave Whip
Audio Output
Audio Frequency Response: 20 Hz - 20 kHz (+1, -3 dB)
Connector Type: 1/8" (3.5 mm), ×2
Configuration Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground
Configuaration Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
Impedance (Camera): Balanced (Mono) Line: 450 Ω, Balanced (Mono) Mic: 240 Ω, Dual Mono Line: 400 Ω, Dual Mono Mic: 200 Ω
Full Scale Output: Camera (Balanced Line): 15 dBV
Headphone: 13 mW @ 64 Ω Load
Shure SLXD3+ Product Specifications:
General
Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
Dimensions (Dia. × L): 4.9 × 1.6 × 1.6 in (126 × 41 × 41 mm)
Weight: 7.0 oz. (200 g)
Housing: Aluminum, Zinc Alloy, PC/ABS
Audio Input
Configuration: XLR
Maximum Input Level 1 kHz @ 1% THD: Pad -12 dB: 20.5 dBV, 0 dB: 8.5 dBV, Boost +12 dB: -3.5 dBV
Note: Dependent on Microphone Type
Phantom Power: +48 V (7 mA maximum), +12 V (15 mA maximum)
RF Output
Antenna Type: Dipole
Occupied Bandwidth: <200 kHz
Modulation Type: Shure Propietary Digital
Power: 1 mW/10 mW/30 mW (Varies by region.)
Specific Absorption Rate (SAR): <0.17 W/kg
Each SLXD35+-G57 Retail Box Includes:
(1) Shure SLXD5+ Portable Receiver for Camera and Audio Bag(1) Shure SLXD3+ Plug-On Transmitter with Locking Ring
(2) Carrying Bags
(1) WA311 Non-Conductive Cold Shoe Mount Adapter
(4) AA Alkaline Batteries
(1) Locking 3.5mm-to-XLR Cable (18")
(1) Locking 3.5mm Audio Extender Cable (16")
(1) Leather Protective Sleeve with Integrated Belt Clip
