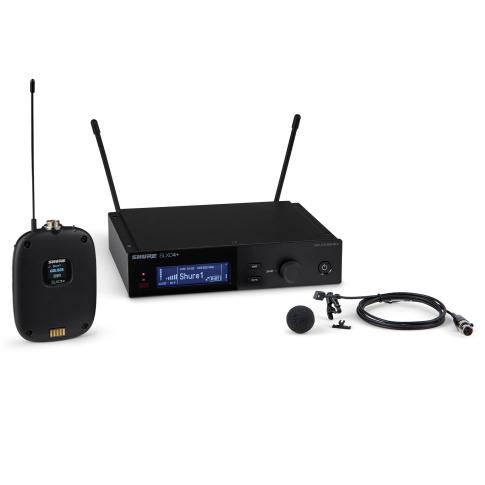

Shure SLXD14+/93-G57 Digital 1-Channel Wireless Microphone System with WL93 Lavalier Microphone (Frequency Band: G57)
Questions? Call 1-800-355-7746 or Chat below
SLXD4+ single channel half-rack receiver unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike, that delivers wireless excellence, wherever required. Wide- tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.
The SLXD4+ is a single channel half-rack receiver for use with SLX-D+ transmitters. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With the crystal-clear audio and rock-steady RF that SLX-D+ provides, the SLXD4+ features a wide 138 MHz tuning range that stays in sync with SLX-D+ transmitters, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Includes SLXD4+ Single Channel Receiver, two ¼" antennas, two bulkhead adapters, two 22" BNC cables, rack mount kit and power supply.
Shure SLXD4+ Digital 1-Channel Wireless Receiver Features:
- Transparent 24-bit digital audio quality with >118 dB dynamic range.
- Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage.
- Up to 11 simultaneous systems in 6 MHz TV bands.
- Up to 14 simultaneous systems in 8 MHz TV bands.
- Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference.
- With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver.
- Changing the transmitter frequency once open frequency is identified.
- Adjust transmitter gain.
- Automatically find and deploy new frequency to both receiver and transmitter upon interference.
- Lock and unlock transmitter controls.
- Transmitter firmware updates.
- Link 2nd transmitter to a receiver channel.
- Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth.
- Patented Shure Digital Feedback Reducer software is embedded in every SLX-D+ receiver, to automatically reduce unwanted audio feedback, should it ever occur.
- Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind.
- Up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.
- Single channel half-rack design with rugged metal construction.
The SLXD1+ bodypack transmitter unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering wireless excellence, wherever required, wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.
The SLXD1+ Digital Wireless Bodypack transmitter sends transparent, 24-bit digital audio to SLX-D+ wireless receivers via a rock-solid RF connection. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With a durable and sleek design, wide-tuning SLX-D+ bodypack transmitters are easily concealed on-talent or as a part of wardrobe and stay in sync with SLX-D+ receivers, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device. The TA4F/TQG connector accepts a wide range of lavalier, instrument and headset microphones. Includes SLXD1+bodypack transmitter, a pair of AA alkaline batteries and a zippered carrying pouch.
Shure SLXD1+=-G57 Digital Bodypack Transmitter Features:
- Transparent 24-bit digital audio quality with >118 dB dynamic range.
- Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage.
- Up to 11 simultaneous systems in 6 MHz TV bands.
- Up to 14 simultaneous systems in 8 MHz TV bands.
- Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference.
- With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver.
- Changing the transmitter frequency once open frequency is identified.
- Adjust transmitter gain.
- Lock and unlock transmitter controls.
- Transmitter firmware updates.
- Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth.
- Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind.
- Up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.
- Ergonomic and durable plastic construction.
Shure SLXD4+ Product Specifications:
General
Dimensions (H × W × D): 1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)
Weight: 2 lbs (900 g) without antennas
Housing: Galvanized Steel
Power Requirements: 15 VDC @ 360 mA Supplied by external power supply (tip positive)
RF Input
Spurious Rejection: >75 dB Typical
Connector Type: BNC
Impedance: 50 Ω
Audio Output
Gain Adjustment Range: -18 to +42 dB in 1 dB steps
Configuration 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio -, Sleeve=ground)
Configuration XLR: Balanced (1=ground, 2=audio +, 3=audio -)
Impedance: 1/4" (6.35 mm): 1.1 kΩ (550 Ω Unbalanced), XLR (line): 500 Ω (250 Ω Unbalanced), XLR (mic): 150 Ω
Full Scale Output: 1/4" (6.35 mm): +18 dBV differentially (+12 dBV single), XLR (LINE setting): +18 dBV, XLR (MIC setting): -12 dBV
Mic/Line Switch: 30 dB pad
Phantom Power Protection: 1/4" (6.35 mm): Yes, XLR: Yes
Networking
Network Interface: Single Port Ethernet 10/100 Mbps
Network Addressing Capability: DHCP or Manual IP address
Maximum Cable Length: 100 m (328 ft)
Shure SLXD1+=-G57 Product Specifications:
General
Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
Dimensions (H × W × D): 3.86 × 2.68 × 1.0 in (98 × 68 × 25.5 mm)
Weight: 3.1 oz (89 g)
Housing: PC/ABS
Audio Input
Connector: 4-Pin male mini connector (TA4M)
Configuration: Unbalanced
Impedance: 1 MΩ
Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
Preamplifier Equivalent Input Noise (EIN): -118 dBV
RF Output
Antenna Type: 1/4 Wave
Occupied Bandwidth: <200 kHz
Modulation Type: Shure Propietary Digital
Power: 1 mW/10 mW (Varies by region.)
Each SLXD14+/93-G57 Retail Box Includes:
(1) Shure SLXD4+ Receiver with Bluetooth
(1) Shure SLXD1+ Bodypack Transmitter with WL93 Miniature Lavalier
(1) Rack Mount Kit
(1) Carrying Bag
(2) AA Batteries
(2) 1/4 Wave Antennas
(2) Bulkhead Adapters
(2) 22" BNC Cables
