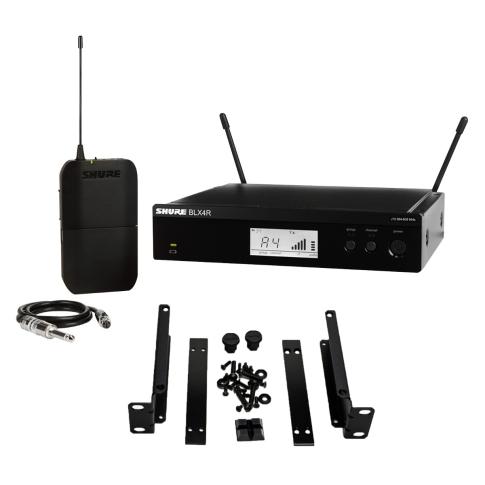

Shure BLX14R-H11 Wireless Rack-mount Guitar System (H11 Frequency Band)
SKU #: BLX14R-H11
$379.00
Reg.
As low as $38/mo or 0% APR with
Item Backordered
Expected May 31, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
5000+ Reviews
90%+5-star reviews
30-Day Returns
Don't Like it? Return it.
Making the jump to wireless should be liberating, not challenging. Shure BLX Wireless Systems combine professional quality sound with simple setup and an intuitive interface for performance you can trust right out of the box. Precision built and available in a variety of handheld, lavalier, instrument and headset configurations, it's the most accessible way to own the stage.
Rack-mountable and featuring rugged metal construction, the BLX4R offers simple setup and intuitive controls. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. Removable antennas allow for quick antenna distribution. For use with BLX Wireless Systems. Instrument cable connects a 1/4" jack to a 4-pin mini-connector for bodypack transmitters.
Rack-mountable and featuring rugged metal construction, the BLX4R offers simple setup and intuitive controls. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. Removable antennas allow for quick antenna distribution. For use with BLX Wireless Systems. Instrument cable connects a 1/4" jack to a 4-pin mini-connector for bodypack transmitters.
Shure BLX14R Wireless Rack-mount Guitar System Features:
- Up to 12 compatible systems per frequency band (region dependent.)
- Microprocessor-controlled internal antenna diversity.
- One-touch QuickScan frequency selection quickly locates the best frequency.
- 1/4" and XLR audio outputs.
- Two color audio status indicator LED.
- Green: Normal audio levels.
- Red: Excessive audio levels (overload / clipping.)
- Adjustable output level.
- Removable antennas for quick antenna distribution.
- LCD display with detailed RF and audio metering.
- Rugged metal construction, rack mount hardware included.
- Power and battery status LED.
- Adjustable gain control.
- Quick & easy frequency matching.
- 2 AA batteries provide up to 14 hours of continuous use.
- 300 feet (91 m.)
Shure BLX14R Specifications:
SystemWorking Range: 91 m (300 ft) Line of Sight (Actual range depends on RF signal absorption, reflection and interference.)
Audio Frequency Response: 50 to 15,000 Hz (Dependent on microphone type)
Total Harmonic Distortion (Ref. ±33 kHz deviation with 1 kHz tone): 0.5%, typical
Dynamic Range: 100 dB, A-weighted, typical
Operating Temperature: -18°C (0°F) to 57°C (135°F) (Battery characteristics may limit this range.)
Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
BLX1
Audio Input Level:
max: -16 dBV maximum
min (0 dB): +10 dBV maximum
Gain Adjustment Range: 26 dB
Input Impedance: 1 MΩ
RF Transmitter Output: 10 mW, typical (varies by region)
Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight: 2.6 oz. (75 g), without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)
Audio Input Level:
0dB: -20 dBV maximum
-10dB: -10 dBV maximum
Gain Adjustment Range: 10 dB (varies by region)
Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
Weight: 7.7 oz. (218 g) without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline Battery Life: up to 14 hours (alkaline)
BLX4R
Output Impedance:
XLR connector: 200 Ω
6.35 mm (1/4") connector: 50 Ω
Audio Output Level: (Ref. ±33 kHz deviation with 1 kHz tone)
XLR connector: –27 dBV (into 100 kΩ load)
6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
Weight: 8.5 oz. (241 g)
Housing: Molded ABS
Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
Each BLX14R Retail Box Includes:

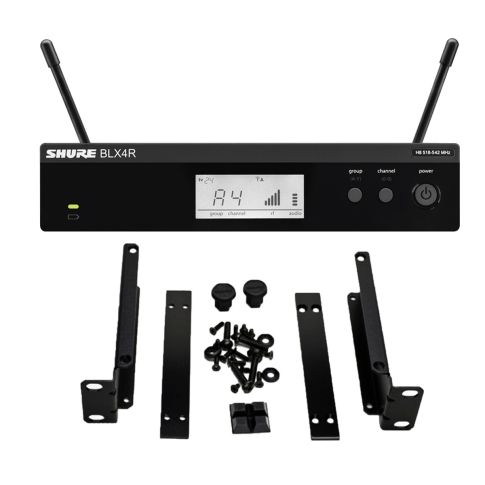

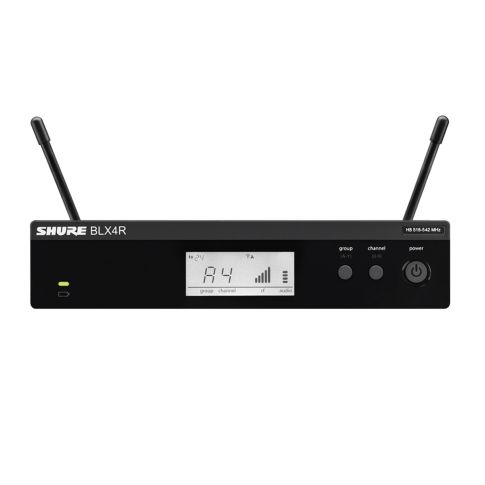

(1) BLX4R Wireless Receiver
(1) BLX1 Bodypack Transmitter
(2) AA Batteries

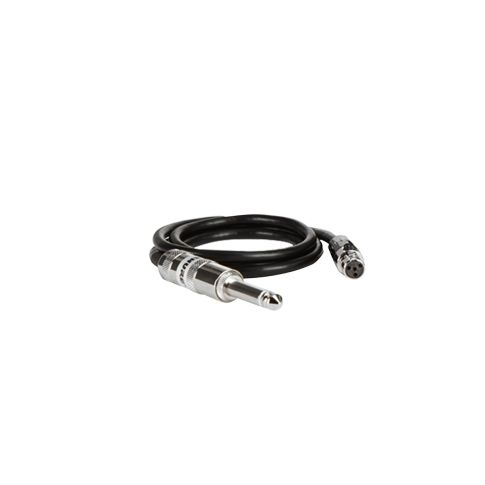

(1) WA302 Instrument Cable

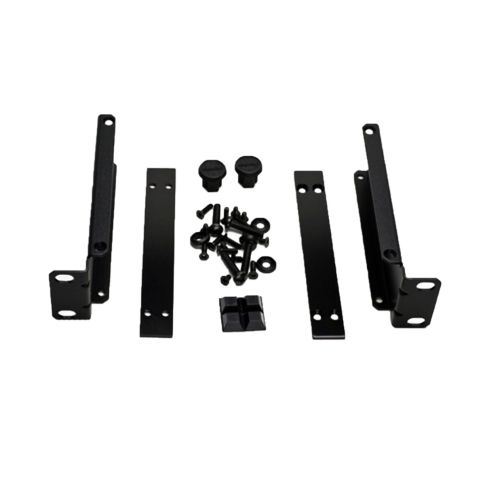

(1) 53A8611 Rack Mount Bracket
(1) 53A8612 Long Rack Mount Bracket
(1) 53B8443 Link Bracket
(1) 90AZ8100 Hardware Kit
(2) 95A8699 Antenna/BNC,1/4 Wave
(2) 95A8994 Adapter, Bulkhead, BNC
(1) 95B2313 Bag Vinyl, Zippered
(2) 95K2035 Cable, BNC, 22"
(1) Power supply
