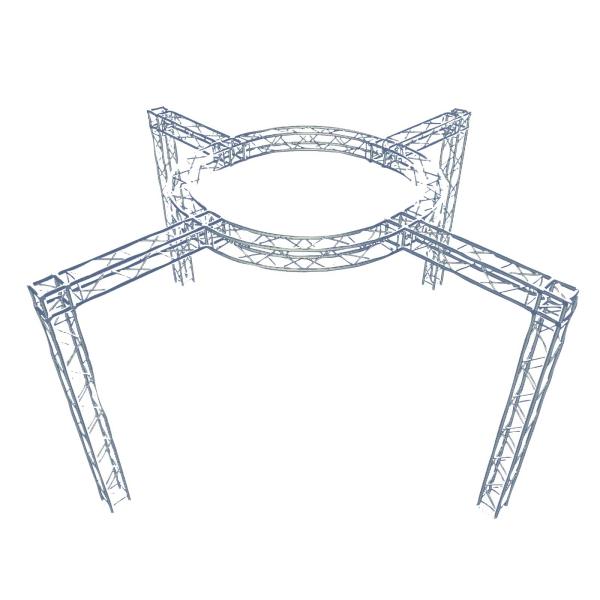

ProX XT-SQ984 9.84ft Square Truss Segments with 8.20FT Segments & 6.56 FT Square Frame Circular Truss Display System Package
Reg.
$10,639.75
Now
$8,599.99
You save
$2,039.76
Reg.
You save
Selling Fast
Key Highlights
- Tolerance Free Standard Conical connector.
- Main tube wall thickness of .08"
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|
ProX Truss has the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect formobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.
At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
The most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.
At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
- Tolerance Free Standard Conical connector.
- Main tube wall thickness of .08"
The most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.
At the heart of the system is square truss that utilize a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
- Tolerance Free Standard Conical connector
- Main tube wall thickness of .08in / 2mm
- Constructed to the highest safety ratings by certified welders
ProX XT-SQ984 Specifications
XT-SQ SERIES DIMENSIONS:Height: 11,42in / 290mm
Width: 11,42in / 290mm
Weight: ~5.0 lbs/ft / ~7.0/m
Main Tube: 2in / 50mm
Braces: .75in / 20mm
Material: EN-AWT6 6082 Aluminum
Actual Height: 9.84 ft. (3.00 Meter) Square Truss Segment
Actual Weight: 44 lbs.
Outside: 290mm - 11 7/16"
Tubing: 2"
Bracing: 3/4"
Includes connecting hardware set.
All ProX Truss products are 100% compatible to connect along with many other manufacturers.
Fits: Standard Square Truss Configurations.
Dimensions
12.00"Length (L) X 12.00" Width (W) X 118.08" Height (H)
Weight: 42.00 lbs
ProX XT-SQ820 Product Specifications:
Height: 11.42in / 290mmWidth: 11.42in / 290mm
Weight: ~5.0 lbs/ft / ~7.0/m
Main Tube: 2in / 50mm
Braces: .75in / 20mm
Material: EN-AWT6 6082 Aluminum
Actual Height: 8.2 ft (2.5 Meter) Square Truss Segment
Actual Weight: 36 lbs.
Outside: 290mm - 11 7/16"
Tubing: 2"
Bracing: 3/4"
Includes connecting hardware set.
All ProX Truss products are 100% compatible to connect along with many other manufacturers.
To Fit
Standard Square Truss Configurations.
Dimensions
12.00" Length (L) X 12.00" Width (W) X 98.40" Height (H)
Weight: 36.00 lbs
This Package Includes:
(4) ProX XT-SQ984 9.84ft (3.00m) Square Truss Segments(4) 8.20ft (2.50m) Square Truss Segments
(8) ProX XT-JB6W-2W 2 way Square Truss Junction Blocks
(1) ProX XT-CSQ656-4X90 6.56 FT Square Frame Circular Truss (4 Segments)
(8) ProX XT-CP-103P Half-Ended Conicals
(8) Connector Pins
(8) Safety Pins
(4) ProX XT-BP12A 12" x 12" F34 8mm Aluminum Top Plates with Slots and Mounting Holes for Totems
(4) Sets of connecting hardware
This Package Includes:
(4) ProX XT-SQ984 9.84ft (3.00m) Square Truss Segment(4) ProX XT-SQ820 8.20FT - 2.50M F34 Square Truss Segment | 2mm Wall
(8) ProX 2 Way Square Truss Junction Block [XT-JB6W-2W]
(1) ProX XT-CSQ656-4X90 6.56 FT Square Frame Circular Truss (4 Segments)
(4) ProX XT-CP-103P Half Conical Connector (Set of 4) for Truss Junction Blocks
(4) ProX XT-BP12A 12" x 12" F34 8mm Aluminum Top Plate with Slots and Mounting Holes for Totems
