Electro-Voice EKX-18SP 18” Powered Subwoofer Package
About This Product
Electro-Voice EKX-18SP 18” Powered SubwooferThe EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology – all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.
EV-engineered components, Signal Synchronized Transducers™ (SST) waveguide design, and Class D amplifiers (up to 1500 W) coupled with QuickSmartDSP all work together to provide precise coverage and superior sound quality at high SPLs. EV’s award-winning industrial design – with robust wood enclosures and durable EVCoat finish – ensures that EKX speakers look as great as they sound.
EKX-18SP Features:• QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
• Cardioid Control Technology allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed.
• High-efficiency 1300 W Class D power amplifier delivers up to 134 dB peak SPL on the EKX-18SP utilizing high-sensitivity transducers designed and engineered by EV.
• Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
• Two XLR outputs for easy system expansion to additional loudspeakers or subwoofers.
Electro-Voice EKX-18SP Specifications
|Connector Type||(2) XLR/TRS combo jacks and (2) XLR link outputs|
|Enclosure Material||15 mm, plywood with EVCoat|
|Frequency Response (-10 dB)||35 Hz - 180 Hz Half Space Measurement|
|Frequency Response (-3 dB)||40 Hz - 150 Hz Half Space Measurement|
|Grill||18 AWG steel with powdercoat|
|LF Transducer||EVS-18C 457 mm (18 in)|
|Low Pass Frequency||Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz|
|Maximum SPL||134 dB peak dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.|
|Power Consumption||1.8 A Current rating is 1/8 power|
|Power Rating||1300 W|
|Shipping Weight||41.2 kg (90.83 lbs)|
|Height||12RU 520 mm (20.47")|
|Width||606 mm (23.86")|
|Depth||612 mm (24.09")|
|Weight Net||32.8 kg (72.31 lbs)|
Ultimate Support JS-KC90 Specifications
Product Name: JS-KC90
Part Number: 17436
Capacity: 300 lbs. (136 kg)
Configurations: 8 Variations
Finish: Powder Coat, Black
Length: 27.5" - 44.25" (699mm - 1124mm)
Width: 17" (432mm)
Height: 24" (610mm)
Weight: 26 lbs. (11.8 kg)

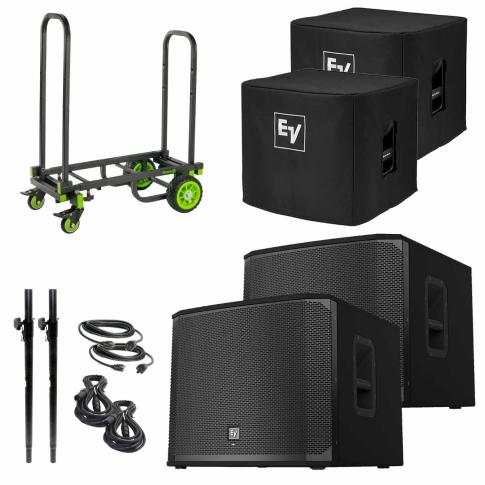

This Package Includes:(2) Electro-Voice EKX-18SP 18” Powered Subwoofers
(2) Electro-Voice EKX-18SP-CVR Padded Speaker Covers
(2) 20FT Sure-Fit XLR Connecting Cables
(2) IDJNow Black 10FT 16 Gauge AC Extension Cords
(2) Electro-Voice ASP-1 Height adjustable steel subwoofer stands
(1) Ultimate Support JS-KC90 Karma Cart Series Adjustable Professional Equipment Cart
Each EV EKX-18SP Box Includes:(1) Electro-Voice EKX-18SP 15” Powered Subwoofer
(1) Power Cord
(1) User Guide
