ADJ Dotz Par RGBL 16 x 3.5W RGBL C.O.B. LED Par Fixture 4-Pack with Utility Bags Package
SKU #: DOTZ-PAR-RGBL-4PK
Reg.
$1,312.61
Now
$1,010.40
Reg.
In Stock - Ships in 3-5 Days
Most orders placed by 3pm ET ship in 3-5 business days
Drawing on the popularity of Chip On Board (C.O.B.) LED from the Dotz Par fixture, the ADJ Lighting Dotz Par RGBL uses the latest advancements in lighting technology with a RGBL (red, green, blue, lime) C.O.B. LED for a smooth, even field, high CRI output, advanced color mixing and linear color temperature control from 2700K to 6500K.
The Dotz Par RBGL offers lighting designers a brilliant, even wash of light using the highly efficient Chip On Board (C.O.B.) with red, green, blue and lime LED chips. With the addition of lime, the Dotz Par RGBL offers a high CRI output, advanced color mixing, plus linear color temperature color 2700K to 6500K) with built-in preset color temperatures. Additionally, the fixture has 16-Bit fine color control with 64 built-in color macros and a beam output of 35-degrees.
ADJ Dotz Par RGBL 16 x 3.5W C.O.B. LED Par Fixture Features:
- Light Source: 16x 3.5-Watt RGBL C.O.B. LED.
- 35° Beam Angle.
- Linear Color Temperature Control (2700K to 6500K.)
- Preset Color Temperatures.
- 16-Bit Fine Color Control (Red, Green, Blue & Lime.)
- 64 built-in Color Macros.
- 4-button, DMX digital display on rear panel.
- 6 Operational modes.
- Plastic construction.
- IEC Locking, In/Out Power connectors.
- Indoor 3-pin, XLR DMX, In/Out sockets.
ADJ Dotz Par RGBL Product Specifications:
Source:
Light Source: 16x 3.5-Watt RGBL C.O.B. LED (4x Red, 4x Green, 4x Blue & 4x Lime)
20,000 Hours Rated Life
Photometric Data:
CRI: TBA
CRI R9: TBA
Lumens: 1250
Effects:
35° Beam Angle
Linear Color Temperature Control (2700K to 6500K)
Preset Color Temperatures
16-Bit Fine Color Control (Red, Green, Blue & Lime)
64 built-in Color Macros
Control:
4-button, DMX digital display on rear panel
6 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode, Wireless RF and DMX Controlled
Supports RDM (Remote Device Management)
With Wired Digital Communication Network
6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
1200Hz LED Refresh Rate
LED pulse and strobe effect
Electronic Dimming: 0 - 100%
Construction/Connections:
Plastic construction
IEC Locking, In/Out Power connectors
Indoor 3-pin, XLR DMX, In/Out sockets
Scissor Yoke
Electrical/Thermal:
Multi-voltage operation: AC 100-240V, 50/60Hz
Max Power LInk: 30 @120V., 57 @230V.
Max power consumption: 36W
Fuse protected: T1A/250V (5*20mm)
Dimensions & Weight:
Length: 5.19" (131.8mm)
Width: 8.23" (209mm)
Height: 8.72" (221.44mm)
Weight: 4.41lbs. / 2kg.
Approvals/Rating:
CE
ETL
CSA
IP20

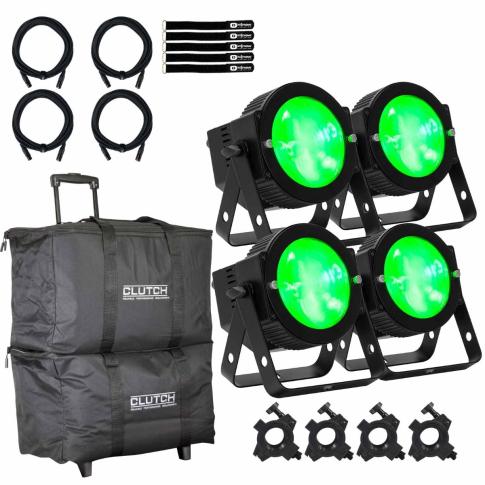

This Package Includes:
(4) ADJ Dotz Par RGBL 16 x 3.5W RGBL C.O.B. LED Par Fixtures
(4) Power Cords
(4) Lens Kits
(1) Clutch CL-TOTE221711 Utility Bag with Interior Divider
(1) Clutch CL-TOTE221711R Utility Bag with Divider, Telescoping Handle & Wheels
(4) Clutch 10' 3-Pin DMX Lighting Cables, XLR3-M to XLR3-F
(4) Clutch Universal O-Clamps with Snug-Fit 360 Degree Wraps fits 1.5" to 2" tubing in black
(5) 8" Reusable Hook and Loop Cable Ties
This Package Includes:
(4) ADJ Dotz Par RGBL 16 x 3.5W RGBL C.O.B. LED Par Fixture(1) Clutch CL-TOTE221711 Utility Bag with Divider
(1) Clutch CL-TOTE221711R Utility Bag with Divider + Telescoping Handle & Wheels
(4) Clutch 10' 3-Pin DMX Lighting Cable
(4) Clutch Universal O-Clamp with 360 Degree Snug-Fit Grip fits 1.5 to 2" tubing (black)
(1) 5 Pack of 8" Reusable Hook & Loop Cable Tie Organizers
