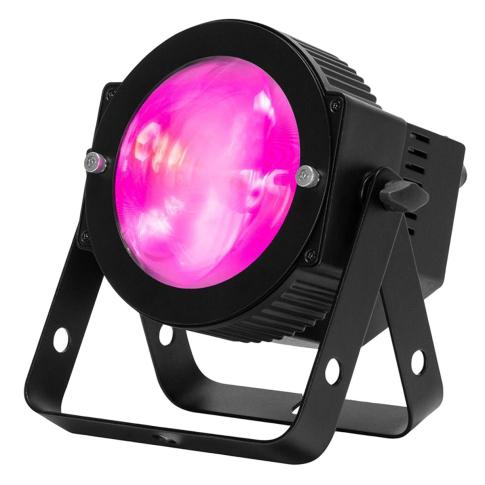

ADJ Dotz Par RGBL 16 x 3.5W RGBL C.O.B. LED Par Fixture
$249.99
Reg.
You save
In Stock | Free Shipping
Key Highlights
- Light Source: 16x 3.5-Watt RGBL C.O.B. LED.
- 35° Beam Angle.
- Linear Color Temperature Control (2700K to 6500K.)
- Preset Color Temperatures.
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|
Drawing on the popularity of Chip On Board (C.O.B.) LED from the Dotz Par fixture, the ADJ Lighting Dotz Par RGBL uses the latest advancements in lighting technology with a RGBL (red, green, blue, lime) C.O.B. LED for a smooth, even field, high CRI output, advanced color mixing and linear color temperature control from 2700K to 6500K.
The Dotz Par RBGL offers lighting designers a brilliant, even wash of light using the highly efficient Chip On Board (C.O.B.) with red, green, blue and lime LED chips. With the addition of lime, the Dotz Par RGBL offers a high CRI output, advanced color mixing, plus linear color temperature color 2700K to 6500K) with built-in preset color temperatures. Additionally, the fixture has 16-Bit fine color control with 64 built-in color macros and a beam output of 35-degrees.
ADJ Dotz Par RGBL 16 x 3.5W C.O.B. LED Par Fixture Features:
- Light Source: 16x 3.5-Watt RGBL C.O.B. LED.
- 35° Beam Angle.
- Linear Color Temperature Control (2700K to 6500K.)
- Preset Color Temperatures.
- 16-Bit Fine Color Control (Red, Green, Blue & Lime.)
- 64 built-in Color Macros.
- 4-button, DMX digital display on rear panel.
- 6 Operational modes.
- Plastic construction.
- IEC Locking, In/Out Power connectors.
- Indoor 3-pin, XLR DMX, In/Out sockets.
ADJ Dotz Par RGBL Product Specifications:
Source:
Light Source: 16x 3.5-Watt RGBL C.O.B. LED (4x Red, 4x Green, 4x Blue & 4x Lime)
20,000 Hours Rated Life
Photometric Data:
CRI: TBA
CRI R9: TBA
Lumens: 1250
Effects:
35° Beam Angle
Linear Color Temperature Control (2700K to 6500K)
Preset Color Temperatures
16-Bit Fine Color Control (Red, Green, Blue & Lime)
64 built-in Color Macros
Control:
4-button, DMX digital display on rear panel
6 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode, Wireless RF and DMX Controlled
Supports RDM (Remote Device Management)
With Wired Digital Communication Network
6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
1200Hz LED Refresh Rate
LED pulse and strobe effect
Electronic Dimming: 0 - 100%
Construction/Connections:
Plastic construction
IEC Locking, In/Out Power connectors
Indoor 3-pin, XLR DMX, In/Out sockets
Scissor Yoke
Electrical/Thermal:
Multi-voltage operation: AC 100-240V, 50/60Hz
Max Power LInk: 30 @120V., 57 @230V.
Max power consumption: 36W
Fuse protected: T1A/250V (5*20mm)
Dimensions & Weight:
Length: 5.19" (131.8mm)
Width: 8.23" (209mm)
Height: 8.72" (221.44mm)
Weight: 4.41lbs. / 2kg.
Approvals/Rating:
CE
ETL
CSA
IP20
Each Dotz Par RGBL Retail Box Includes:
(1) ADJ Dotz Par RGBL 16 x 3.5W RGBL C.O.B. LED Par Fixture
(1) Power Cord
(1) Lens Kit
