Chauvet DJ GigBAR 2 Complete Effect Light System with Fog & DMX Controller Duo Package
About This Product

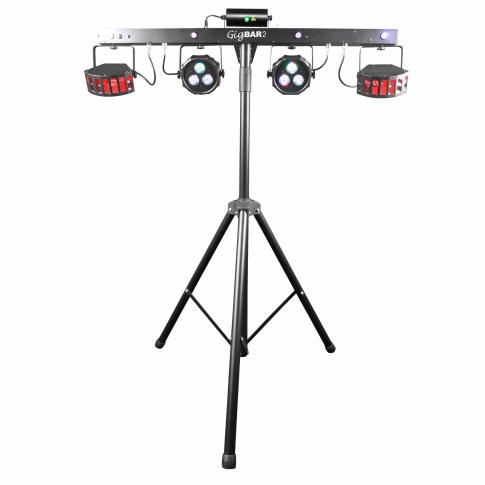

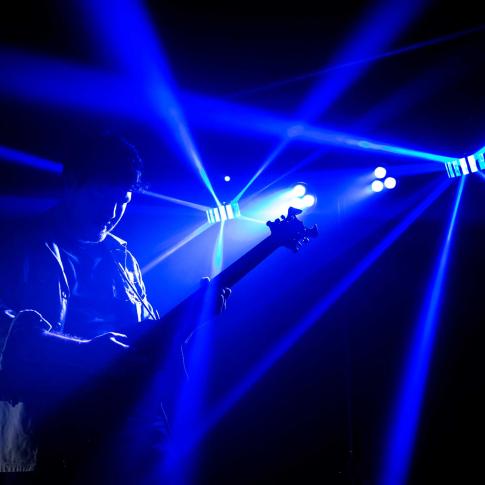

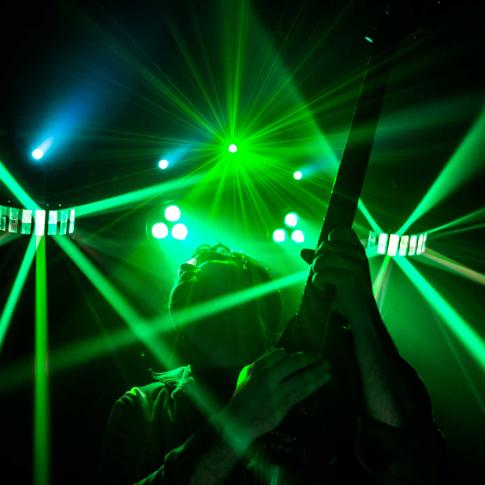

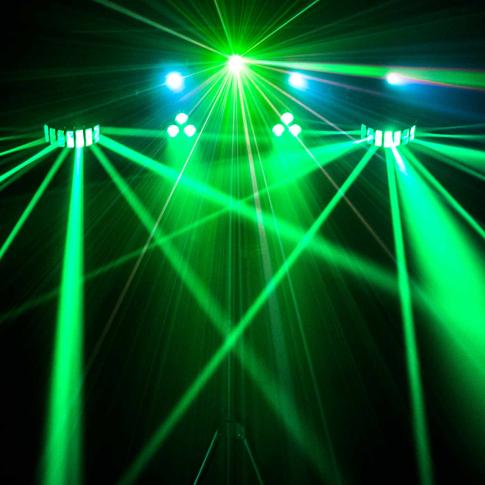

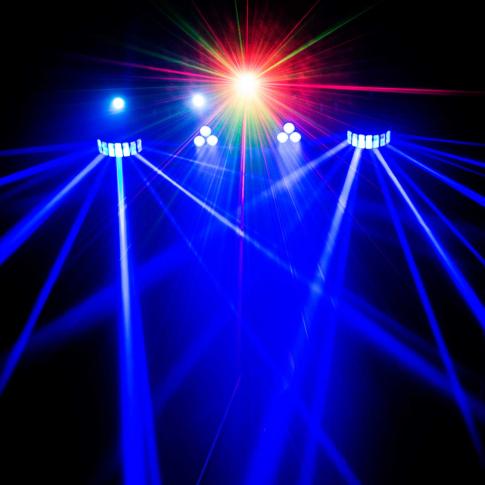

Chauvet DJ GigBAR 2 4-in-1 Complete Effect Light System
GigBAR 2 adds to the original ultimate pack and go 4-in-1 light by including UV in its pars and strobes for increased color mixing and effects. GigBAR 2 includes a pair of LED Derby fixtures, LED pars, a laser, and 4 high-power, LED strobe lights all mounted on one bar. 4 individually adjustable and interchangeable heads let you cover any room or stage. GigBAR 2 strobes allow you to create exciting chase and slow-motion effects and the adjustable red and green laser scatters hundreds of bright dots and beams in all the right directions. Phenomenal built in automated and sound-activated programs are on board that include all 4 effects to make one complete show and you can easily control the unit from the display, IRC, wireless foot switch or DMX to take your gig to a higher level. Master/slave multiple units under the control of a single IRC or wireless foot switch and save time running cables and extension cords by power linking multiple units. GigBAR 2 is ready for every application using the included mounting brackets to attach to truss. Get in and get out quickly with the included tripod, wireless footswitch and FREE carry bags.
GigBAR 2 features:
- 4-in-1 light that includes a pair of LED Derby, LED pars, a laser, and strobe effect all mounted on one bar.
- Added UV in pars and strobes for increased color mixing and effects.
- Cover any room or stage with 4 individually adjustable and interchangeable heads.
- Get in and get out quickly with the included tripod, wireless footswitch and FREE carry bags.
- Ready for every application using the included mounting brackets to attach to truss.
- 4 high-power, LED strobe lights create exciting chase and slow motion effects.
- Adjustable red and green laser scatters hundreds of bright dots and beams in all the right directions.
- Phenomenal built in automated and sound-activated programs that include all 4 effects to make one complete show.
- Easily control from the display, IRC, wireless foot switch or DMX to take your gig to a higher level.
- Master/slave multiple units under the control of a single IRC or wireless foot switch.
- Save time running cables and extension cords by power linking multiple units.

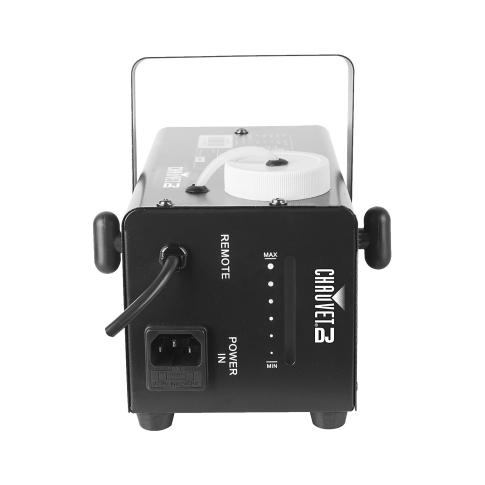

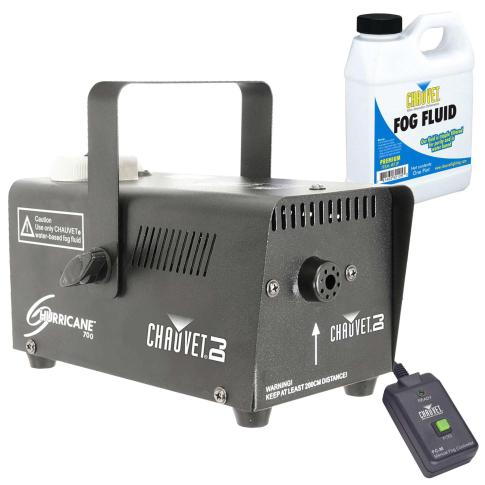

Chauvet DJ Hurricane 700 Fog Machine
The Hurricane Series Foggers provide the quality, performance and innovation for which Chauvet is known. All come with generous-capacity tanks and quick heat up of water-based fog to fill a venue within minutes.
Hurricane 700 Features:
- Compact, lightweight fog machine emits thick bursts of water-based fog to enhance any light show.
- Ready to use right out of the box by including a wired remote control and free pint of water-based fog fluid.

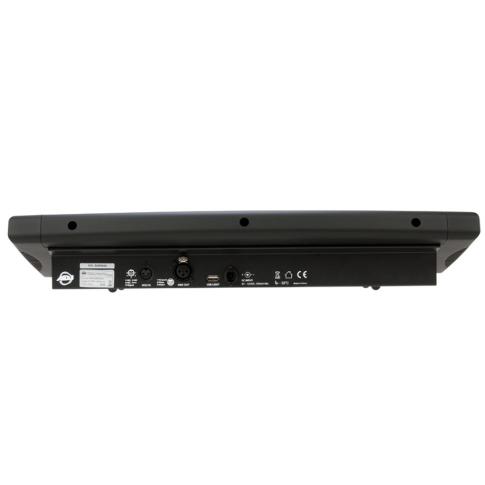

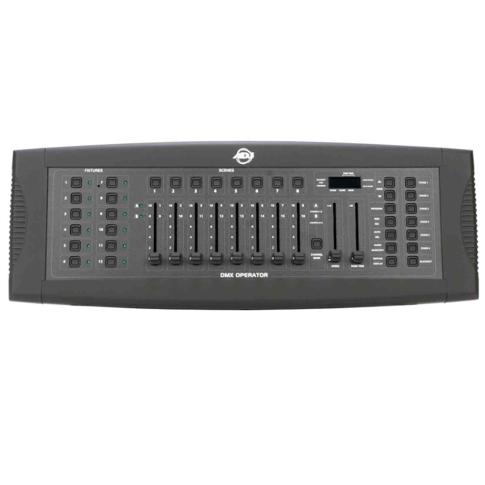

American DJ DMX Operator
ADJ's DMX Operator Controller has 12 individual fixture channels which allow you to control up to 12 separate intelligent lights with up to 16 DMX channels per fixture and any fixtures with less than 16 DMX channels can be combined on one channel which gives you 192 DMX channels to do what ever you want with.
With ADJ's DMX Operator Controller you can record up to 6 programmable chases with fade times and different speeds. The 8 individual faders provided you with easy programmability for the intelligent light or dimmer packs that you may have. ADJ also included a USB input for your convenience to save your programs and settings or use it to power an USB work light. The blackout is controlled by the MIDI input signal.
Chauvet DJ GigBAR 2 Specifications
- DMX Channels: 3, 11 or 23
- DMX Connectors: 3-pin XLR
- Light Source: (pars): 6 LEDs (Quad-color RGB+UV) 3.5 W (1.1 A), 50,000 hours life expectancy
- (strobe): 4 LEDs (white & UV) 1.8 W (600 mA), 50,000 hours life expectancy
- (Derby): 6 LEDs (2 red, 2 green, 2 blue) 6 W (1.7 A), 50,000 hours life expectancy
- 650nm/100 mW (red) laser diode, 532nm/30 mW (green) laser diode
- Strobe Rate: (strobe): 0 to 18 Hz
- Beam Angle: (pars): 13°
- (strobe): 8°
- Field Angle: (pars): 24°
- (strobe): 18
- Coverage Angle: (laser): 93°
- (Derby): 114°
- Fits Tripod Size: 37.4 mm
- Illuminance: (pars): 1,205 lux @ 2 m (per head)
- (strobe): 86 lux @ 2 m (per zone)
- Power Linking: 8 units @ 120 V; 15 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 68 W, 1 A @ 120 V, 60 Hz
- 64 W, 0.5 A @ 230 V, 50 Hz
- Weight: 6.6 kg
- Size: 1185 x 110 x 386.5 mm
- Approvals: CE, FDA, FCC
- Stand Height: 1.5 to 2.5 m
- Tripod leg width: 1.2 m
- Foot Switch Operating Frequency: 433 MHz
- Foot Switch Max Unobstructed Distance: 30.5 m
- Included Remote: IRC-6
Chauvet DJ Hurricane 700 Specifications
- Tank Capacity: 0.2 gal (0.6 L)
- Remote Length: 13 ft (4 m)
- Heat-up Time: 2.5 min
- Output: 1,500 cfm
- Fluid Consumption: 7.5 ml/min
- Input Voltage: 120 VAC, 60 Hz; 230 V, 50 Hz
- Power and Current: 471 W, 3.9 A @ 120 V, 60 Hz
- Weight: 4 lb (1.8 kg)
- Dimensions: 8.5 x 7.1 x 4.9 in (215 x 180 x 124 mm)
- Approvals: CE
ADJ DMX Operator Specifications
- Programmable up to 240 scenes.
- 12 individual fixture channels - Control up to 12 separate intelligent lights with up to 16 DMX channels per fixture.
- Fixtures with less than 16 DMX channels may be combined on 1 DMX scanner button.
- Record up to 6 programmable chases with fade time and speeds.
- 8 individual faders provide easy programmability for Intelligent Lighting or Dimmer Packs.
- MIDI controllable.
- DMX-512, 3-pin XLR signal.
- Built-in Microphone.
- Remote control: Blackout controlled by MIDI input signal.
- Blind function - override chases on the fly.
- Use in conjunction with the ELP-DMX20 or the ELD-DMX20.
- Polarity switch to accommodate different types of cable requirements.
- Power input: DC 9V-12V, 220 mA min. power supply included.
- Dimensions: 5.25" x 19" x 2.5" (133 x 483 x 64 mm) 19 in. rack mount - 3 rack spaces.
- Weight: 5 lbs (2.3 kgs).
- Voltage: 120V/220V.
This Package Includes:
(2) Chauvet DJ GigBAR 2 4-in-1 Complete Effect Light Systems
(1) Chauvet DJ Hurricane 700 Fog Machine
(1) American DJ DMX Operator Lighting Controller
(2) 25' Sure-fit DMX connecting cables
Each GigBAR 2 Box Includes:
(1) GigBAR 2
(1) IRC-6 remote control
(1) Power Cord
(1) Wireless Footswitch with Battery
(1) VIP Tripod Stand Gear Bag with compartment for the footswitch
(1) Tripod Stand
(1) Warranty Card
(1) User Manual
The Chauvet DJ Hurricane 700 Box Includes:
(1) Hurricane 700 Fog Machine
(1) Pint of Fog Fluid
(1) Power Cord
(1) Warranty Card
(1) Quick Reference Guide
(1) Permanently Wired Remote
The DMX Operator Box Includes:
(1) American DJ DMX Operator Programmable DMX Controller
(1) Power Cord
(1) User Manual
