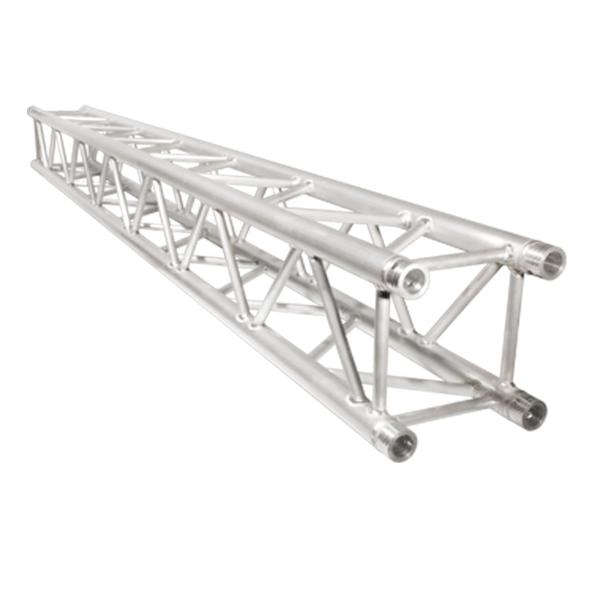

Trusst 3m (9.84 FT) Straight Section [CT290-430S]
About This Product
Trusst 3m (9.84 ft) Straight Section [CT290-430S]Trusst is comprised of modular aluminum components that combine to create nearly limitless configurations. 3 meters (9.84 ft) truss stick for a multitude of applications when used in combination with Trusst Corners, Base Plates, Accessories and Clamps.
Trusst CT-290 series 290 mm box truss is available in a variety of lengths from 0.25 m to 3 m (0.8 – 9.84 ft) to suit most design demands. All Trusst sticks are TUV certified and all Trusst items are fabricated by SLV certified welders and made from 6082-T6 alloy aluminum. Trusst products use a standard conical connection system which allows for quick assembly while maintaining sound structural stability. Trusst works seamlessly with other major brands that utilize the same conical connection.
CT290-430S Features:• Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup.
• Independently tested and TUV-certified for safety and uniformity.
• Carefully crafted by SLV-certified welders.
• Compatible with many TRUSST® accessories to create an astonishing and custom presentation.
• Available in many lengths for mobile entertainers, productions, nightclubs and retail stores.
• Includes connecting hardware.
Trusst CT290-430S Specifications
Length: 3 m (9.84 ft)
Outer diameter tube: 2 in (50 mm)
Dimensions: 11.42 x 11.42 in (290 x 290 mm)
Diagonal bracing: 0.75 in (20 mm)
Centerpoint load: 3,036 lbs (1,377 kg)
Distributed load: 6,075 lbs (2,756 kg)
Wall thickness: 0.08 in (2 mm)
Weight: 38.58 lbs (17.5 kg)
Approvals: TUV, SLV
The CT290-430S Box Includes:(1) Trusst 3m (9.84 ft) Straight Section [CT290-430S]
(1) Set of connectors
