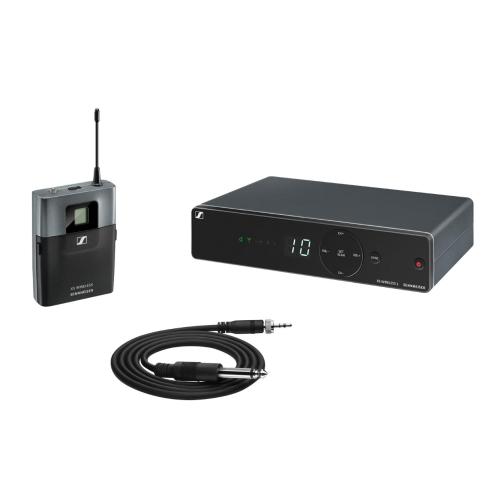

Sennheiser XSW-1-CI1-A Wireless Instrument Set with Receiver & Transmitter - Frequency Range: A (548 - 572 MHz)
Questions? Call 1-800-355-7746 or Chat below
Free Shipping on most orders with minimum purchase of $50 or more for a limited time.
Ground shipments only in the lower 48 contiguous United States.
Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.
Any questions, please call 1-800-355-7746 during normal business hours.
Offer subject to change or termination without notice. Not responsible for typographical errors.
The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.
I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700
I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100
Sennheiser XSW-1-CI1-A Wireless Instrument Set Features:
- Compact bodypack transmitter, rugged instrument cable.
- Antenna-switching diversity reception.
- Integrated antennas.
- Automatic frequency management and synchronization via remote channel for easy setup.
- Selectable UHF frequencies within a large bandwidth.
- Up to 10 compatible channels.
Sennheiser XSW-1-CI1-A Product Specifications:
Dimensions: Receiver: approx. 200 x 42 x 127 mm / Bodypack transmitter: approx. 71 x 96 x 28 mmTHD, total harmonic distortion: ≤ 0.9%
Weight: approx. 340g (receiver), approx. 95g (transmitter)
Signal-to-noise ratio: ≥ 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Operating time: approx. 10 hrs
Modulation: Wideband FM
Power supply: Receiver: 12 V DC nom. / 300 mA / Transmitter: 2 AA size batteries, 1.5 V
Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: Rugged ABS housing
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Frequency range A: 548-572 MHz, GB: 606-630 MHz
Sensitivity: < 3 µV at 52 dB(A)rms S/N
SPL for peak deviation: 130 dB
Squelch: adjustable from 3 dBµV to 28 dBµV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
AF frequency response: Receiver: 50 to 16,000 Hz (-3 dB)
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range: operation: 0°C to +40°C, storage: -20°C to +70°C
Receiver Principle: double superheterodyne
Diversity principle: Antenna switching diversity via internal antennas
Each XSW-1-CI1-A Retail Box Includes:
(1) Sennheiser Receiver EM-XSW 1(1) Sennheiser Bodypack transmitter SK-XSW
(1) Sennheiser Instrument cable Cl1
(1) Power supply NT 12-5 CW
(2) AA batteries
