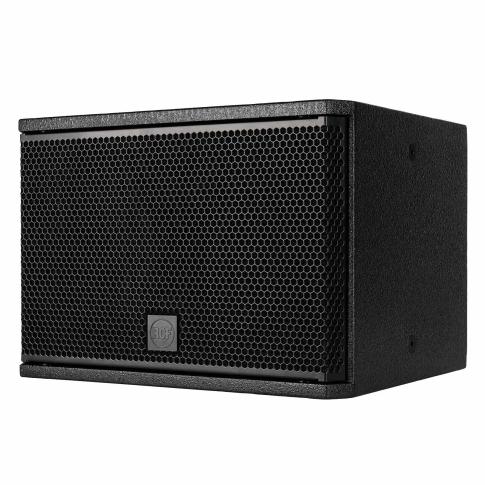

RCF S 10 Passive 1600W 10" Bass Reflex Subwoofer

SKU #: SUB-S10
$939.00
Item Backordered

Expected August 31, 2025

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

S 10 is a high power, compact subwoofer system ideal for those installations where the physically small size and impact of a 10" driver are desired. Extending the frequency response of these systems to below 50Hz this highly efficient design is capable of providing output levels normally associated with considerably larger enclosures. A system suited to background music playback in applications ranging from clubs, bars and cafes, right through to theatres and AV presentations. The low-frequency transducer is a 10" woofer with a 2.5" voice coil. Woofer design is the result of the latest refinements in RCF experiences in compact active and passive subwoofer design, resulting in a fast and controlled reproduction of the bass frequency range.

RCF subwoofers are the first choice of many sound engineers, due to their very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, and impressive size/weight to SPL output ratio. Your audience will enjoy an engaging immersive musical experience. The low-frequency transducers are a 10", 12" and a 15" high-power woofers, both with a 2.5" voice coil. Their design is the result of the latest refinements in compact subwoofers production, resulting in a fast and controlled reproduction of the bass frequency range. Elegant design aesthetic, multiple formats and RCF signature sound quality that allows to deliver a supreme audio experience in any application, from restaurant and retail shops to clubs, corporate spaces and venues. Music helps engagement and will improve the hospitality of your activity, especially if the perceived sound quality is higher. This is the aim of RCF SUB S Series - optimal performance in both background music and high-powered foreground audio.

RCF S 10 Passive 10" Bass Reflex Subwoofer Features:

  • 400 W RMS power handling.
  • 124 dB max SPL.
  • 50 ÷ 200 Hz frequency range.
  • 1 x 10" high power woofer.
  • High quality plywood cabinet.
  • Steel front grille with clothing.
  • M20 standard pole mount in top section of cabinet.
  • 4 pole EUROBLOCK connector (audio input and parallel link output).

RCF S 10 Product Specifications:

Acoustical Specifications
Frequency Response (-10dB): 45 Hz ÷ 200 Hz
Max SPL @ 1m: 124 dB
System Sensitivity: 92 dB

Power Section
Amplification: Full Range
Nominal Impedance: 8 ohm
Power Handling: 400 W RMS
Peak Power Handling: 1600 W PEAK
Recommended Amplifiers: DMA 162, DMA 162P, DMA 504, IPS 1.5K, IPS 2.5K, QPS 6.0K

Transducers
Woofer: 1 x 10", 2.5" v.c

Input/Output Section
Input connectors: Euroblock
Output connectors: Euroblock

Standard Compliance
Safety agency: CE compliant

Physical Specifications
Cabinet/Case Material: Plywood
Hardware: 12 x M10
Pole mount/Cap: M20 thread
Grille: Steel with clothing
Color: Black

Size/Weight
Height: 318 mm / 12.52 inches
Width: 450 mm / 17.72 inches
Depth: 360 mm / 14.17 inches
Weight: 19.6 kg / 43.21 lbs

Shipping Information
Package Height: 368 mm / 14.49 inches
Package Width: 405 mm / 15.94 inches
Package Depth: 495 mm / 19.49 inches
Package Weight: 22.2 kg / 48.94 lbs

Each S 10 Retail Box Includes:

(1) RCF S 10 Passive 1600W 10" Bass Reflex Subwoofer
