RCF SUB 702-AS II 12” Powered Subwoofer
About This Product
RCF SUB 702-AS II 12” Active Subwoofer
Ultra-compact bass reflex subwoofer with integrated DSP
Housing a 12” woofer, the SUB 702-AS II, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to 8” or 10” speakers, creating small but powerful satellite systems with outstanding performance. Thanks to its compact size it can easily be carried and is very quick and easy to start using the built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the satellite.
SPL – high power output
Superior and incredible SPL levels guaranteed also in open air and at long distance.
The built-in digital stereo crossover with adjustable crossover frequency allows SUB 702-AS II to be easily and quickly set up as a sub-satellite speaker system.
Compatible with RCF professional speakers
The SUB 702-AS II is designed to integrate seamlessly into RCF professional speakers. The bass reflex design guarantees a deep, linear power response while the 2.5’’ voice coil design woofer offers the minimum of power compression. SUB 702-AS II is the perfect match for 8”, 10” or 12” satellite speakers. It is also the ideal companion subwoofer for the RCF ART 3, ART 7 or D-Line Series.
Deep bass sound
Two selectable equalizations to experience the extremely deep response and precise low frequency control.
These attributes make it the perfect tool to increase the low-end performance in a raft of situations, including portable and installed audio-visual systems, live sound, small theaters, houses of worship and surround sound presentations.
SUB 702-AS II Features:
- 1400 Watt Digital Amplifier.
- 12" Woofer, bass reflex housing.
- Stereo crossover.
- Switchable crossover frequencies.
- Phase-reverse switch.
- Electronic equalization, soft limiter and protection.
- Stereo XLR input, Stereo XLR signal output.
SUB 702-AS II Applications:
- Club sound, DJs.
- Portable PA.
- Small theatre.
RCF SUB 702-AS II Specifications
- Frequency Response -3 dB: 40 Hz ÷ 120 Hz
- Max SPL: 129 dB

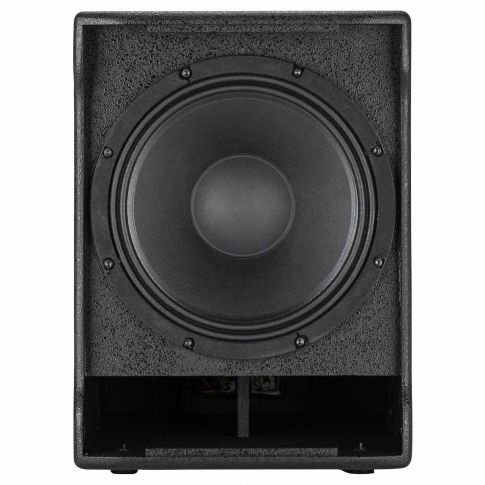

- Woofer: 12", 2.5" v.c.
- Input connectors: Stereo XLR
- Output connectors: Stereo XLR
- Input sensitivity: -2 dBu / + 4 dBu
- Crossover frequencies: 80-110 Hz Hz
- Protections: thermal, rms
- Limiter: soft limiter

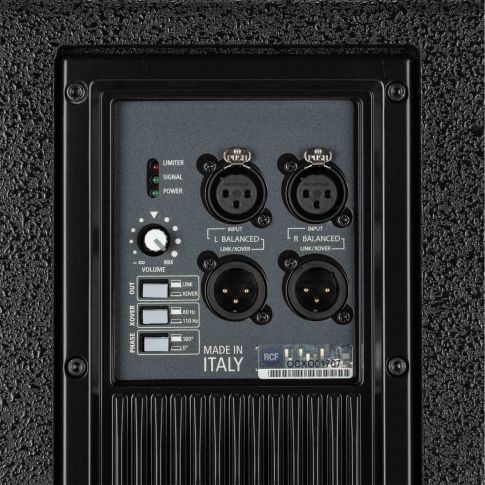

- Controls: Volume, EQ, phase, xover
- Total power: 1400 W PEAK
- Low frequencies: 1400 W PEAK
- Total power: 700 W RMS
- Low frequencies: 700 W RMS
- Cooling: convection
- Connections: VDE connector
- Cabinet Material: Baltic birch plywood

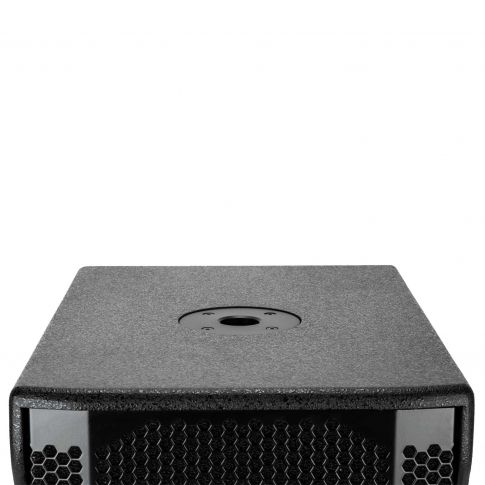

- Hardware: Pole mount

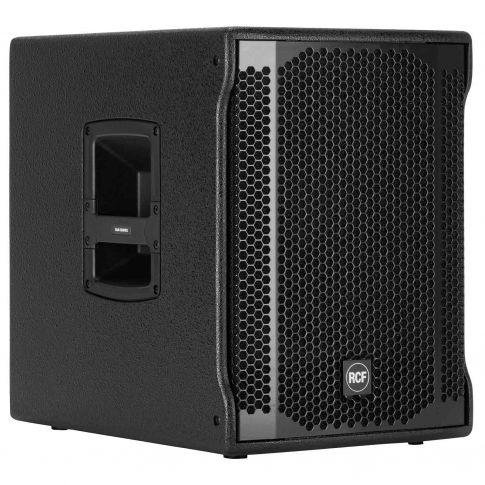

- Handles: 2 side
- Pole Mount/Cap: yes

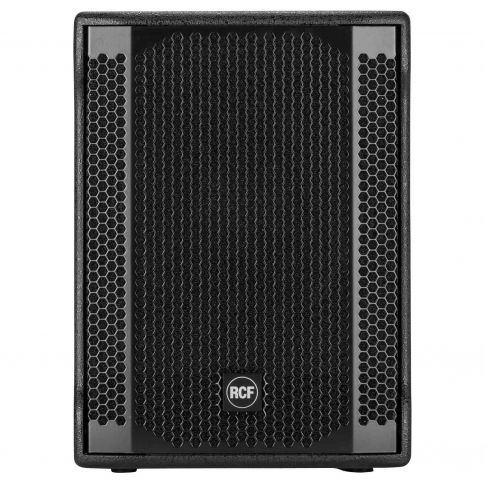

- Grille: Steel
- Colour: Black
- Height: 487/19.17 mm/inch
- Width: 354/13.94 mm/inch
- Depth: 498/19.61 mm/inch
- Net Weight: 17.5/38.58 kg/lbs
The SUB 702-AS II Box Includes:
(1) RCF SUB 702-AS II 12” Active Subwoofer
(1) Power Cord
(1) User Guide
