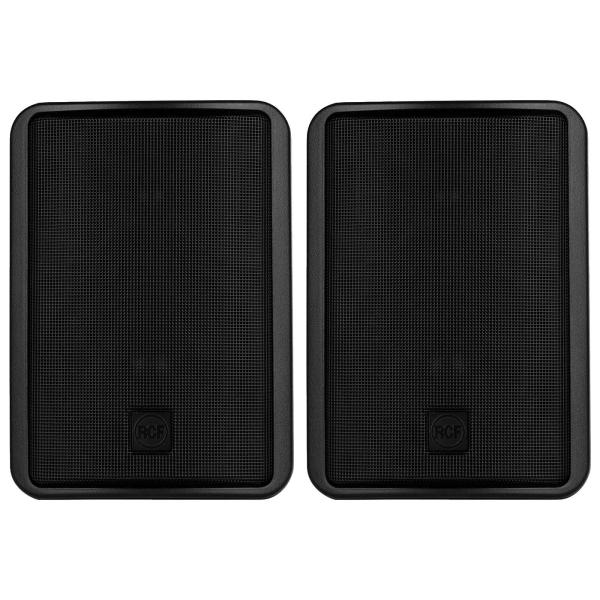

RCF MR 40 Pair of Passive 160W 4" Two-Way Bass Reflex Speakers - Black
Expected June 30, 2026
- 40 W (8 ohm) power handling.
- 108 dB max SPL.
- 70 ÷ 20000 Hz frequency range.
- 110° x 100° coverage angles.
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
MR 40 is a bass-reflex two-way speaker designed to deliver uncompromised audio performance and high reliability in fixed installations. Blend in with any environment and deliver deep bass, smooth midrange, and finely-detailed high-frequency response. Quality components and careful acoustic design make the MR 40 the perfect speaker for listening in demanding applications. Suitable for indoor and outdoor installation. Elegant and discreet design, combined with an excellent audio performance, represent the RCF sound. MR speakers are ideal both for speech and music reproduction in any business and A/V application and deliver deep bass, smooth midrange, and finely-detailed high-frequency response.
Housed in a robust plastic cabinet, the MR series delivers uncompromising audio performance and reliability in fixed installations where the speakers would blend into any environment. MR speakers are easy to install, with included and optional accessories to increase installation flexibility for wall mounting. Quality components and careful acoustic design make the MR series a perfect choice for applications such as speech and music reproduction in all A/V applications. Designed for easy installation into bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls or audio monitoring facilities. All models use purpose-designed 1" voice coil woofers and 0.8" voice coil dome tweeters, combined with RCF Low Inductance Compensated Crossover (LICC) to assure exceptional audio performance and long-term reliability.
RCF MR 40 Passive 4" Two-Way Speakers - Black Features:
- 40 W (8 ohm) power handling.
- 108 dB max SPL.
- 70 ÷ 20000 Hz frequency range.
- 110° x 100° coverage angles.
- 1 x 4" woofer (1" v.c.).
- 1 x 1" dome tweeter (0.8" v.c.) neodymium magnet.
- Color black RAL 9005.
- IP 55 protection grade.
- Swivel Wall mount accessory included.
- 4 pole EUROBLOCK connector.
RCF MR 40 Product Specifications:
Acoustical Specifications
Frequency Response (-10dB): 70 Hz ÷ 20000 Hz
Max SPL @ 1m: 108 dB
Horizontal coverage angle: 110°
Vertical coverage angle: 100°
Directivity index Q: 7
System Sensitivity: 86 dB
Power Section
Nominal Impedance: 8 ohm
Power Handling: 40 W
Peak Power Handling: 160 W PEAK
Protections: Bulb lamp
Crossover Frequencies: 3000 Hz
Transducers
Dome Tweeter: 1 x 1.0" neo, 0.8" v.c
Woofer: 1 x 4.0", 1.0" v.c
Input/Output Section
Input connectors: Euroblock
Output connectors: Euroblock
Standard Compliance
IP protection grade: IP 55
Safety agency: CE compliant
Physical Specifications
Cabinet/Case Material: Plastic
Hardware: Wall mount bracket
Grille: Aluminium
Color: Black - RAL 9005
Size/Weight
Height: 216 mm / 8.5 inches
Width: 154 mm / 6.06 inches
Depth: 135 mm / 5.31 inches
Weight: 2.2 kg / 4.85 lbs
Shipping Information
Package Height: 285 mm / 11.22 inches
Package Width: 400 mm / 15.75 inches
Package Depth: 235 mm / 9.25 inches
Package Weight: 5.3 kg / 11.68 lbs
Each MR 40 Retail Box Includes:
(2) RCF MR 40 Passive 160W 4" Two-Way Bass Reflex Speakers - Black
