RCF CR 16-ND Control Rack (Includes RDNET8 and DX-1616)
Questions? Call 1-800-355-7746 or Chat below
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.

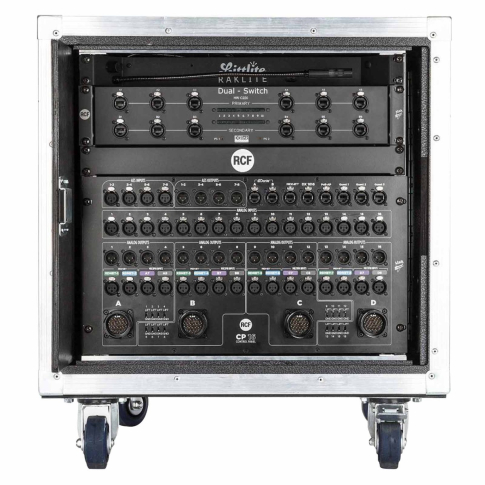

The CR 16-ND is a 10 Unit flight case designed to control the HDL 50-A line array system. The CR 16-ND includes one Control 8 that manages the RDNet connection to up to 256 devices, one DX 1616 matrix processor that takes care of audio signals routing and processing and one CP 16 control panel to bring audio and control signals to 4 x LK 25 multipin outputs. Each LK 25 has four audio channels, two RDNet channels and two spare sends. Each signal is doubled to XLR redundant outputs. Dual Switch not included. Ask RCF and adapt the System to your networking protocol.
RCF CR 16-ND Control Rack (with RDNET8 & DX-1616) Features:
- 10 RU flight case on shock mounts.
- DX 1616 matrix audio processor.
- CONTROL 8 master unit.
- CP16 control panel.
- 16 analog audio inputs, 16 analog audio outputs.
- 8 AES/EBU inputs - 8 AES/EBU outputs.
- Dante input.
- 4 x LK 25 multicore audio/RDNet outputs.
RCF CR 16-ND Control Rack Product Specifications:
General Specifications
Rack Unit: 10
Analog Audio Inputs: 16
Analog Audio Outputs: 16
AES/EBU Inputs/Outuputs: 8
Dante Input: Yes
Master Unit: 8
RDNet: Yes
Standard Compliance
Safety agency: CE compliant
Size/Weight
Weight: 57 kg / 125.66 lbs
Shipping Information
Package Height: 570 mm / 22.44 inches
Package Width: 610 mm / 24.02 inches
Package Depth: 630 mm / 24.8 inches
Package Weight: 59 kg / 130.07 lbs
Each CR 16-ND Control Rack Retail Box Includes:
(1) RCF CR 16-ND Control Rack (Includes RDNET8 and DX-1616)
