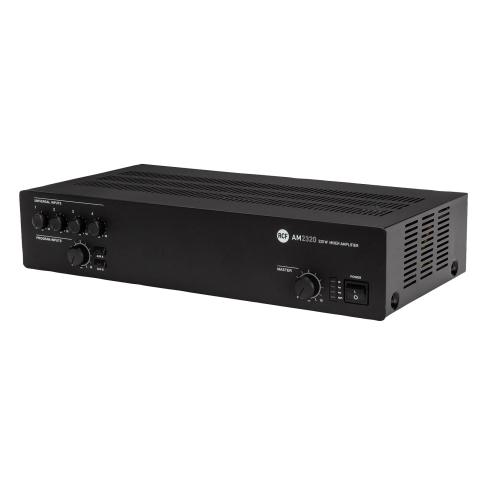

RCF AM 2320 5-Input Digital Mixer Amplifier
SKU #: AM2320
$1,659.00
Reg.
Item Backordered
Expected May 31, 2026
AM 2320 is a mixer-amplifiers with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). The nominal power: is a 320 W amplifier. The amplifier output is available either for low impedance loudspeakers or 100 - 70 V constant voltage line.
RCF AM 2320 5-Input Digital Mixer Amplifier Features:
- Full digital technology Mixer Amplifier 320 W RMS.
- 100 V - 70 V and 4 Ohm outputs.
- 4 universal inputs with phantom facility on screw terminal connections.
- Presence Control and per-channel High-Pass filters.
- XLR connector on input 1.
- RJ45 connectors on input 2 and 3 for connection to BM3001 microphone.
- Configurable Priority settings, VOX facility on input 1.
- Selectable aux inputs with two keys on the front panel for music source.
- Aux inputs with volume and tone controls.
- DigMusic On Hold and PRE outputs.
RCF AM 2320 Product Specifications:
Amplifier Specifications
Output Power: 1 x 320 W @ 4 ohm
Frequency Response (-3dB): 50 Hz ÷ 14 Hz
Distortion (THD+N) @ 1 kHz nominal power: <0.3 %
Input Section
Total number of inputs: 8
Balanced: 7
Unbalanced: 2
Mono: 7
Stereo: 2
Line inputs: 2
Line connectors: RCA
Mic+Line inputs: 4
Mic+Line connectors: Euroblock, XLR
Mic+Line Phantom: 32 V DC
VOX: Yes
Paging inputs: 2
Paging connectors: RJ45
Paging command: Contact
General Purpose Inputs (GPI): 2
Output Section
Signal output number: 2
Signal output connectors: RCA
Power output connectors: Euroblock
Processing
Tone controls: Yes
High-pass filter: 150 Hz
Configuration and Control
Configuration: DIP switch, Front panel
Priority: Yes
Music on hold: Yes
Chime tone: Yes
Protections
Cooling: Convection
Short circuit: Yes
Thermal: Yes
DC: Yes
Fuses: Yes
Power Requirements
Operating voltage: 220-240/115 V~ 50/60Hz
Voltage selection: Internal
Power consumption (MAX): 600 W
Standard Compliance
Safety agency: CE compliant
Physical Specifications
Cabinet/Case Material: Metal
Color: Black
Rack mounting: 19", 2U
Size/Weight
Height: 88 mm / 3.46 inches
Width: 442 mm / 17.4 inches
Depth: 230 mm / 9.06 inches
Weight: 5.4 kg / 11.9 lbs
Shipping Information
Package Height: 200 mm / 7.87 inches
Package Width: 500 mm / 19.69 inches
Package Depth: 330 mm / 12.99 inches
Package Weight: 6 kg / 13.23 lbs
Each AM 2320 Retail Box Includes:
(1) RCF AM 2320 5-Input Digital Mixer Amplifier
