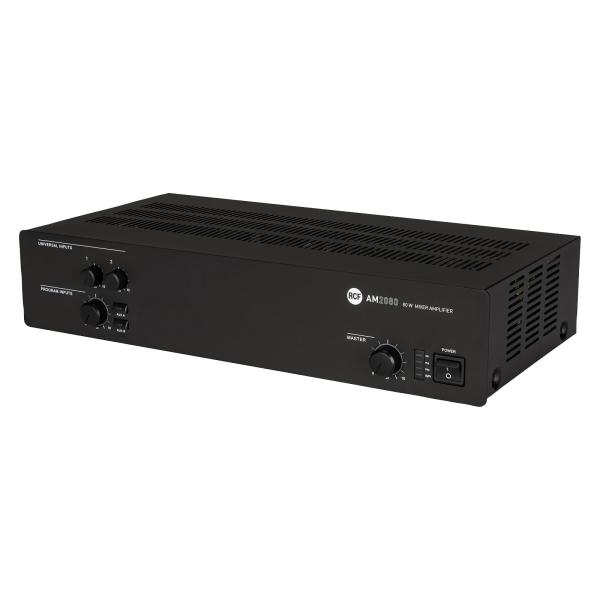

RCF AM 2080 2-Input Digital Mixer Amplifier
$869.00
Reg.
You save
Backordered
Expected June 30, 2026
Key Highlights
- Full digital technology Mixer Amplifier 80 W RMS.
- 100 V - 70 V and 4 Ohm outputs.
- 2 universal inputs with phantom facility on screw terminal connections.
- XLR connector on input 1.
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|
AM 2080 is a mixer-amplifiers with 2 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). The nominal power: is a 80 W amplifier. The amplifier output is available either for low impedance loudspeakers or 100 - 70 V constant voltage line.
RCF AM 2080 2-Input Digital Mixer Amplifier Features:
- Full digital technology Mixer Amplifier 80 W RMS.
- 100 V - 70 V and 4 Ohm outputs.
- 2 universal inputs with phantom facility on screw terminal connections.
- XLR connector on input 1.
- RJ45 connectors on input 2 for connection to BM3001 microphone.
- Configurable Priority settings, VOX facility on input 1.
- Selectable aux inputs with two keys on the front panel for music source.
- Aux inputs with volume and tone controls.
- Music On Hold and PRE outputs.
- Digital Chime and Siren built-in generator.
RCF AM 2080 Product Specifications:
Amplifier Specifications
Output Power: 1 x 80 W @ 4 ohm
Frequency Response (-3dB): 50 Hz ÷ 16 Hz
Distortion (THD+N) @ 1 kHz nominal power: <0.3 %
Input Section
Total number of inputs: 5
Balanced: 5
Unbalanced: 1
Mono: 4
Stereo: 2
Line inputs: 2
Line connectors: RCA
Mic+Line inputs: 2
Mic+Line connectors: Euroblock, XLR
Mic+Line Phantom: 30 V DC
VOX: Yes
Paging inputs: 1
Paging connectors: RJ45
Paging command: Contact
Output Section
Signal output number: 2
Signal output connectors: RCA
Power output connectors: Euroblock
Processing
Tone controls: Yes
High-pass filter: 150 Hz
Configuration and Control
Configuration: DIP switch, Front panel
Priority: Yes
Music on hold: Yes
Chime tone: Yes
Protections
Cooling: Convection
Short circuit: Yes
Thermal: Yes
DC: Yes
Fuses: Yes
Power Requirements
Operating voltage: 220-240/115 V~ 50/60Hz
Voltage selection: Internal
Power consumption (MAX): 160 W
Standard Compliance
Safety agency: CE compliant
Physical Specifications
Cabinet/Case Material: Metal
Color: Black
Rack mounting: 19", 2U
Size/Weight
Height: 88 mm / 3.46 inches
Width: 442 mm / 17.4 inches
Depth: 230 mm / 9.06 inches
Weight: 3.77 kg / 8.31 lbs
Shipping Information
Package Height: 200 mm / 7.87 inches
Package Width: 330 mm / 12.99 inches
Package Depth: 500 mm / 19.69 inches
Package Weight: 5.38 kg / 11.86 lbs
Each AM 2080 Retail Box Includes:
(1) RCF AM 2080 2-Input Digital Mixer Amplifier
