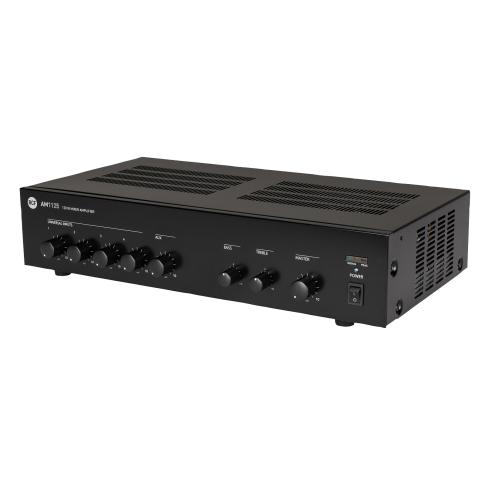

RCF AM 1125 120W 5-Channel Digital Mixer Amplifier

RCF AM 1125 120W 5-Channel Digital Mixer Amplifier

SKU #: AM1125
$799.00
Item Backordered

Expected May 31, 2026

Same Day
Shipping
Best Deal
Guarantee
Authorized
Dealer
Real Gear
Experts

AM 1125 is a 120W mixer-amplifier with 5 audio inputs. Audio input 1 has phantom power supply and get the priority over the other audio inputs through an external command or automatically thanks to the VOX circuit. Dual RCA connectors can be used to link stereo (unbalanced) sound sources (e.g. CD, MP3 players, tuners, etc.). The amplifier output is available both for low impedance loudspeakers (min. 4 Ohm) or 70/100 V constant voltage lines (for loudspeakers with 70/100 V line transformers). It can also be powered by batteries (24 V dc voltage), in order to ensure its proper operation even when the mains supply is unavailable.

RCF AM 1125 120W 5-Channel Mixer Amplifier Features:

  • 160 W power amplifier.
  • 4 mic-line inputs and 1 AUX IN.
  • VOX facility and phantom power supply on INPUT 1.
  • Low and high impedance spekers output.
  • Dual RCA connectors for INPUT 4 and AUX IN.
  • Ducking control on AUX IN level.
  • AUX output on RCA connector.
  • Common tone controls on front panel.
  • 24 V dc power supply (batteries).

RCF AM 1125 Product Specifications:

Amplifier Specifications
Output Power: 1 x 120 W @ 4 ohm
Output power @ 100 V: 1 x 120 W @ 100 V
Frequency Response (-3dB): 60 Hz ÷ 15000 Hz
SNR Analog inputs ("A" weighted): >85 dB
Crosstalk: <85 dB
Distortion (THD+N) @ 1 kHz nominal power: <1.5 %

Input Section
Total number of inputs: 5
Line inputs: 1
Line connectors: RCA
Mic+Line inputs: 4
Mic+Line connectors: RCA, XLR
Mic+Line Phantom: 18 V DC
VOX: Yes
Paging connectors: XLR
General Purpose Inputs (GPI): 1

Output Section
Signal output number: 1
Signal output connectors: RCA
Power output connectors: Euroblock

Processing
Tone controls: Yes

Configuration and Control
Configuration: Front panel

Protections
Cooling: Convection
Short circuit: Yes
Thermal: Yes
DC: Yes
Fuses: Yes

Power Requirements
Operating voltage: 220-240/115 V~ 50/60Hz
Voltage selection: External
DC power: Yes
DC power value: 24 V
Power consumption (MAX): 350 W

Standard Compliance
Safety agency: CE compliant

Physical Specifications
Cabinet/Case Material: Metal
Color: Black
Rack mounting: 19", 2U

Size/Weight
Height: 88 mm / 3.46 inches
Width: 431 mm / 16.97 inches
Depth: 385 mm / 15.16 inches
Weight: 7.3 kg / 16.09 lbs

Shipping Information
Package Height: 165 mm / 6.5 inches
Package Width: 500 mm / 19.69 inches
Package Depth: 380 mm / 14.96 inches
Package Weight: 8.5 kg / 18.74 lbs

Each AM 1125 Retail Box Includes:

(1) RCF AM 1125 120W 5-Channel Digital Mixer Amplifier
