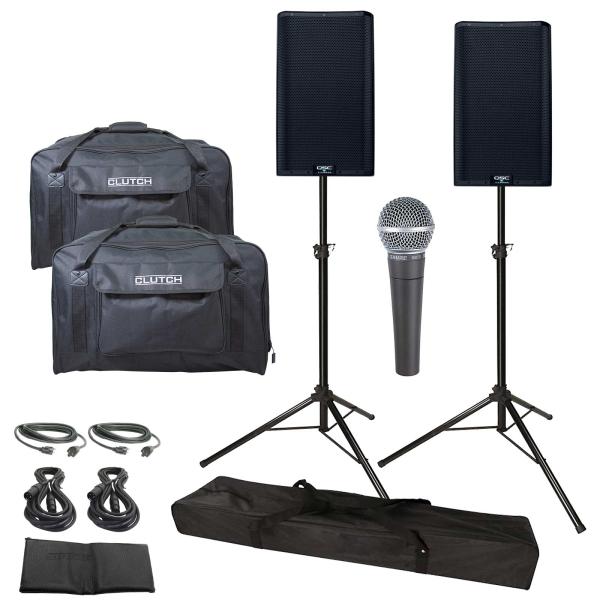

QSC K12.2 K2 Series 12" Two-Way 2000W Active Speakers with Tripod Stands and Carry Cases Package
- Best in class audio performance.
- 2000 Watt Class-D amplifier module.
- Factory Presets and savable/recallable Scenes for commonly-used applications such as Stage Monitor, Dance Music, Musical Instrument Amplification, Hand-held Microphone and more.
- Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contours.
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
QSC K12.2 Powered Loudspeaker features at glance:
- Best in class audio performance.
- 2000 Watt Class-D amplifier module.
- Factory Presets and savable/recallable Scenes for commonly-used applications such as Stage Monitor, Dance Music, Musical Instrument Amplification, Hand-held Microphone and more.
- Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contours.
- Intrinsic Correction tuning and loudspeaker management.
- DMT (Directivity Matched Transition) design provides excellent power response and consistent performance across the listening area (75-, 90-, 105-degree, K12.2, K10.2, K8.2).
- Refined, professional appearance looks great in any application.
- Rugged ABS enclosure for long life and lasting durability.
- Deployment in either main PA or floor monitor position.
- Dual pole cup mounts (straight-firing and 7.5 degree down-tilt).
- M10 fittings for flown applications.
- Optional security panel prevents unauthorized tampering of controls.
- 6-Year Warranty with product registration.
- Presets: The user may select may select from an extensive list of factory preset EQ contours including Live, Dance, Monitor, and many more.
- Scenes: Savable and recallable Scenes can store information like user EQ, Delay, and input configuration settings.
- Outputs: In addition to the two throughput XLRs, a line-level output with the mixed signal from all inputs is also provided. (An optional security cover (K-LOC) may be installed to prevent unauthorized tampering of settings).
Shure SM58 Vocal Microphone
Legendary vocal microphone, tuned to accentuate the warmth and clarity of lead and back-up vocals. The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise. Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.SM58 Features:
- Frequency response tailored for vocals, with brightened midrange and bass rolloff.
- Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise.
- Pneumatic shock-mount system cuts down handling noise.
- Effective, built-in spherical wind and pop filter.
- Supplied with break-resistant stand adapter which rotates 180 degrees.
- Legendary Shure quality, ruggedness and reliability.
- Cardioid (unidirectional) dynamic.
- Frequency response: 50 to 15,000 Hz.
- Replacement cartridge: R59.
QSC K12.2 K2 Series Two-Way 12" Powered Loudspeaker Specifications
Coverage:DMT (Directivity Matched Transition) design matches the coverage angle of the woofer at the cross-over frequency with the horn pattern to ensure uniform response across the coverage area. Intrinsic Correction techniques are also employed ensuring smooth power response from the loudspeaker. The result is an extremely accurate loudspeaker that behaves well in a wide range of acoustic spaces with little or no equalization.
Applications
The K.2 Series has been primarily designed for portable audio reinforcement. This includes a variety of uses in reinforcement for entertainers and presenters. All are designed to perform well on their own in full-range audio. They can be used singly, in stereo pairs or in distributed or delayed systems. They perform extraordinarily well as both main reinforcement systems and as floor monitors.All three models are equipped with two 35 mm pole sockets that allows use on a speaker stand or on a pole over a subwoofer. (The subwoofer must have a 35 mm pole socket capable of supporting the loudspeakers.) One socket is for vertical mounting, the other for tilting the enclosures down 7.5 degrees. In addition, the K.2 Series have features designed for various suspension methods. They feature two M10 threaded inserts for suspension with eyebolts and a built-in pull-back ring. There are also yoke accessories (model numbers: K8.2 YOKE, K10.2 YOKE, K12.2 YOKE) for each model that can mount either to the sides of the cabinet or to the top and bottom. These yokes allow for rigid mounting to structures and rotation of the speaker system.
Configuration: Multi-purpose, 2-way powered loudspeaker
LF Transducer: 12" (305 mm), cone
HF Transducer: 1.4" (35.6 mm) titanium diaphragm compression driver
Frequency Response (-6 dB): 50 Hz - 20 kHz
Frequency Range (-10 dB): 45 Hz - 20 kHz
Nominal Coverage Angle: 75° Axisymetric
Maximum Rated SPL1: 130 dB @1 M, peak 124 dB @ 1 M, continuous
Amplifier: Class D
Peak: 1800 W (LF), 225 W (HF)
Cooling: Low-noise, variable speed fan
Controls:
Power
3 x Level
Rotary encoder (push)
2 x selection buttons
Indicators:
Monochrome LCD Display 1.75" x 1" (45 mm x 25.4 mm)
2 x Power LED (front and rear)
3 x Input Signal LED
Input A Mic selected LED
Input B Hi-Z selected LED
Limiter active LED
Connectors:
2 x locking XLR/F ¼" combo (Mic/Line Input and Hi-Z/Line Input
1 x 3.5 mm TRS (Stereo Input)
2 x XLR/M (Loop-thru Output)
1 x XLR/M (Mix Output)
1 x locking IEC power connector
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8th Power: 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
Enclosure Details: Impact Resistant ABS
Attachment Points: 2 x M10 threaded inserts plus Pull-Back
Color: Black (RAL 9011)
Grille: 18 Gauge powered coated steel, internal cloth lining
Dimensions (HxWxD):
602 x 356 x 350 mm
23.7 x 14 x 13.8 in
Net Weight: 17.7 kg / 39 lbs
Shipping Weight: 21.7 kg / 47.8 lbs
Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Optional Accessories:
K12 Tote, K12 Outdoor Cover
M10 Kit-C, K.2-LOC LockOut Cover
K12.2 Yoke
Shure SM58 Specifications
| Type | Dynamic (moving coil) |
| Frequency Response | 50 to 15.000 Hz |
| Polar Pattern | Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency |
This Package Includes:
(2) QSC K12.2 K2 Series Two-Way 2000W Powered Loudspeakers with 12" Woofers(2) Locking AC Power cords
(2) White QSC Logos
(2) QSC Limited Warranty Information Cards
(2) Clutch CL-TOTE1200 Universal Medium Speaker Carry Tote/Bags
(2) 10FT 16 Gauge AC Extension Cords
(3) 20 FT Sure-Fit XLR Connecting Cables
(1) Clutch CL-STPACK Heavy Duty Professional Tripod Speaker Stands(1) Clutch Durable Tripod Speaker Stand Set Carry Bag
(1) Shure SM58 Vocal Microphone
(1) Swivel Stand Adapter
(1) Storage Bag
(1) Microphone Clip
(1) User Guide
This Package Includes:
(2) QSC K12.2 K2 Series Two-Way 2000W Powered Loudspeaker with 12" Woofer(2) Clutch CL-TOTE1200 Universal Medium Speaker Carry Tote/Bag
(3) Clutch 20' Sure-Fit XLR Female to XLR Male Microphone / Speaker Cable
(2) Clutch CL-EC16310 Black 10FT 16 Gauge AC Extension Cord
(1) Clutch CL-STPACK Heavy Duty Professional Tripod Speaker Stand Set with Carry Bag
(1) Shure SM58 Vocal Microphone
