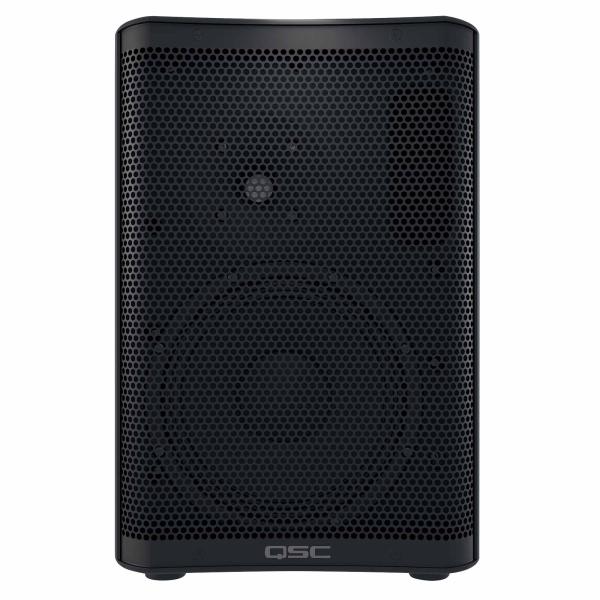

QSC CP8 CP Series 1000 Watt Compact 8" Powered Loudspeaker
About This Product
High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.
The first thing you will notice about the CP Series is its compact design - every line, angle and curve working harmoniously to present a stylish, yet rugged, appearance. Inside, CP is equipped with a highly-efficient, 1000-watt power amplifier, matching transducers and advanced DSP, delivering performance beyond expectations for a loudspeaker of this size.
Because of its compact size, CP is remarkably lightweight, making it easy to load, carry, lift and deploy in a wide range of portable and installed applications. Entertainers of all kinds, as well as educators, institutions and houses of worship will appreciate the ability to mix up to three input sources (mic/line, line and music playback device) at once, making CP a great single-box PA system that sets up in seconds. As part of a larger system, CP can be deployed on a speaker pole, used as a floor monitor or as a musical instrument amplifier. System integrators will especially appreciate CP's lightweight and compact form factor when attaching it to a wall or truss (via optional yoke mount). And all users will enjoy one-touch DSP control with preset contours for the most common audio applications.
The CP Series compact, powered loudspeaker is protected by a global 3-year warranty.
QSC CP8 CP Series 1000 Watt Compact 8" Powered Loudspeaker Features:
- Compact and powerful performance.
- 1000 Watt peak power Class-D amplifier module.
- Easily selected contours for commonly-used applications.
- Advanced DSP with Intrinsic Correction for superior sound quality and speaker protection.
- Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area.
- Light weight and highly portable.
- Professional appearance looks great in any application.
- Use for main PA, stage monitor, or instrument amplifier.
- 35 mm pole socket.
- Optional yoke, tote, and outdoor cover accessories.
- Complete EASE and CAD information available online.
- 3-Year Warranty.
QSC CP8 Specifications:
|Configuration:||Two-way active loudspeaker|
|LF Transducer:||8 in (203 mm), cone|
|HF Transducer:||1.4 in (35.6 mm) compression driver|
|Frequency Response (-6 dB):||56 - 20 kHz|
|Frequency Range (-10 dB):||53 - 20 kHz|
|Nominal Coverage Angle:||90° Axisymetric|
|Maximum Rated SPL:||124 dB|
Peak: 800 W (LF), 200 W (HF)
2 x Gain
Mic Boost Push Switch
6-way Contour Selection Switch
2 x Input Signal LED
Input B MIC selected LED
Limiter active LED
|Connectors:||2 x locking XLR/F ¼" combo (Line Input and Mic/Line input)|
1 x 3.5 mm TRS (Stereo Input)
1 x XLR/M (Mix Output)
1 x IEC power connector
|AC Power Input:||Universal power supply 100 – 240 VAC, 50 – 60 Hz|
|AC Power Consumption 1/8th Power:||100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A|
|Attachment Points:||M10 threaded insert|
|Color:||Black (RAL 9011)|
|Grille:||18 Gauge powered coated steel|
|Dimensions (HxWxD):||16.2 x 10.7 x 10.1 in|
411 x 273 x 256 mm
|Net Weight:||21.0 lbs (9.5 kg)|
|Shipping Weight:||25.5 lbs (11.4 kg)|
|Regulatory:||EMC, UL, CB|
|Optional Accessories:||CP8 Tote, CP8 Outdoor Cover, CP8 Yoke|
