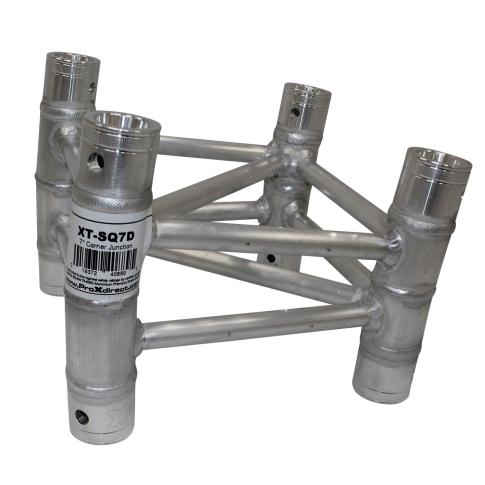

ProX XT-SQ7D 7.5 Degree F34 Series Square Truss Corner

In Stock - Ships in 1-2 Days

Most orders placed by 2pm ET ship in 1-2 business days

Only at IDJNOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

5000+ Reviews

5000+ Reviews

90%+5-star reviews

30-Day Returns

30-Day Returns

Don't Like it? Return it.

ProX XT-SQ7D 7.5 Degree Square Truss is a two way, fixed angle, corner connector that can be used singularly or in multiples to create angles and decorative designs not available with normal corner box units, while still maintaining excellent weight loading capabilities.

ProX Truss specializes in high-quality, general-purpose aluminum lighting and stage trussing designed for live stages, theaters, nightclubs, church installations, mobile applications, trade shows, and retail applications. These products are built using 6082-T6 aluminum alloy compositions. This lightweight, corrosion-resistant aluminum has a very high tensile strength, giving you the support and stability you need. The ProX truss conical coupling system allows for genderless trusses, providing a more precise line up of chords and fastening points, while the conical shape of the couplers helps to maintain overall rigidity at the stress points and makes parts harder to damage. This system also makes assembly quick and easy with very few tools needed to complete set up.

ProX XT-SQ7D Square Truss Corner Features:

  • Fabricated by certified TUV welders.
  • Equipped with connecting hardware.
  • Overall width-11 7/16" (290mm.)
  • Outer diameter tubing-2" (50mm.)
  • Diagonal bracing-3/4" (20mm.)
  • Wall thickness-0.08" (2mm.)
  • Unit weight-8 lbs.
  • Aluminum Alloy EN AW-6082 T6.
  • F34 Square Aluminum Truss.
  • Aluminum Brush Finish.
ProX Trussing provides high strength with exceptional quality control and excellent pricing.
  • ProX owns the factory, not generic trussing.
  • Built to exacting specifications.
  • TUV Certified Welding & Processes.
  • Compatible with most Conical Coupled F34 trussing.
  • Includes tapered shear pins with clips and 4 conical couplings.

ProX XT-SQ7D Specifications:

To Fit:
ProX, Global and GLP 12x12 Trussing

Shipping Dimensions:
13.50" L x 11.00" D x 13.50" H
Shipping Weight: 10.00 lbs


Each XT-SQ7D Retail Box Includes:
(1) ProX XT-SQ7D 7.5 Degree F34 Series Square Truss Corner
(4) Conical couplings
(1) Set of tapered shear pins with clips
